Locking
Adjusting nut

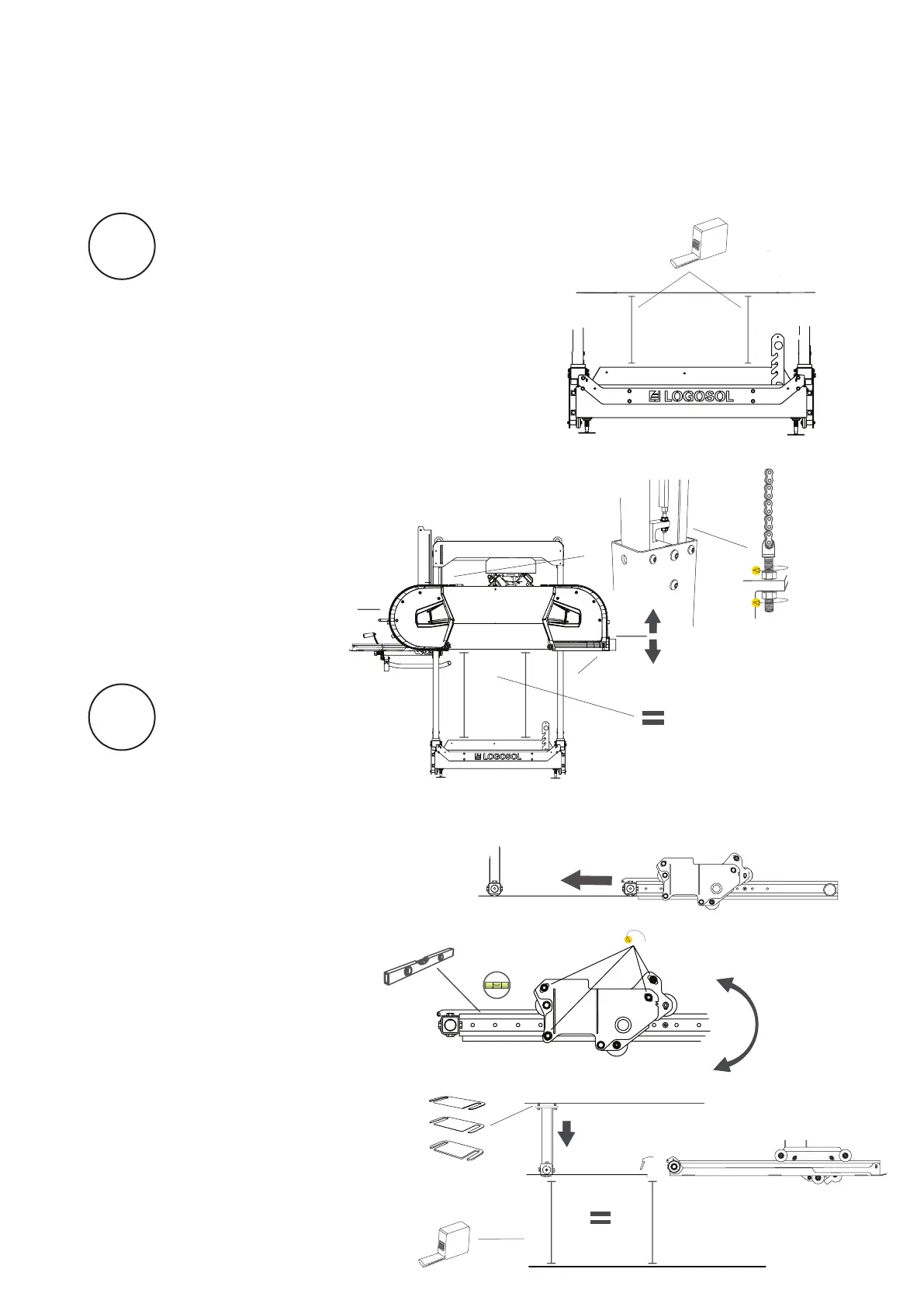

It is important for the saw blade to be parallel to the log beds to
ensure the proper functioning of the sawmill. Measure the distance
vertically down from the blade to the log bed, then note down the
values.
It is important for the blade guide rollers to be removed for this
setting operation.
Adjust the measurement difference between the measurement points.
Tighten the saw head adjusting screws until the measurements match
at both measurement points.
ADJUST THE SAW BLADE PARALLEL TO THE LOG BEDS
ADJUSTMENT SEQUENCE
The adjustable blade guide and guard
needs to be adjusted so as to achieve
straight kerfs in all positions. Install
the blade guide rollers. Then move the
blade guide and guard to its innermost
position. Place a spirit level on top of the
blade guide, then adjust until the blade
guide and guard is horizontal. When
this has been done, shim the fixed blade
guide roller until the same dimension
is achieved between the blade tension
rollers and the log bed.
ADJUST THE ADJUSTABLE BLADE GUIDE HORIZONTALLY
2 mm shims must be fitted to the saw
on delivery as standard.
Measurement point 1
Measurement point 2
