OTHER SETTINGS

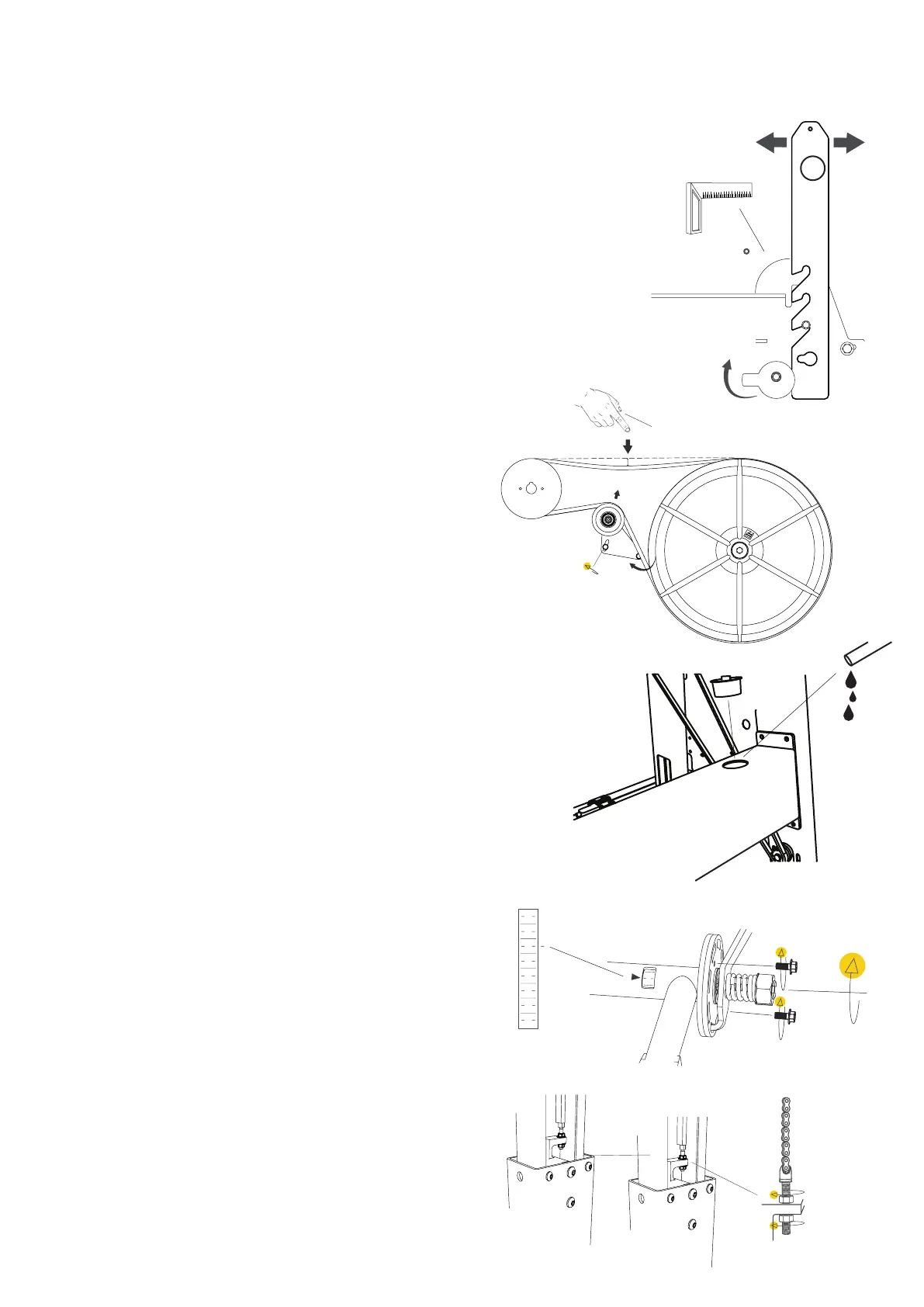

It is important for the relationship between the log bed and the log
support to be perpendicular to ensure the proper functioning of the
sawmill. This is adjusted by turning the adjustment handle in the lower
part of the log support. Check the perpendicularity using a set square.
LOG SUPPORT
The drive belt must be tensioned correctly to
prevent it wearing on the pulley. The tensioning
wheel can rotate around its lower attachment.
Tension the belt until the value stated below is
reached at the checkpoint.
DRIVE BELT TENSION
3 kg Pressure
Belt tension
6 mm Deflection
Checkpoint
OTHER SETTINGS
The sawmill water reservoir needs to be filled before use.
This is done in the tank opening on the back of the saw
carriage. The tank volume is 7.5 litres.
WATER RESERVOIR
The crank has to be adjusted for the gauge on the
crankshaft to work. This is done by lowering the
saw head to the bottom position and then releasing
the crank adjustment plate. Now raise the saw head
until a number on the crankshaft appears in front of
the pointer in the handle tube. Which number is of
no importance, as long as it is in the middle of the
pointer. Then tighten the screw joint. Complete the
assembly by tightening the chain adjusting screws
until the saw head rests once more on the stops in
the main post. Take care to ensure that both sides
are adjusted to exactly the same extent in order to
keep the blade parallel to the rail.
SET THE CRANK
