40

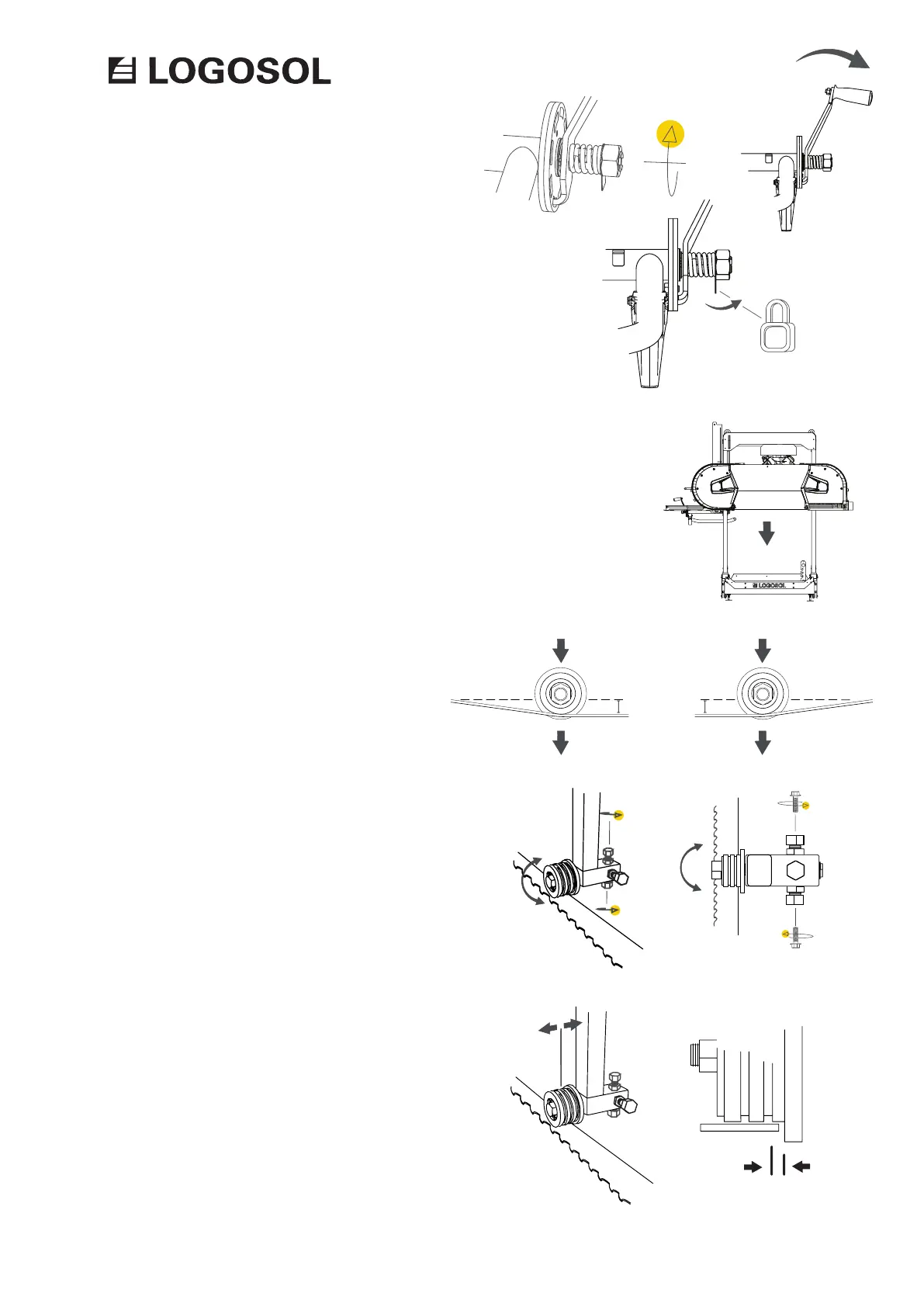

Tighten the lock nut in order to tension the
spring so that the handle snaps back easily
and locks in the crank pulley. When the handle
is working properly, bend the lock washer to
secure the lock nut in position.
Tip:
The engine must be filled with oil and refuelled before
starting the sawmill for the first time. Place the saw
head in the bottom position to make this job easier.
Detailed information about the engine can be found
in the engine’s user manual, which is supplied.
Work with the saw head
in the bottom position
to facilitate access to
the engine.
OTHER SETTINGS
SET THE CRANK SPRING
ENGINE INSPECTION BEFORE STARTING
BLADE GUIDES
The blade guides clamp the blade down by 3 mm
compared to the wheels.
The guides can adjust the blade angle in the sawing
direction by adjusting the upper and lower adjusting
screws. The guides must be adjusted so that they are
parallel to the trailing edge of the blade. This is done
by adjusting the outer and inner adjusting screws. It is
important for the blade guide roller to run parallel to
the blade. Be thorough when setting this feature.
The guides can be adjusted in and out by pulling the shaft
after releasing the adjusting screws. The trailing edge of
the blade should be about 3 to 5 mm from the flange of
the blade guide roller.
