Logosol B751 - Handle and Chain Installation

29
B751
1
2
3
M8x16
2 x
M8x60
2 x
2 x
2 x
M8
M8
1x
01-00655
1
2

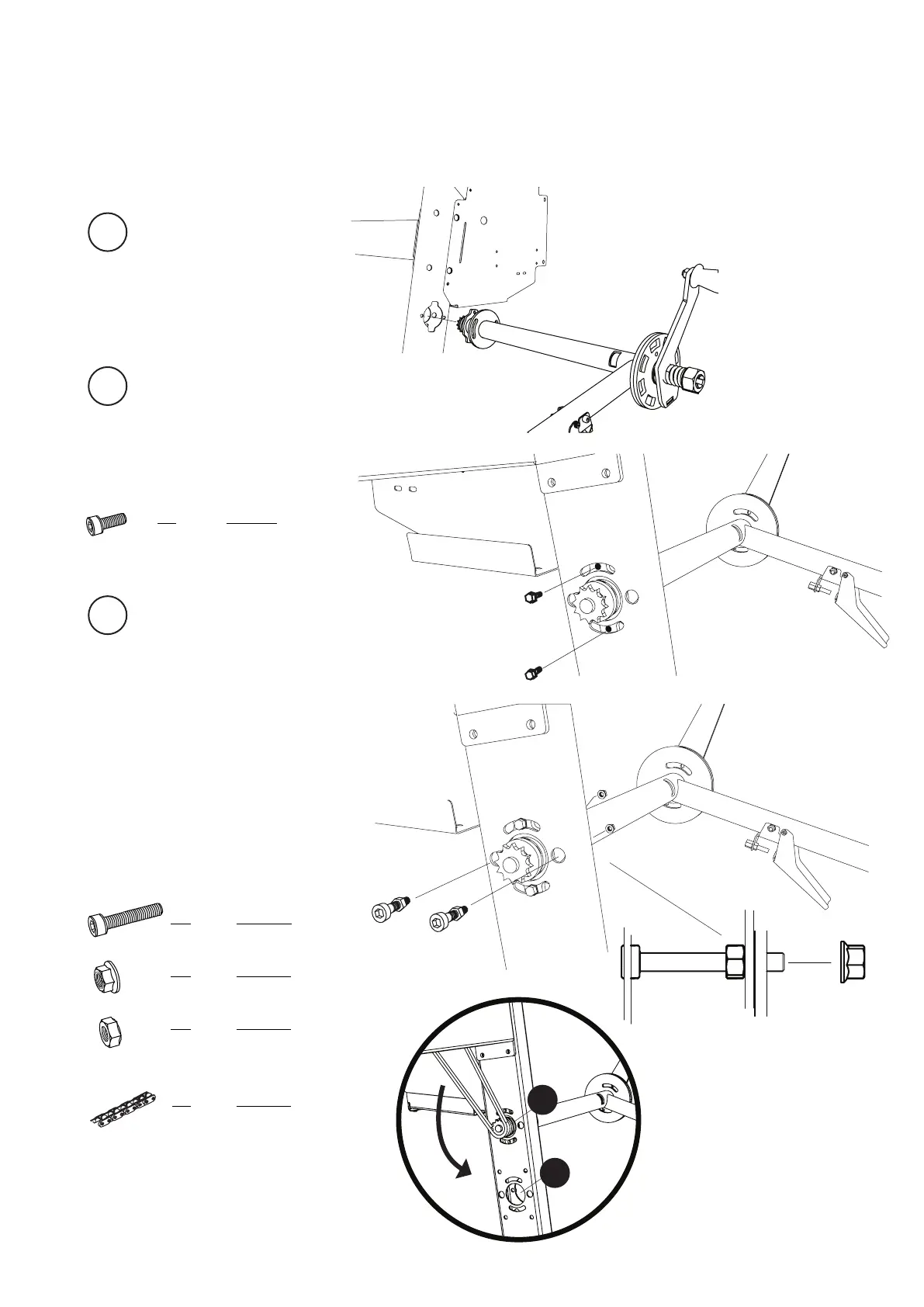

Insert the handle into the main post
Secure the handle in place
using the prefitted short
fastening screws.
Secure the handle in place using the long
fastening screws. Please note that the inner nut
must be positioned so that the hex head of the
bolt aligns with the outside of the tube.
FINAL SAW HEAD ASSEMBLY
Options 1 and 2.
Use the chain extender
if you go for option 2.
Use the prefitted screws
for this assembly.
