ADJUSTMENT SEQUENCE
1
2
ADJUSTMENT SEQUENCE

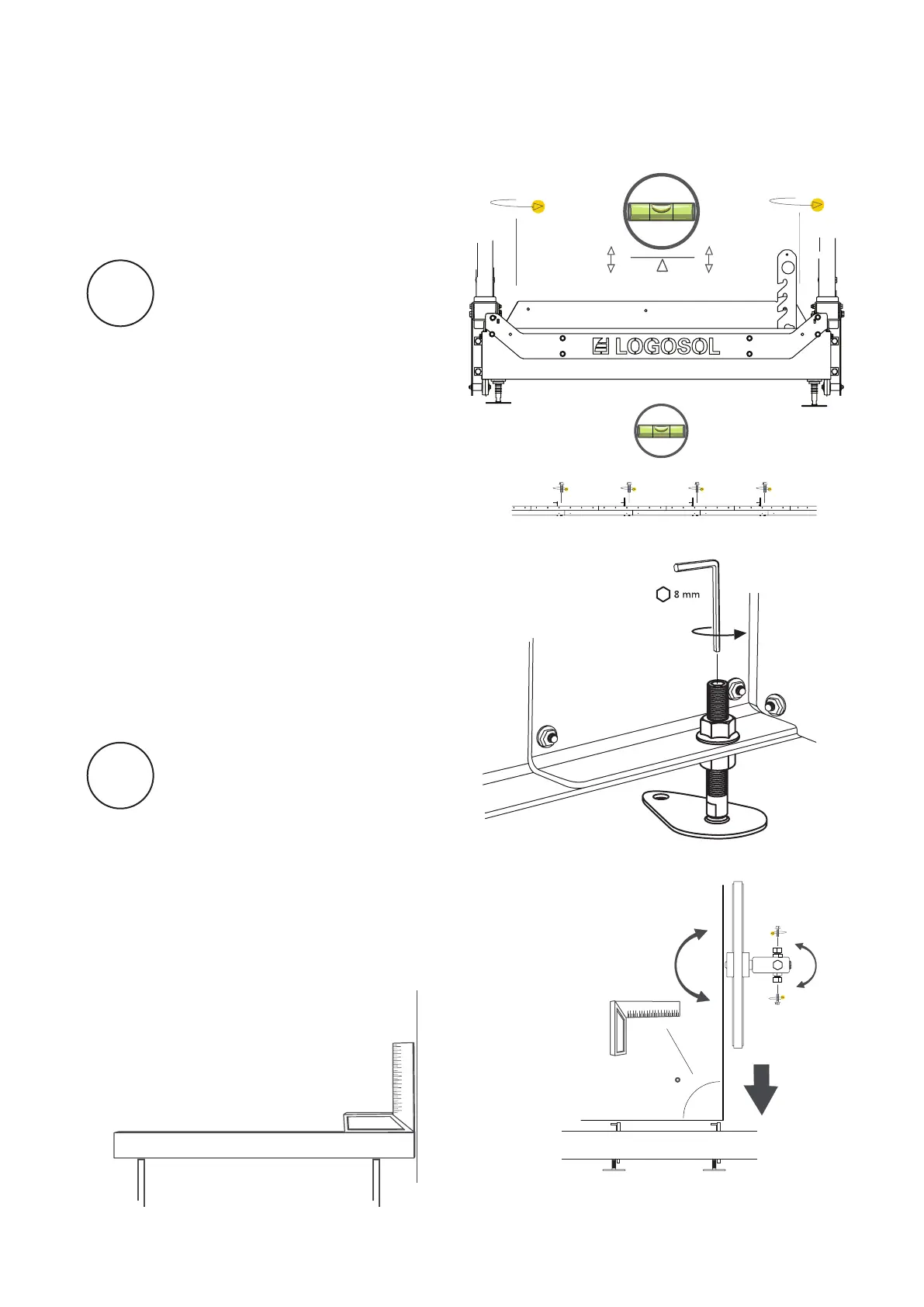

Place the set square on a straightedge
It is important that the rail is completely level
so as to ensure that it functions well. We have
previously set the straightness of the rail in
longitudinal direction. Now the rail has to be
adjusted horizontally along the short side. Place
a spirit level on a log bed, then adjust the rail
using the feet until the rail is horizontal. Then
repeat this procedure for all log beds until the
whole rail is horizontal.
The feet can be adjusted from above using
an Allen key. Once adjustment is complete,
the position is fixed with the check nut on
the inside of the tube.
ADJUST THE RAIL
HORIZONTALLY
ADJUSTMENT OF THE FEET
The angle of the wheels must be adjusted so that they are perpendicular
to the log beds. With the saw head set to the bottom position, check the
perpendicularity between the wheels and the log beds. It is useful to place
the angle iron on a straightedge extending between two log beds. Adjust
by loosening the lock nut first, then tightening the adjusting screws on
the wheel axle until perpendicularity is achieved. Tighten the lock nuts
and adjusting screws.
ADJUST THE WHEELS
