Logosol F2+ - Assembly Procedures; Log Lifter Assembly Steps

4525-100-3000
Symbol: Montering
15
LOGOSOL F2+
We recommend that you start with assembling the log lifters. These are identical,
and all components needed are found in the log lifter boxes.
We recommend that you place all fastening elements on a tray or
the like to facilitate nding the bolts, nuts, etc.

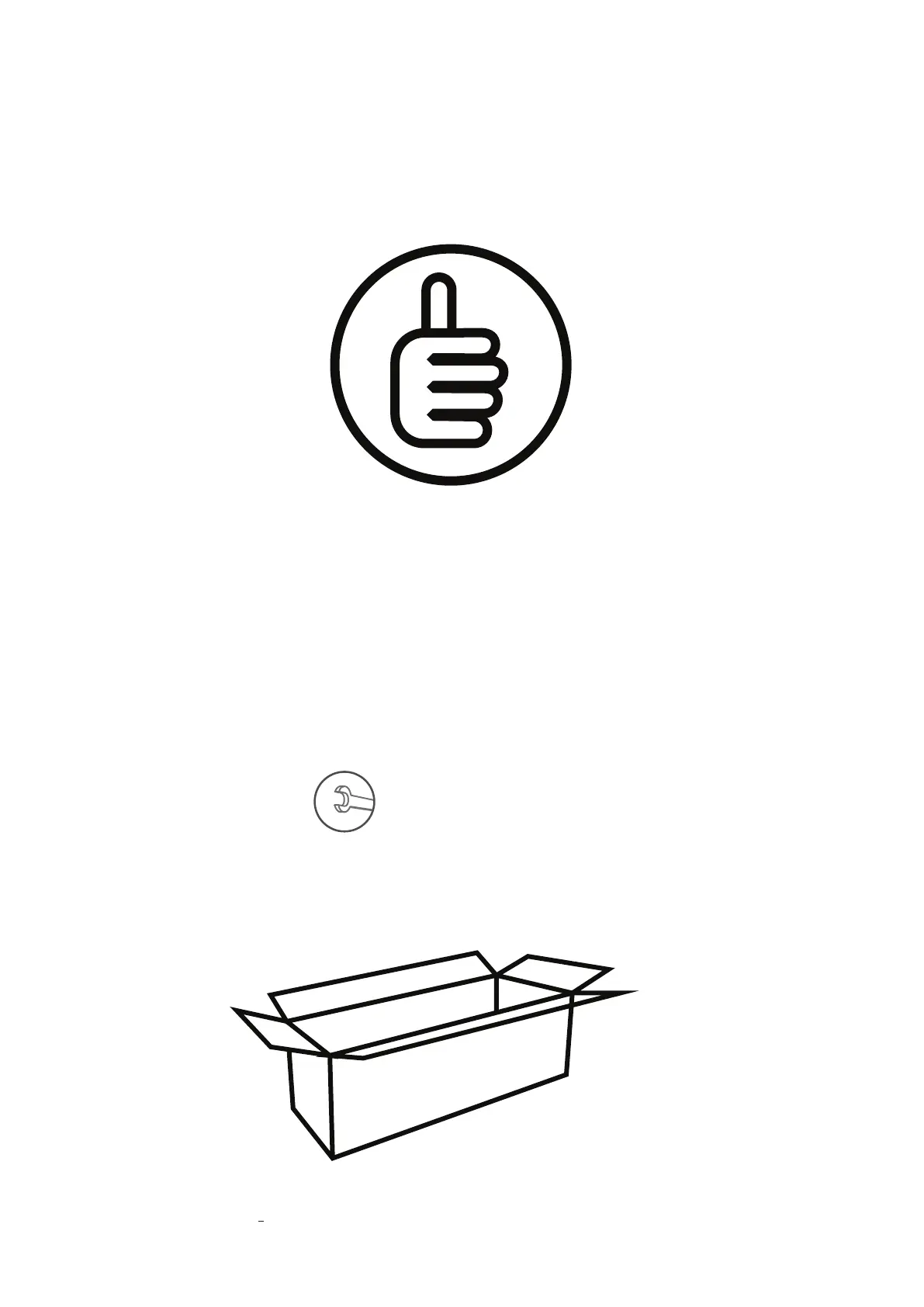

Open one of the log lifter boxes and start assembling.
Here we go!
Symbol: Assembly
