LOGOSOL F2+
When the log lifter is
being cranked down,
check that it moves easily
through the ratchet cam
housing driven by its own
weight.
If this is not the case:
• Loosen the four bolts in
the ratchet cam housing.
• Loosen the bolts
between the horizontal
beam and the lower long
leg.
• Pull the log lifter up and
down a couple of times
until it moves without
difculty.
• Tighten the bolts.

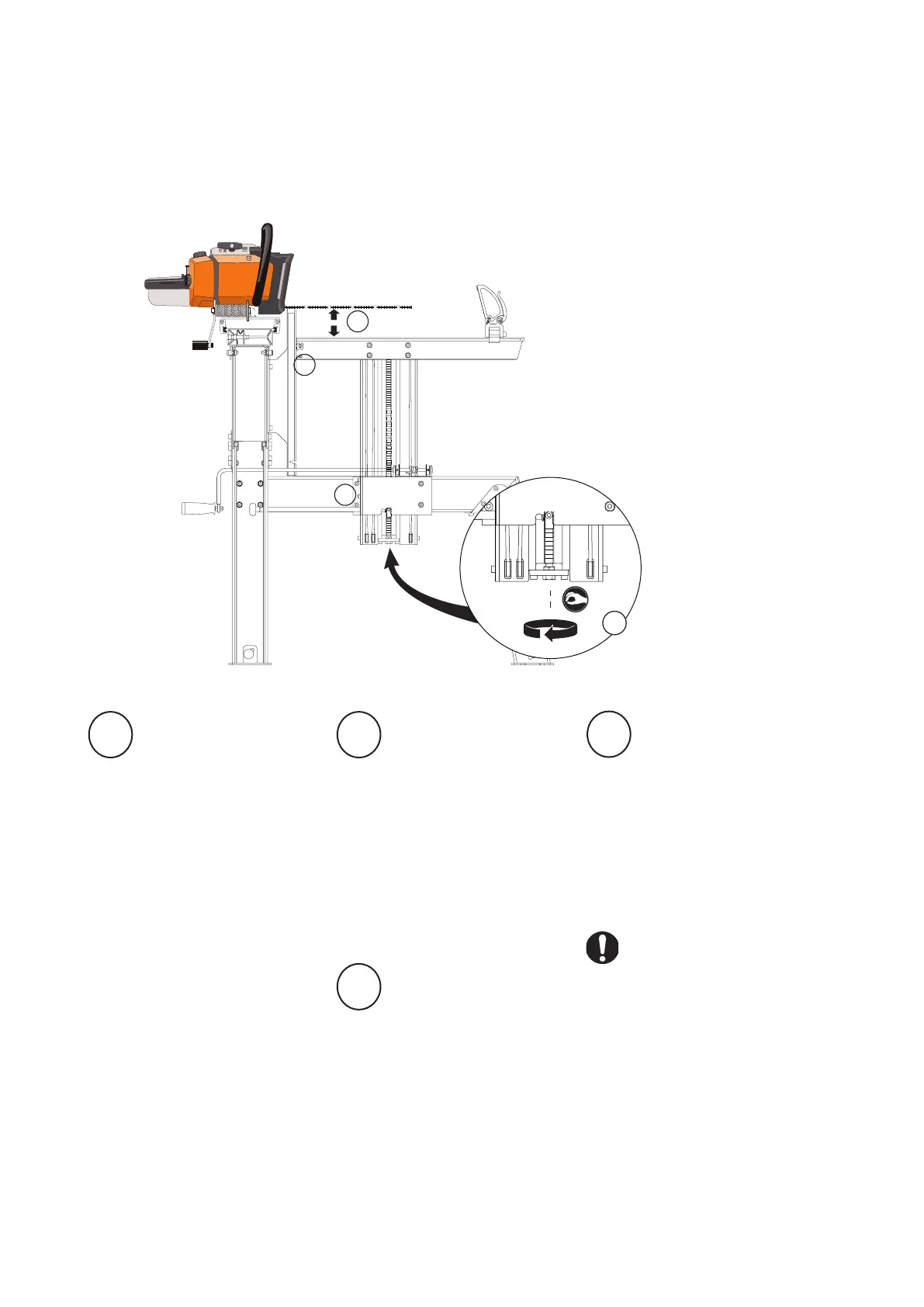

Check the height setting
of the log bed.
• Position the saw unit so
that the guide bar is right
over the log bed.
• Raise the log bed up to
the notch nearest to
2 inches (52 mm) from
the underside of the
guide bar.
• Adjust by using the
bolt and lock nut on
the end of the ratchet
bar until you have 52
mm between the log
bed and the guide bar.
Should the adjustment
be insufcient, move the
ratchet cam up or down a
notch and adjust again.
• Lock with the lock nut.
Adjust the height scale
pointer:
• Loosen the bolt that
holds the pointer. Set the
pointer to 2 inches on the
height scale.
ADJUSTMENT: LOG LIFTER
Lubricate the sliding
surfaces of the lifting
beam and the track in
the log support with
silicone spray (9999-
000-5110) or Supero
(9999-000-5115).
