The guide bar should be
parallel to the log bed. If this
is not so, the guide bar is
probably not straight. Remove
the chain from the guide bar
without removing the guide bar
and move the sawing unit over
the log bed.
Use protective gloves!

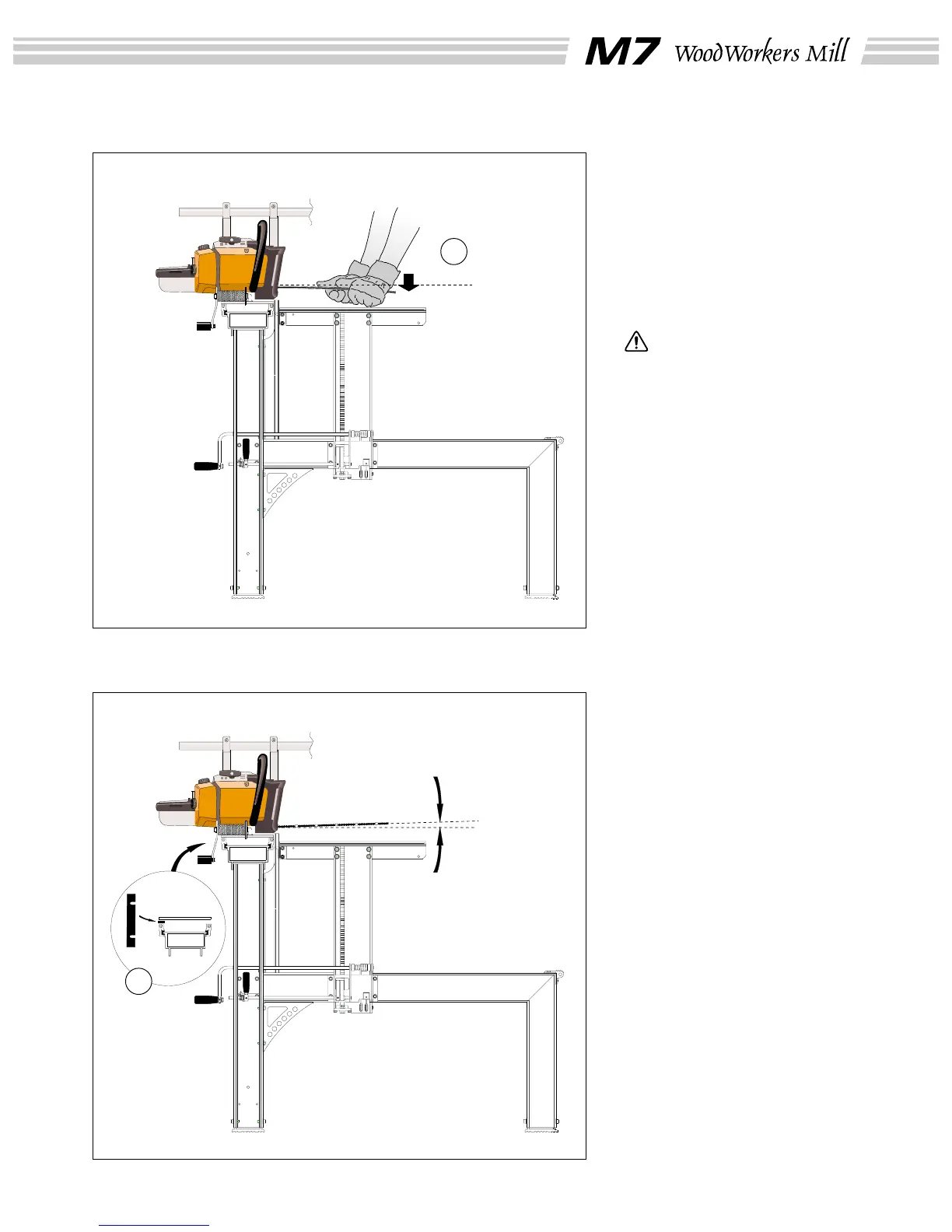

(A) Grasp the middle of the
guide bar with both hands as
shown and bend it carefully until
it is parallel to the log bed.
Check using the setting block.
(B) How straight the guide bar
mounts varies between chain-
saws.
It should only be necessary to
adjust a guide bar once,
provided that it is not bent during
sawing.
If after turning the guide bar you
notice that you need to bend it
again in the same direction as
before, it may be that the guide
bar mount isn’t true. This can be
compensated for by placing one
or more adjustment pieces
between the aluminium sliding
rails and the chain-saw or
electric saw plate. Adjustment
pieces can be ordered from
Logosol, part. no. 4507-001-
1305.
Adjustments –guide bar
A
B
21
