(28) Screw the handle with a
washer on the threaded rod for
the log grip carriage. (1 x M6
washer)
(29) Insert the bolts and screw
on square nuts in the same way
as when the chain-saw carriage
was assembled (see page 17).
(4 x M6x16 bolts, 4 x M6 square
nuts)
(30) Fit the sliding rails under
the plate so that the square nuts
fit into the slide rail tracks.
(31) Center the guard, log grip
and plastic spacer over the
holes in the plate. The spacer
should be turned so it extends
as far as possible behind the
grip. Thread the bolts through
the holes and tighten. (2 x
M6x40 bolts, 2 x M6 washers, 2
x M6 nuts)
(32) Thread the chain-saw feed
line holder bolt through the
spacer and fit on the plate. (1 x
M6x25 bolt, 1 x M6 nut)
The holder bolt can be fitted in
one of two holes depending on
whether a petrol or an electric
saw is being used. The picture
illustrates set-up for a petrol
saw. Make a loop on the feed
line and place it over the spacer.
30
29
31
28
32
30
29

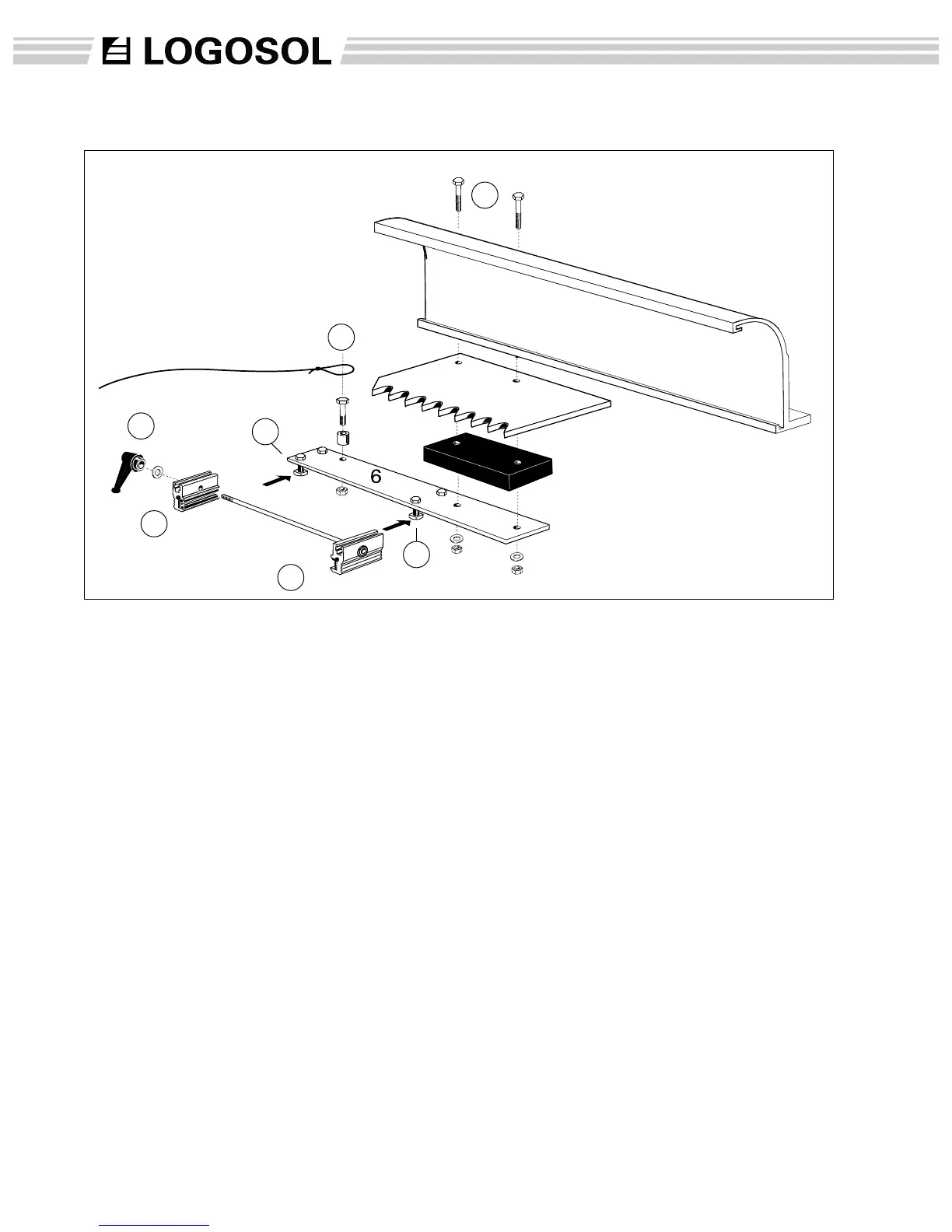

Assembly: spiked log grip with guard
18
