Logosol M7 Owner's Manual

11
(6) Fit the strut to the inside (D)
of the guide rail flanges with the
oval hole up. (4 x M6x20 collar
bolts, 4 x M6 collar nuts)
(5) Place the guide rail on the
long legs, pressing the guide rail
down while the bolts are tighte-
ned. (4 x M6x20 collar bolts, 4 x
M6 collar nuts)
Check that the angle
between the guide rail and
the long leg is 90°.
(7) Fit the cross beam. In each
leg there are six holes. The
inner ones are used for the
standard M7 unit (C), while the
others are used when the M7 is
extended and an additional
cross beam is fitted on either
side. (6 x M6x20 collar bolts, 6 x
M6 square nuts)
5
6
7
B

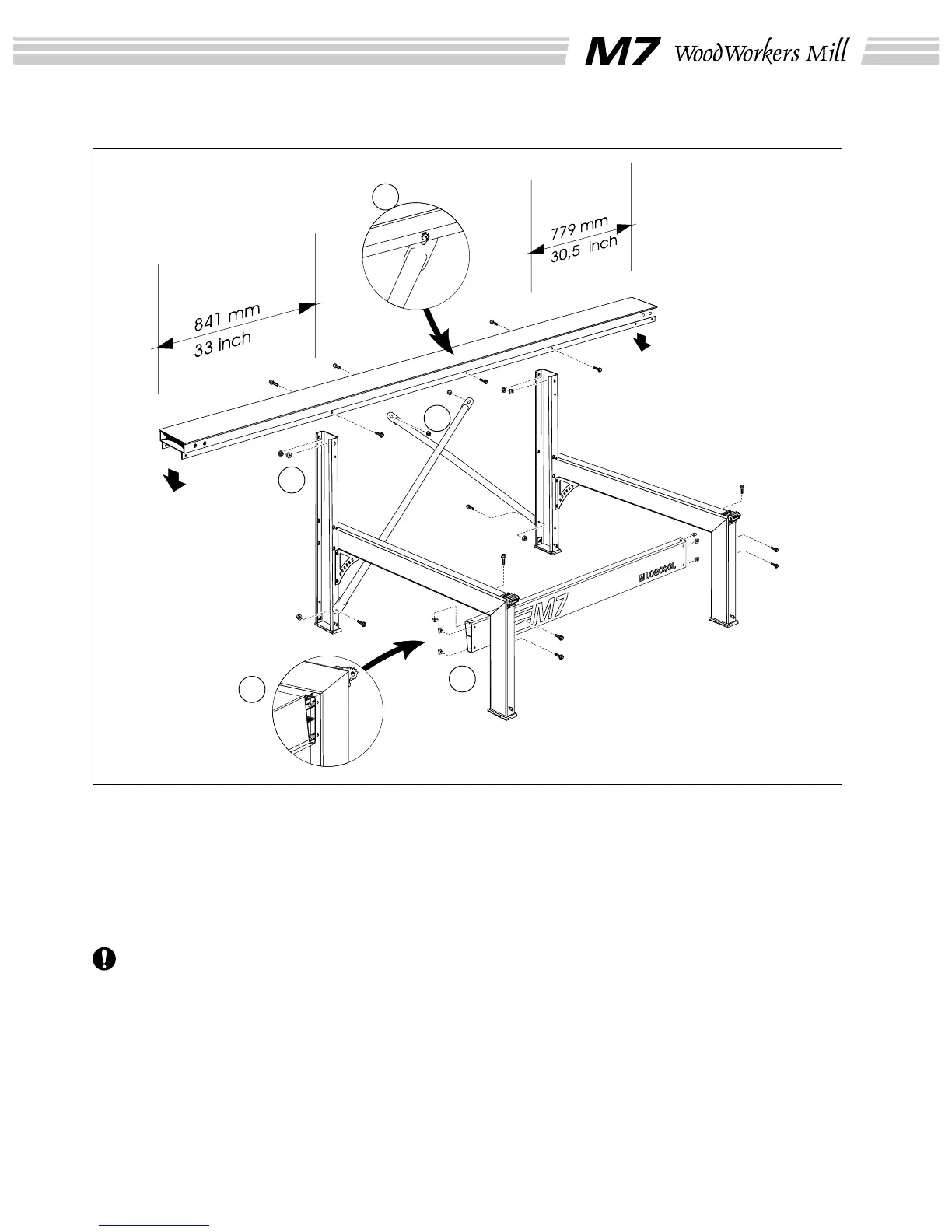

Assembly: guide rail, guide rail strut, cross beam
C
