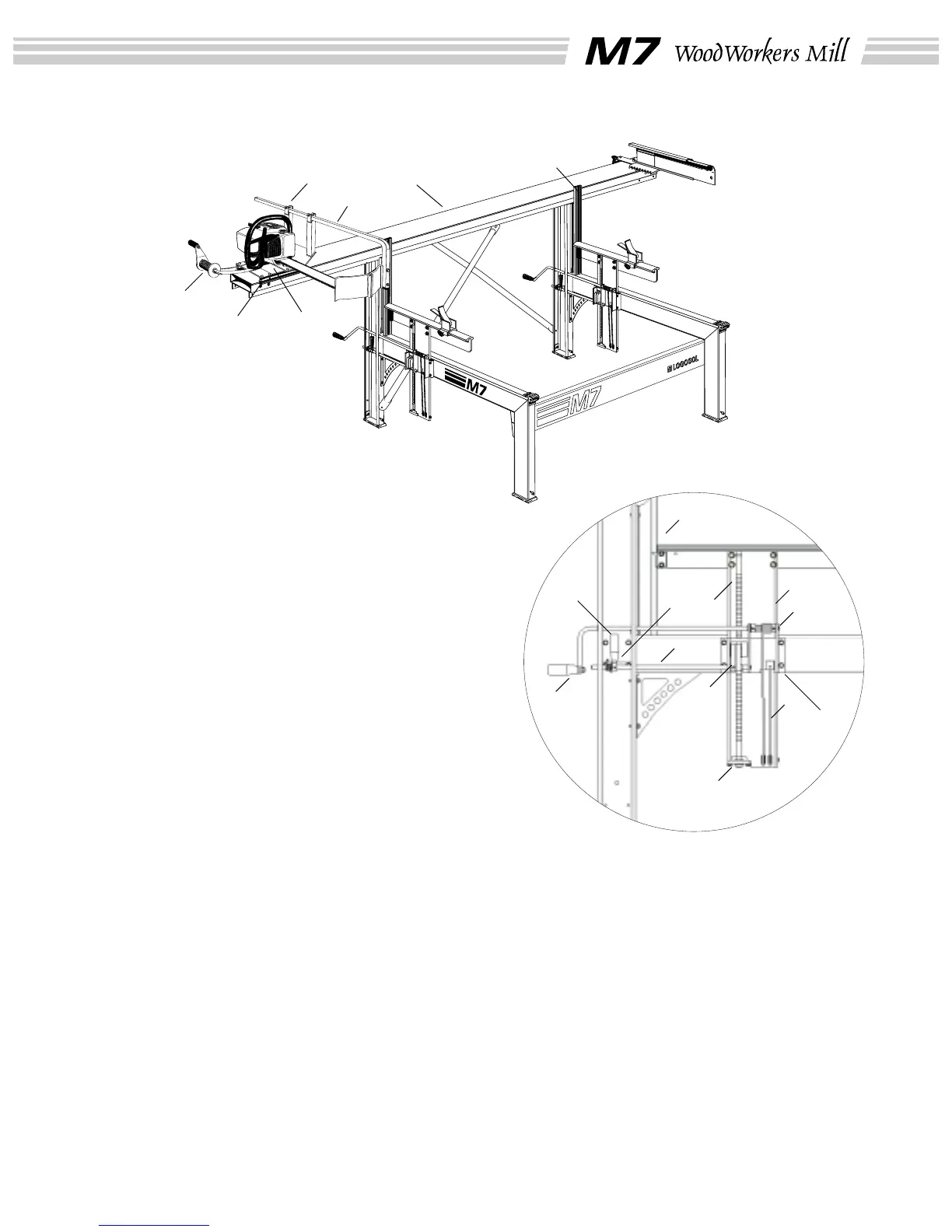

Article list
No. Article number # Description
1. 4507-001-1000 2 Guide rail, 2.75 m (9 ft)
2. 4507-001-1015 2 Guide railstrut
3. 4517-001-1009 1 Cross beam
4. 4507-001-1030 2 Long leg
5. 4507-001-1035 2 Short leg
6. 4507-001-1040 4 Foot
7. 4507-001-1200 2 Horizontal beam
8. 4507-001-1045 2 Knee fitting
9. 4507-001-1050 2 Log bed
10. 4507-001-1025 2 Edge support
11. 4510-723-3900 6 Line pulley
12. 4507-001-1190 2 Setting block for log bed
13. 4507-001-1165 2 Short indicator
14. 4507-001-1170 2 Long indicator
15. 4507-001-1055 2 Rachet Cam Nuetral plate
16. 4507-001-1060 2 Angle fitting
17. 4507-001-1075 2 Log support
18. 4507-001-1070 4 Scale
19. 4507-001-1065 2 Lifting beam
20. 4507-001-1080 2 Lifting line, 2.05 m (6’9”)
21. 4507-001-1085 2 Saddle Plate, compl.
22. 4507-001-1090 4 Plastic slide rail, plate clamp
23. 4507-001-1095 8 Spacer
24. 4507-001-1101 2 Handle crank rod
25. 4507-001-1105 2 Stop ring, track
26. 4507-001-1106 2 Stop ring
27. 4507-001-1150 2 Rachet Axle
28. 4507-001-1115 2 Step chooser
29. 4507-001-1120 2 Turn spring
30. 4507-001-1125 2 Rachet Cam
31. 4507-001-1130 4 O-ring
32. 4507-001-1020 2 Rachet handle
33. 4507-001-1185 2 Rachet bar stop plate
34. 4507-001-1205 2 Line pulley holder
35. 4507-001-7600 1 Log grip, compl.
36. 4510-723-2905 2 Plastic slide rail, log grip *
37. 4510-723-2511 1 Spacer *
38. 4510-723-4806 1 Log grip guard *
39. 4510-723-5100 1 Threaded rod *
40. 4510-723-4902 1 Adjustable handle, log grip *
41. 4510-723-4403 1 Log grip spikes 9-points *
42. 4507-001-1110 2 Rachet axle
43. 6600-000-1100 1 Carriage, complete
44. 4510-723-2002 1 Chain-saw feed line *
45. 4510-723-6010 1 Electric saw feed line *
46. 6600-001-2121 1 Line for electric feed 7mm*
47. 4510-723-3402 1 Line spool *
48. 9999-000-1030 2 Carriage slide rail, complete *
49. 4510-723-2904 2 Plastic slide rail, carriage *
50. 4510-723-4809 1 Chain guard *
51. 4510-720-3000 1 Chain guard mount *
52. 4510-720-2800 1 Spool holder *
53. 4510-720-2900 1 Pylon carriage plate *
54. 4510-723-3402 2 Logosol chainsaw nut
55. 4507-001-1305 2 Adjusting plate 0.5 mm *
* Articles that are part of another article number, but can be ordered as a spare part or accessory.
12-14
11
16
15
19
21-26
20
42
28
29
32
30
31
33
34
27
This list includes items that are not
part of the standard construction.
The items are ordered one at a time.
The number listed in the table
indicates the number usually
included.
24
5
3
7
8
35-41
9
1
4
17
18
10
6
48, 49
54, 55
53
50, 51
44-47,52
43
