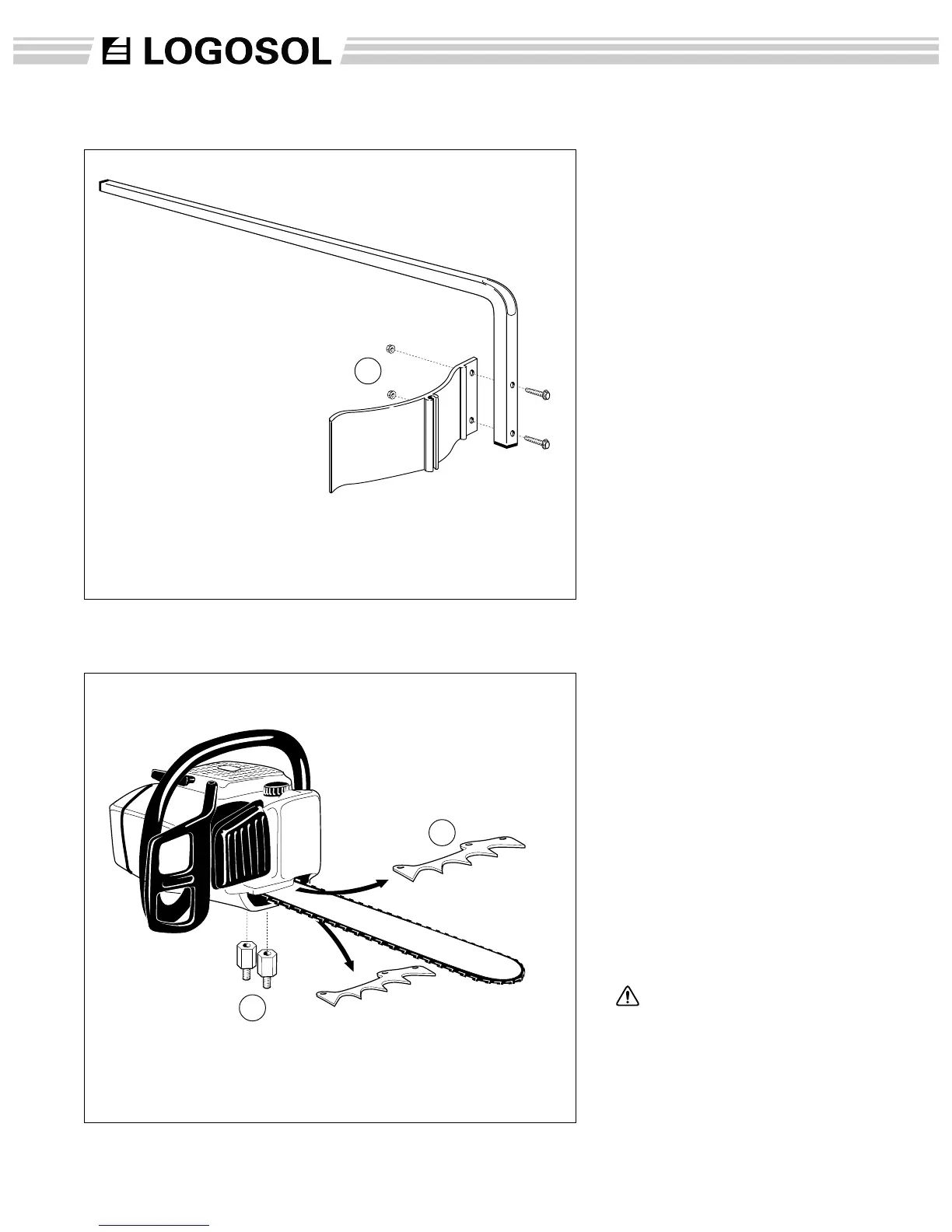

(22) Fit the chain guard on the
support and bolt. (2 x M6x40
collar bolts, 2 x M6 locking nuts)
23
22
Remove the two bolts holding
the guide bar and remove the
guide bar cover.
(23) Remove the bark grips,
leaving the bolts and
retightening the nuts.
(24) Refit the guide bar cover,
replacing the guide bar bolts
with the two extender nuts. The
guide bar nuts will be used to
fasten the chain-saw to the
carriage.
Only CE-approved chain-
saws with two guide bar
nuts may be used with the M7
sawmill.
Assembly: chain guard
Assembly: extender nuts
