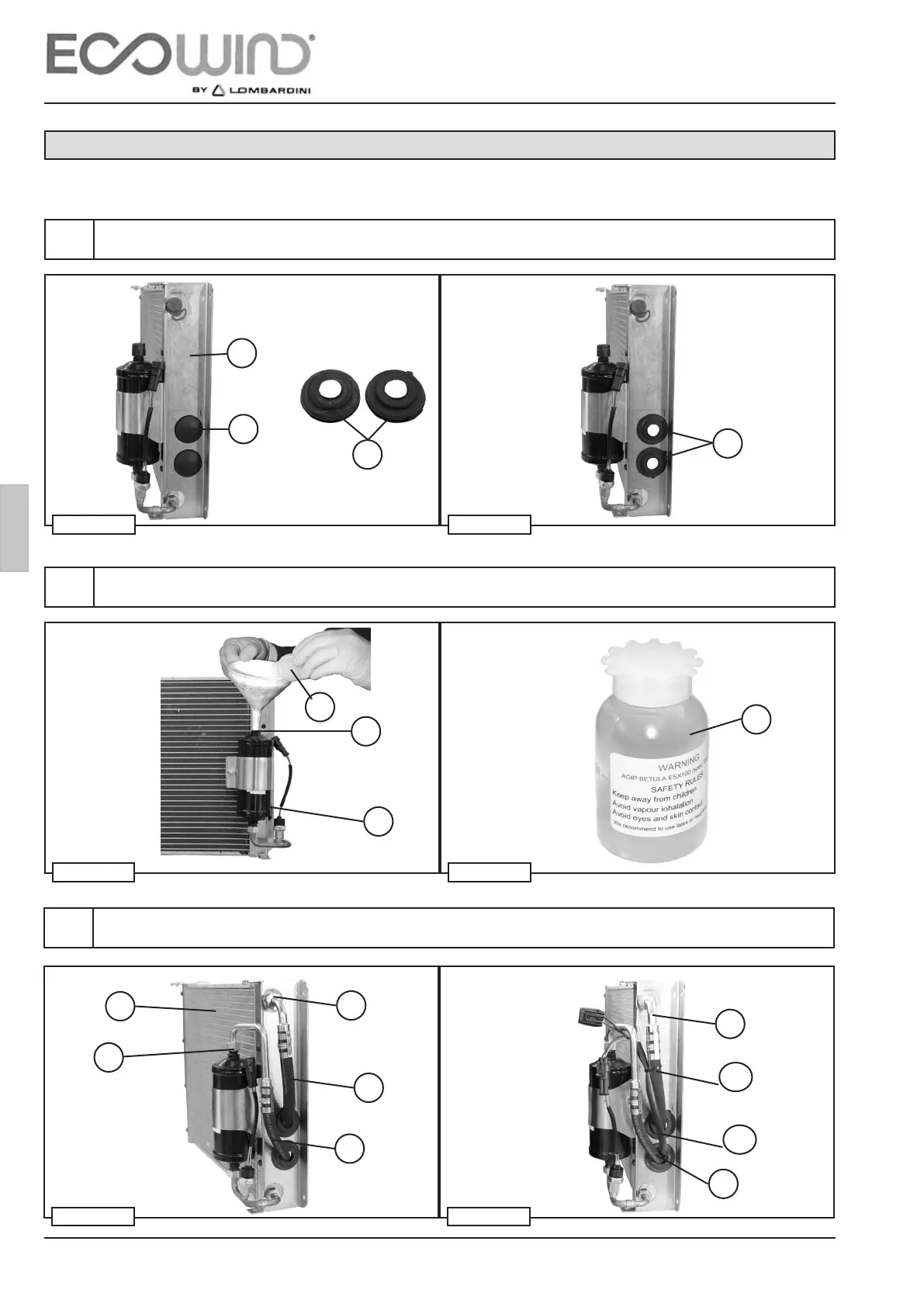

Fig. 33
2 Unscrew and scrap the plastic cap TP drier protection F, and then inlet the 100 ml of oil compressor O supplied. see
g. 33-34
Fig. 34
O
O
Tp
F
Fig. 35
3 Insert the gas pipes G6 – G8 and cable wiring CE through the rubbers as showed in g.35-36
Lock the ttings R1 and R2 to the condenser C with torque value like reported on tab. 8 pag.36
Fig. 36
C
R2
R1
G8
G6
G8
G6
CE
GAS PIPES FIXING TO BACK OF THE CAB.
FP
1st OPTION
ASSEMBLY AND INSTALLATION - 3
Fig. 31
1 Disassembly and scrap from the condenser C the two rubbers T and then mounting the new two rubbers (protection
pipe) G supplied as showed in g.31-32
Fig. 32
