G
B
G 8
G 10
Fig. 99Fig. 98
Fig. 101Fig. 100
ASSEMBLY AND INSTALLATION - 3
Step Description
10
ATTENTION

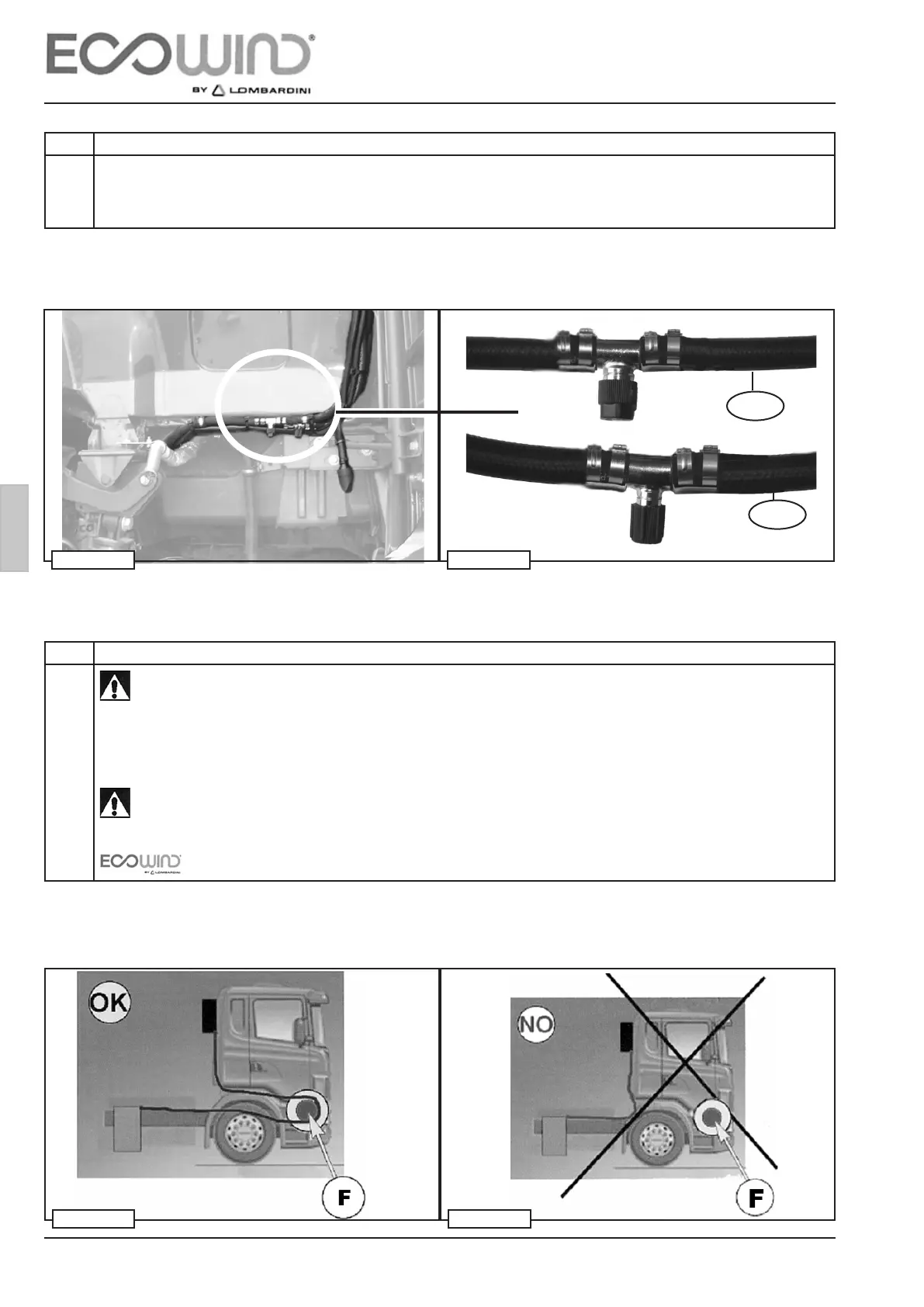

Regardless of the method used to attach the condenser, it is absolutely essential to create the pipe and cable
circuit by passing through the cab fulcrum point F, as shown in ( g. 100 ), in order to avoid serious damage to
the system, to parts of the cab and lifting system.
ATTENTION
Lombardini S.r.l. declines all responsibility for damage caused to things, persons, animals, the vehicle and the
system as a result of non-observance of this regulation g. 101.
Step Description
9 Gas delivery pipe G8 and inlet pipe G10 must be connected with 180° unions with access points (Fig. 98 L and 99)
necessary for gas recharge AC.
The position of the same must be of easy access to allow to insert gas charger station valves.
For unions tightening operations see instructions reported
