3 - ASSEMBLY AND INSTALLATION

Step Description

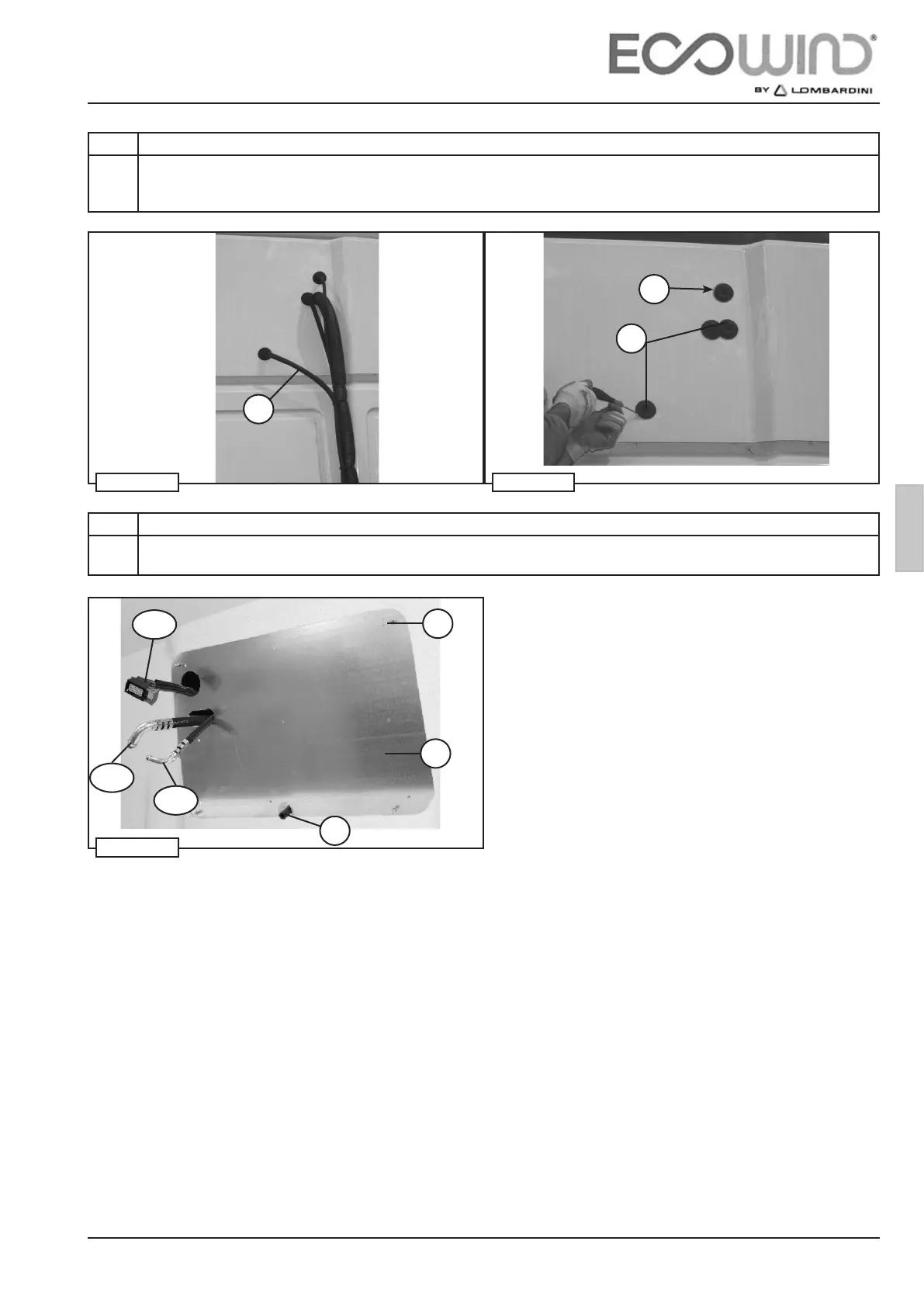

11 After attaching the condenser CO connect the pipes and cables from the condenser to the split unit inside the cab.

Insert pipes G6 – G10, the split command cables W in the hole R and the condensation drainage pipe D in the rubber

cable holders G and push them through the slots in the counter frame (g. 102-103).

Step Description

12 Pass them through the internal holes, previously made in the pressed cardboard attached to the counter frame O.

Make sure that the condensation drainage pipe H exits the lower hole (g. 104).
