THIS MANUAL IS PROPRIETY OF ECOWIND by LOMBARDINI - ALL FORMS OF REPRODUCTION, PARTIAL OR OTHERWISE, IS STRICTLY PROHIBITED
G
B
H
I
C
D
D

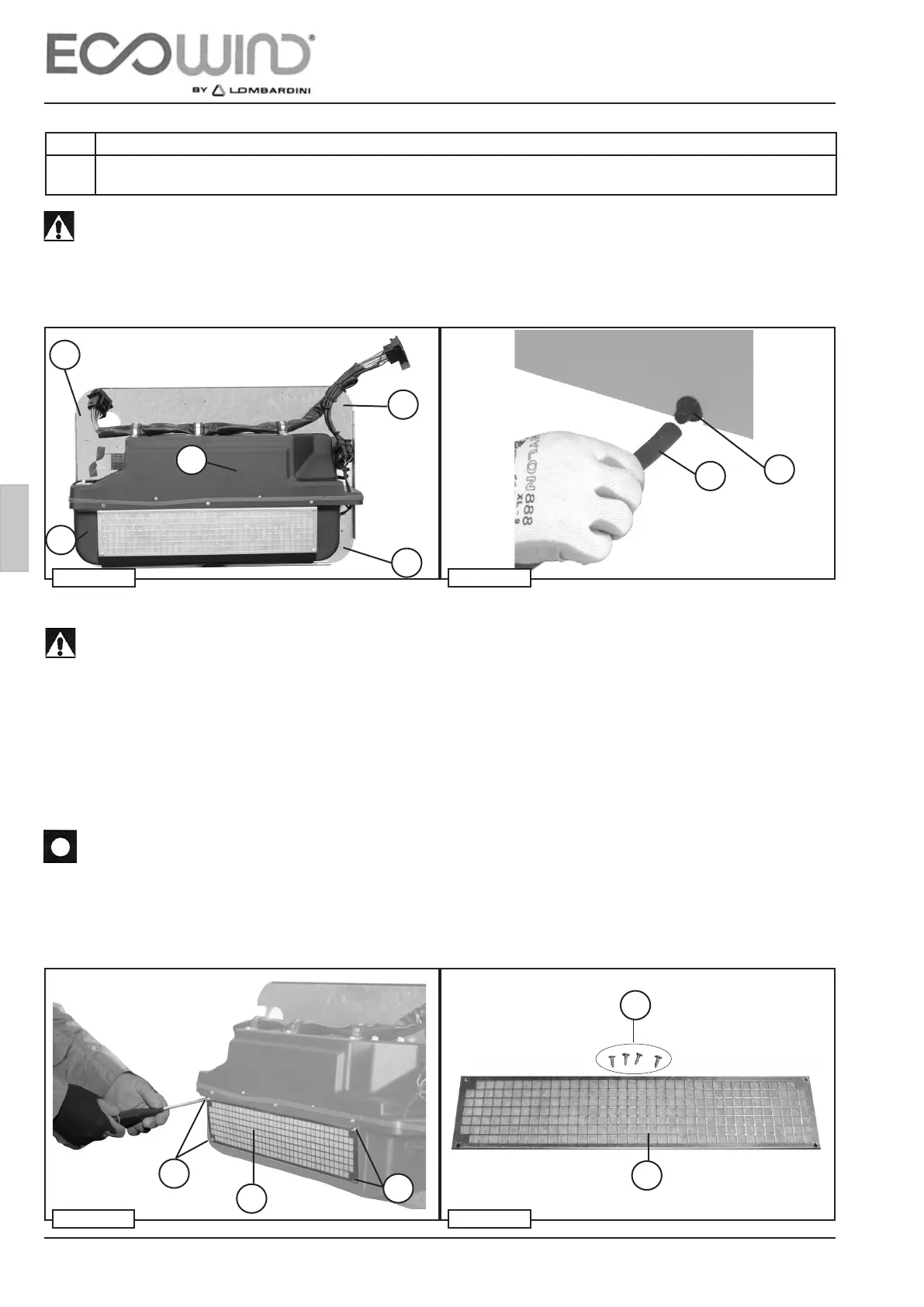

Fig. 106Fig. 105
Fig. 108Fig. 107
C
C
P
P
S
P
P
Warning!!
Check properly that in all rthe lenght of drain hose condensation between split and external cab
“THERE IS NOT ANY BOTTLENECK OR TORSION ON RUBBER HOSE”. This inobservance, could
make a serious problem of water inside the cab !!!
Warning!!
Before performing the operation mentioned above, make sure that the condensation drainage pipe
(H) is securely fastened to the plastic coupling (I) on the back split’s base (g. 106 ).
Warning!!
INSTALL KIT “ANTIPOLLUTION FILTER D” (SUPPLIED WITH THE EQUIPMENT*) Fig. 108 WITH
SELF-THREADING SCREWS C, AS INDICATED IN FIG. 107
Step Description
13 Secure the split S to the counter frame O by sliding it onto the 4 Stud M6 P and then fasten it using Ø 6 washers and
the M6 AB nuts provided (g. 105 )
ASSEMBLY AND INSTALLATION - 3
