G
B
PC
FR
c
Pc
Fig. 114
Fig. 116Fig. 115
Fig. 117
MC
FR
S
Step Description

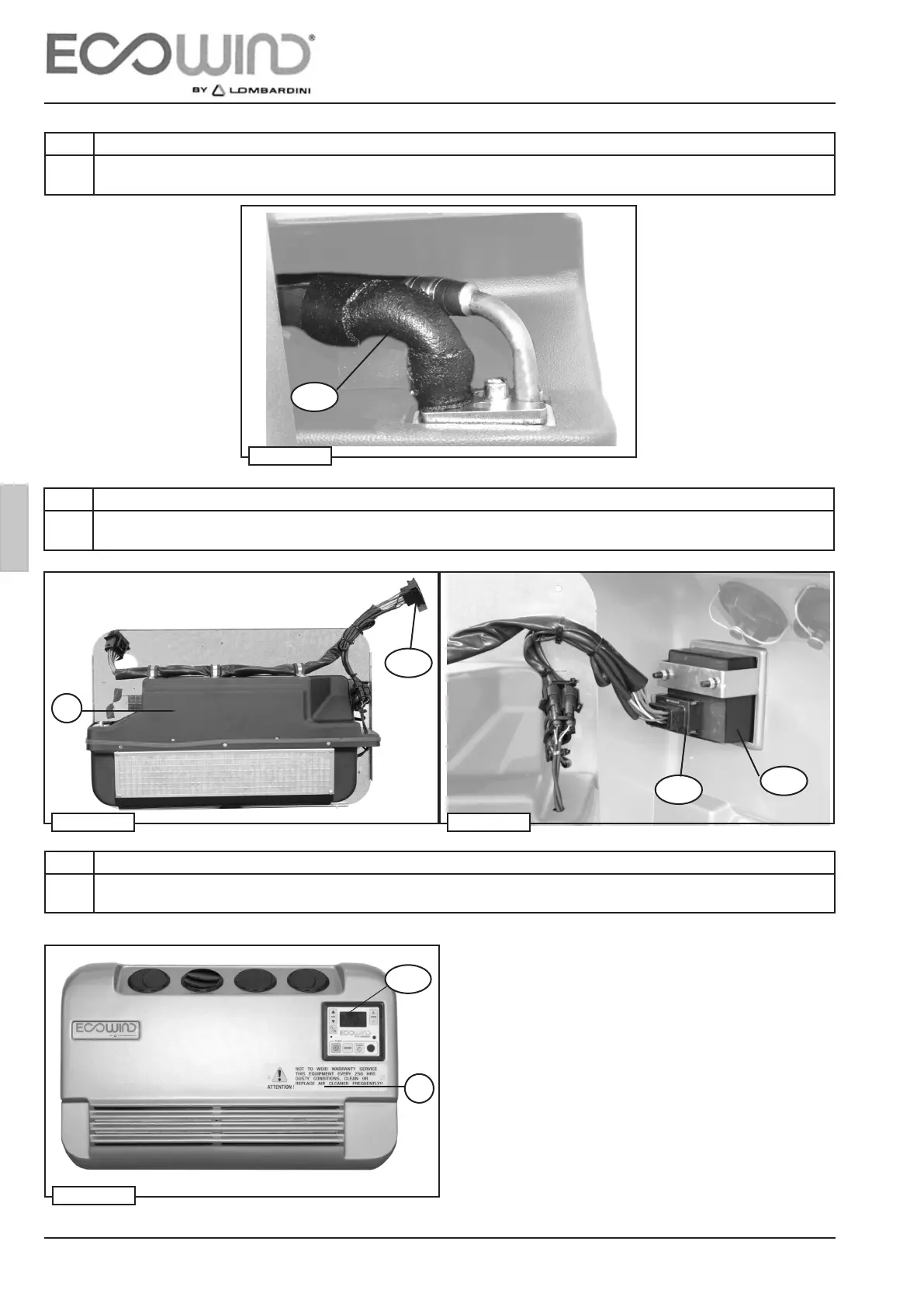

3 After completing the gas circuit, tape the metal union G10 90 using the supplied anti-condensation mastic MC (g. 114)
to prevent condensation inltrating into the cab.
ASSEMBLY AND INSTALLATION - 3
Step Description
4 Ended the gas circuit operations, remount the split S g. 115 unit case cover C that was previously removed and secure
it using the screws that were previously removed g. 117.
Step Description
5 Before remounting the split’s protective cover (c), make sure that the FRAMATOME FR connectors of the control panel
(Pc) is hooked up. with connector of wiring W See g. 116
