LORCH S-SpeedPulse XT User Manual

Pc-Boards
- 27 -02.20 909.2710.1-06
Schematic
SI1
D2
D1
D3
D4
X4 X3
X1
4
3
2
1
4
3
2
1
8
7
6
5
X2
4
3
2
1
8
7
6
5
X5
4
3
2
1
8
7
6
5

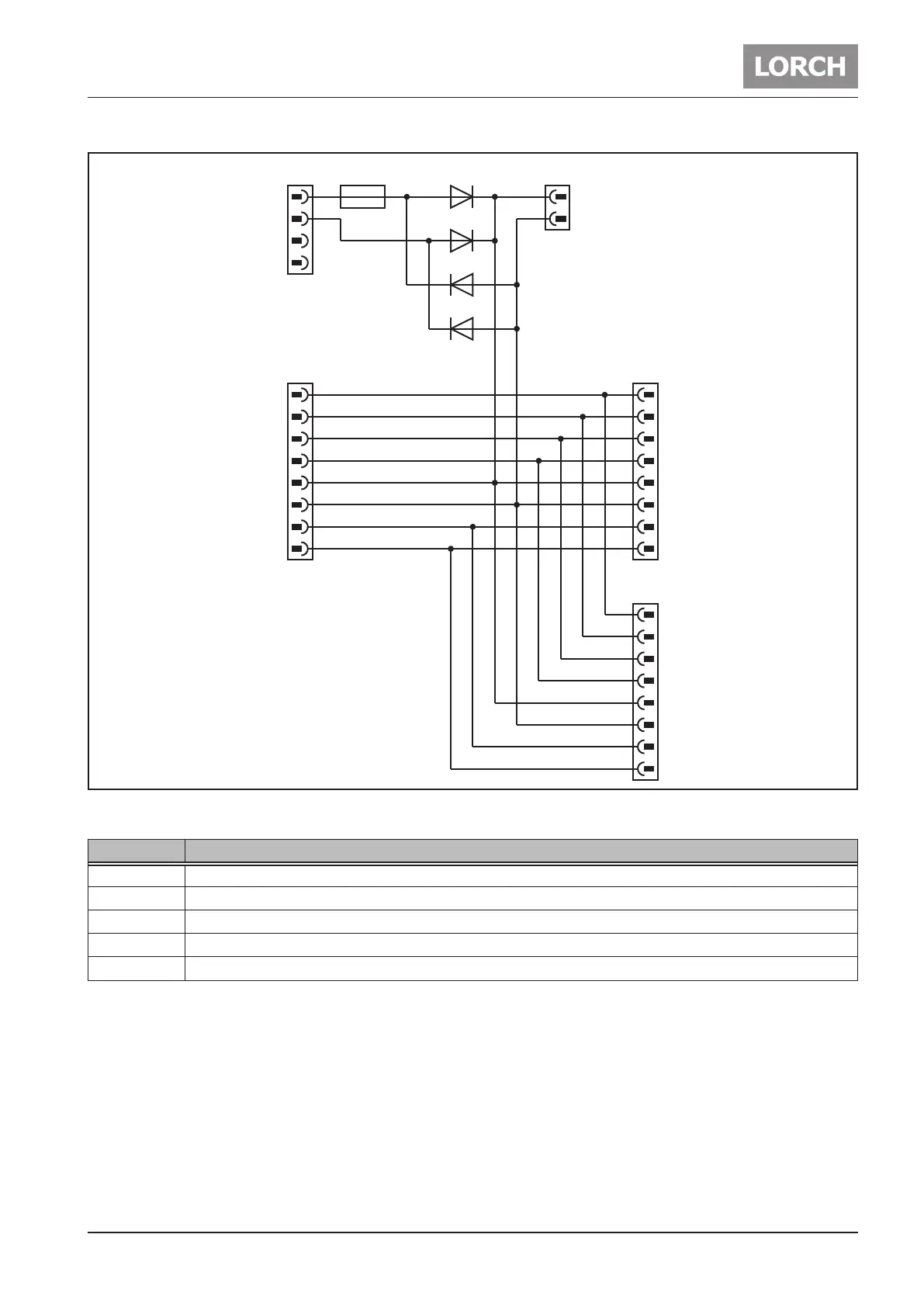

Fig. 14: Schematic pc-board ZVP
connector designation
X1 control cable to MAPRO (X5)
X2 control cable to DMRPP
X3 +60V DC
X4 connection (input) 42V AC control transformer
X5 parallel connection to DMRPP
Tab. 15: connections pc-board ZVP
