LORCH S-SpeedPulse XT - 8 Electrical Components; Current Sensor VAC

Electrical Components
- 44 - 02.20909.2710.1-06
8 Electrical Components
8.1 Current Sensor VAC
The current sensor is used to measure the weldng current.
Measuring points
designation
measuring
point
result
supply voltage X1-1
X1-2
X1-4
+
-
+15V DC
-15V DC
sensor output X1-3 output current signal 1:2000)
Tab. 27: Measuring point current sensor VAC

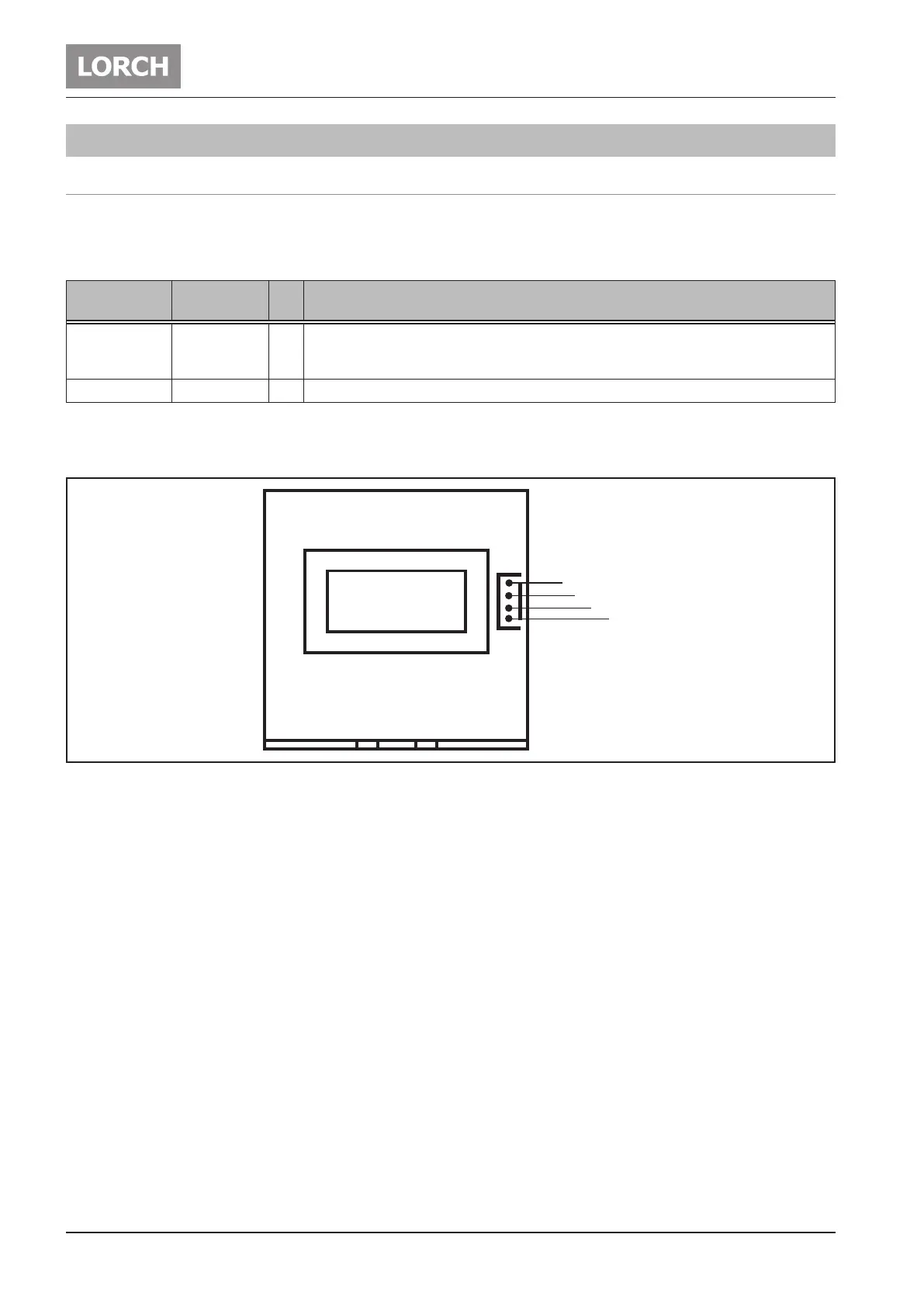

Picture current sensor VAC
M
4
3
2
1
Fig. 35: Current sensor VAC
