8.2 Control transformer
Depending on the machine configuration, different control transformers are used.
control transformer useage
655.8021.0 S3, S5, S8 / P3500, P4500, P5500 with standard water pump
655.8023.0 S3 mobile / P3000 mobile
655.8031.0 S3, S5, S8 / P3500, P4500, P5500 with intermediate feeder
655.8037.0 S3, S5, S8 / P3500, P4500, P5500 with water pump “high pressure”
Tab. 28: Conrol transformers
3
1
2
10
4
8
9
12
13
14
15
5
11
655.8021.0
655.8031.0
1
2
3 4
5
6
7
8
655.8023.0
400V
3
2
0_400V
1
0_18V
0_18V
0_18V
42V
0_42V
18V/1A
18V/0,4A
18V/0,4A
5
9
12
10
11
13
15
14
4
8
Pos.
230V/2,5A
19V/3A
0_19V
0_400V
1
0_42V
42V/3,5A
400V
2
Pos.
4
3
7
8
Pos.
20V/3A
0_20V
5
6
primary
secondary
secondary
primary
secondary
primary
secondary
primary2
secondary2
1
2
3
4
3
1
2
4
8
9
5
655.8037.0
400V
3
2
0_400V
1
42V/4A
0_42V
5
9
4
8
Pos.
230V/4A
19V/3A
0_19V
primary
secondary
1
2
3
4
8A
(709.0244.0)
655.8021.0: 4A
655.8031.0: 2.8A

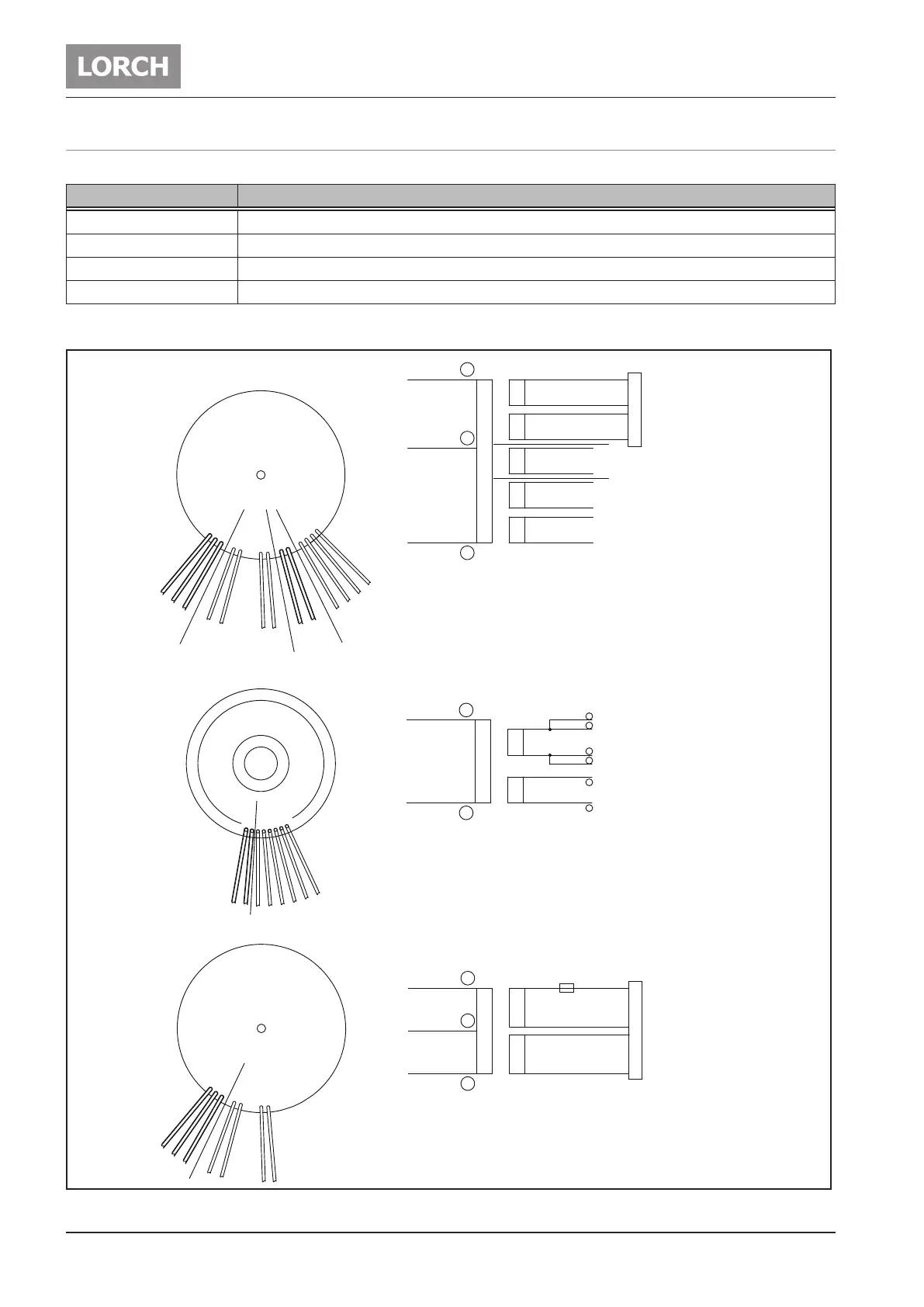

Fig. 36: Overview control transformers
