7.9 Pc-board MAT-BF
The pc-board MAT-BF is the front panel of the P-Basic machines.

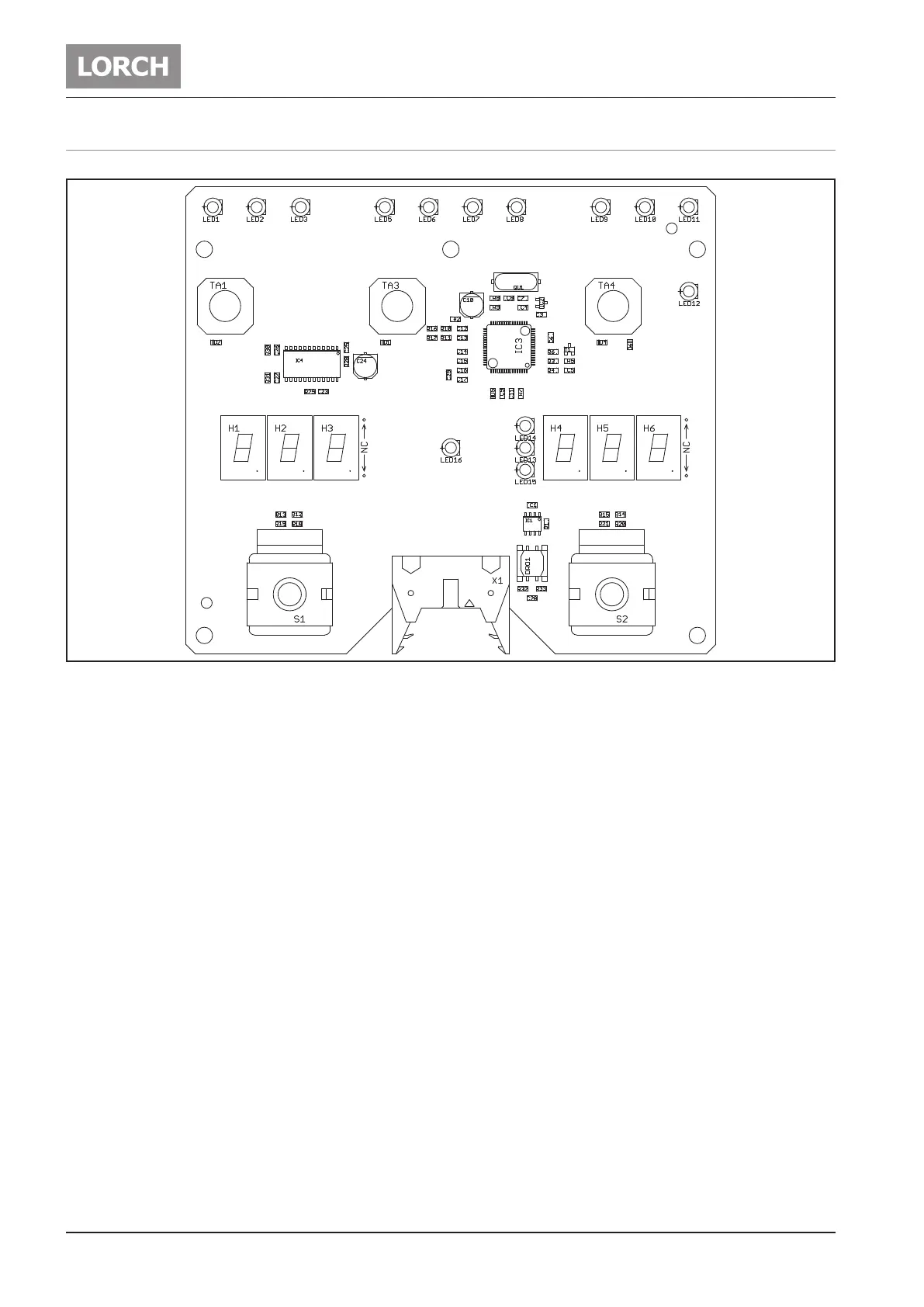

Fig. 18: Pc-board MAT-BF
Front panel test function
The display test at the P-Basic machines is activated by pressing the two outer buttons
(mode TA1 and main parameter TA4).
