Pc-Boards
- 26 - 02.20909.2710.1-06
Configuration Intermediate Feeder
When using an intermediate feeder, a stronger control transformer (655.8031.0) is used in the power
source to provide enough power for the intermediate unit. This is done via an additional pc-board ZVP.
Detailed information is given in the mounting instruction “Digital PushPull with auxiliary drive“ (E00.0320.1).
Please note!: the first (“rear”) DMRPP04 pc-board requires special software (special firmware), the
DMRPP04 pc-board in the intermediate feeder (“front”) has the standard PushPull firmware.
Since the push-pull software version 1.24 from 14.03.2019 the special software is no longer required.
7.5 Pc-board ZVP
The pc-board ZVP is the additional power supply for the motor inside the intermediate feeder.

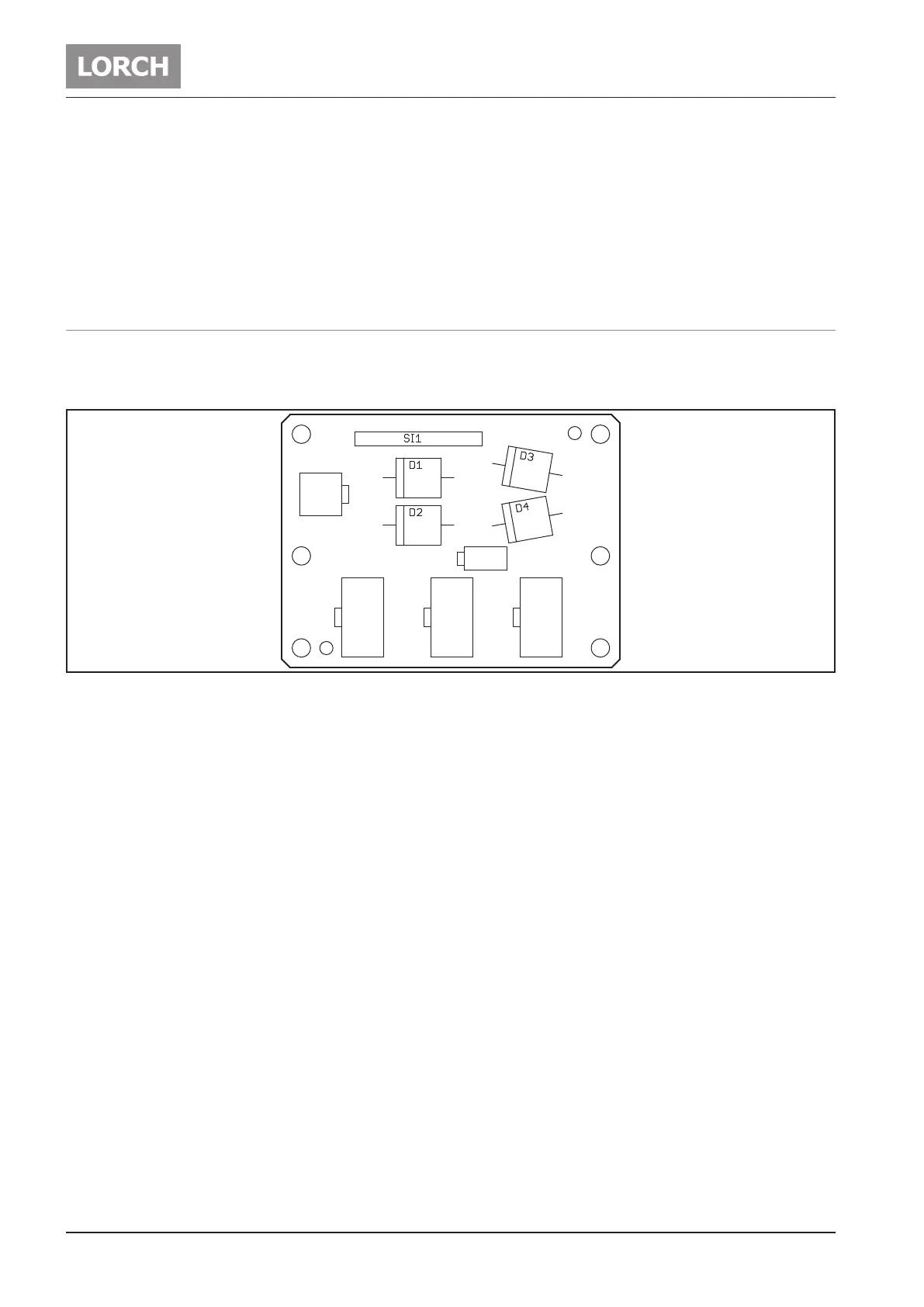

Picture pc-board ZVP
X1 X5 X2
X3
X4
Fig. 13: pc-baord ZVP
