LORCH V Series User Manual

page 17
V27, V30, V50:
pc-board part no. serial no. date identication
MOSFET toroidal core diode driver ic
DK-DCDRV 650.5262.x old no no old
DCDR01 650.5258.x 7xx-1635-001 30.08.2006 new yes no old
DCDR11 650.5364.x 7xx-1749-001 30.11.2007 new yes yes old
DCDR21 650.5371.x 7xx-1812-001 12.03.2008 new yes yes new
V24, V40:
pc-board part no. serial no. date identication
MOSFET toroidal core diode driver ic
DK-DCDRV24 650.5259.x old no no old
DCDR02 650.5257.x 7xx-1635-001 30.08.2006 new yes no old
DCDR12 650.5365.x 7xx-1749-001 30.11.2007 new yes yes old
DCDR22 650.5372.x 7xx-1812-001 12.03.2008 new yes yes new
!!! CAUTION !!! : the new MOSFETs are not compatible with the old type. The new MOSFETs must only be used
with the new pc-boards DCDRxx. The new parts must not be mixed with the old parts, under no circumstances !
Especially at the machines with double power units (V40 and V50) it must be ensured, that both power units are
equipped completely with only one version.

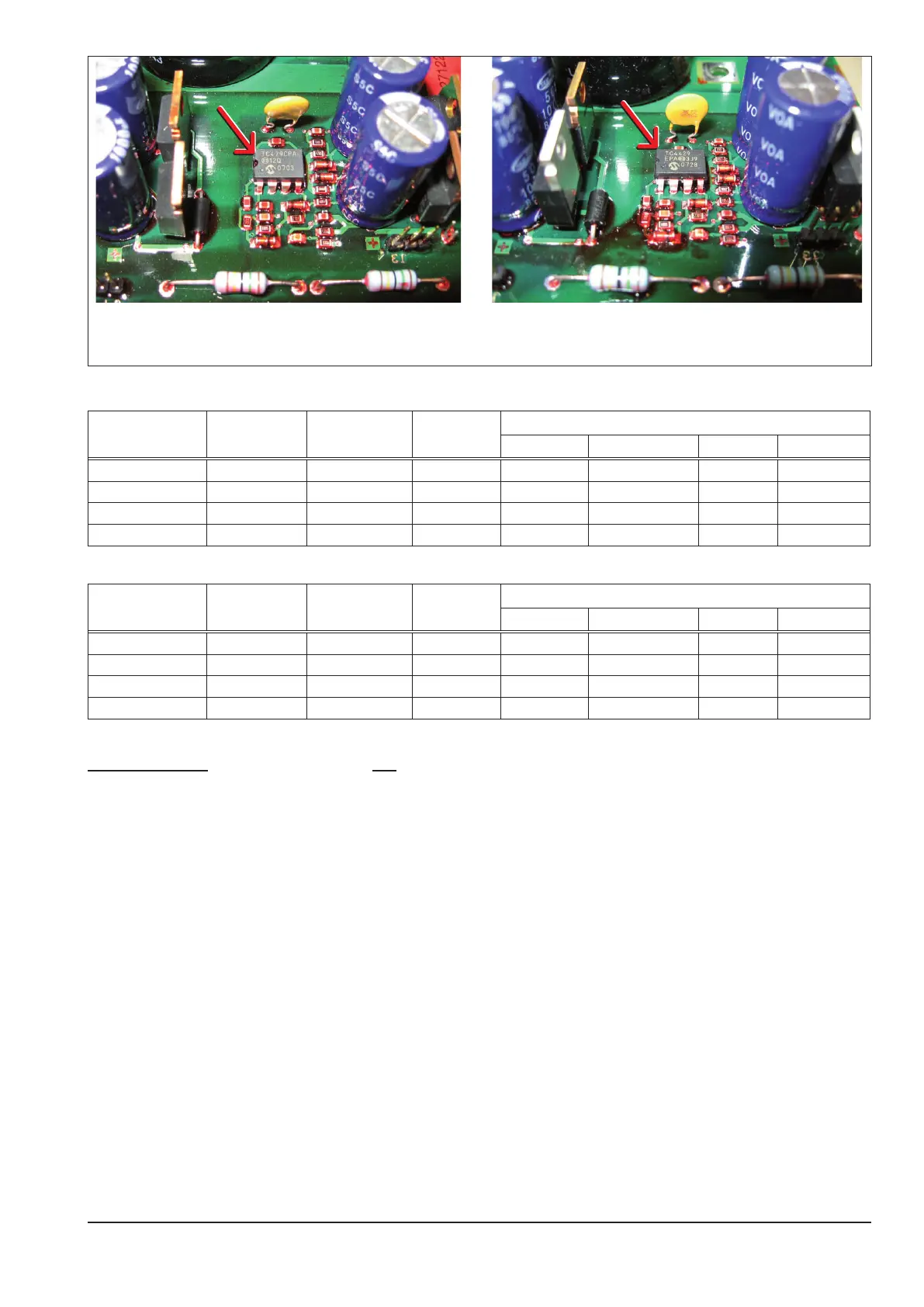

old driver IC: JC429CPA
DCDR2x with new
driver IC: TC4429
