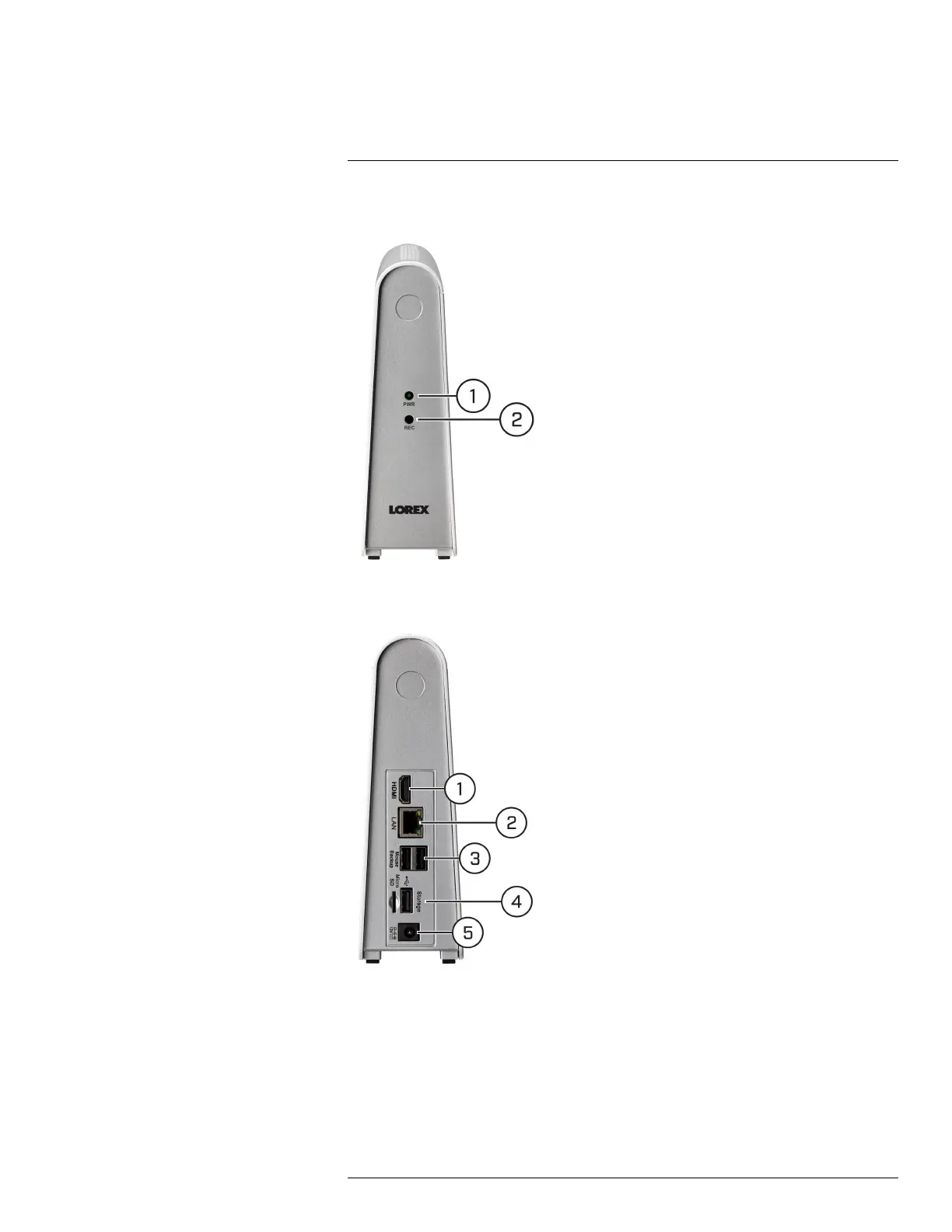

Recorder Overview3
3.1 Front Panel
1. PWR – LED Indicator: Glows to indicate the
system is on.
2. REC – LED Indicator: Glows to indicate that the
system is recording video.
3.2 Back Panel
1. HDMI: Connect the included HDMI cable to view
the system interface on an HDMI monitor or TV
(1080p output supported).
2. LAN: Connect the included Ethernet cable to a
router or switch on your network for local and re-
mote connectivity.
3. USB (Mouse / Backup): Connect the included
mouse or a USB flash drive (not included) for the
purposes of backing up recorded video.
4. microSD / Storage USB: Connect a microSD card
(included with certain configurations) or a USB
storage drive (not included) for video storage pur-
poses. For more details on storage options, see 12
Storage, page 42.
5. Power (12V): Connect the included 12V DC
power adapter.
#LX400109; r. 5.0/56381/56402; en-US 5
