Connecting the Camera
3
1. Connect an Ethernet cable of up to 300ft (91m) rated CAT5e or higher
(not included) from the LAN port on an external PoE+ switch (sold sepa-
rately on www.lorextechnology.com) to your router. Connect the power ca-
ble to the PoE+ switch and to a power outlet or surge protector.
NOTE
Terminology may vary depending on the model of PoE+ switch you have.
2. Connect the camera to the PoE+ switch using the included Ethernet cable
(or a CAT5e Ethernet cable of up to 300ft (91m)). The PoE+ switch will
provide power and video transmission the same way as your NVR.

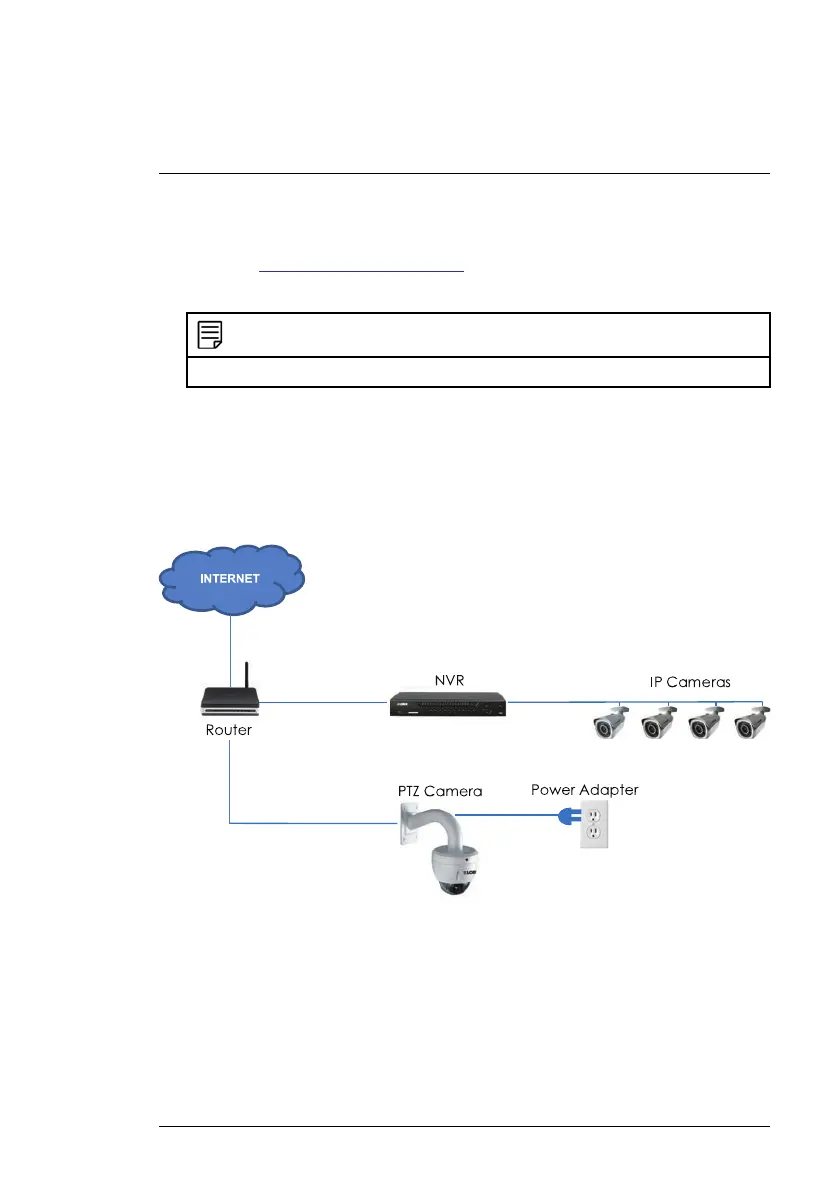

Step 1 of 2 — Option B: Connecting the camera to your local network
using power adapters:
1. Connect the camera to the included power adapter.
2. Connect the camera to a router in the same network as your NVR using
the included Ethernet cable (or an Ethernet cable of up to 300ft (91m)
rated CAT5e or higher).
#LX400020; r.41770/42005; en-US
