3 Connecting the Camera

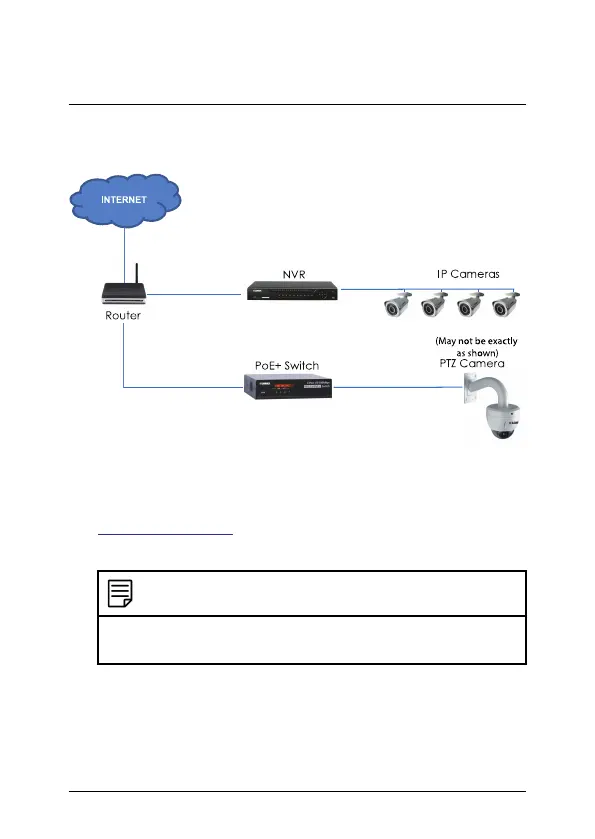

Step 1 of 2 — Option A: Connecting the camera to your local net-
work using an optional PoE+ switch:
1. Connect an Ethernet cable of up to 300ft (91m) rated CAT5e or
higher (not included) from the LAN port on an external PoE+
switch (sold separately on
lorextechnology.com) to your router. Connect the power cable to
the PoE+ switch and to a power outlet or surge protector.
NOTE
Terminology may vary depending on the model of PoE+ switch
you have.
2. Connect the camera to the PoE+ switch using the included Ether-
net cable (or a CAT5e Ethernet cable of up to 300ft (91m)). The
PoE+ switch will provide power and video transmission the same
way as your NVR.
#; r. 4.0/47037/47040; en-US 7
