Seating & Safety Restraints
Child Seat Latches (2+2 versions)

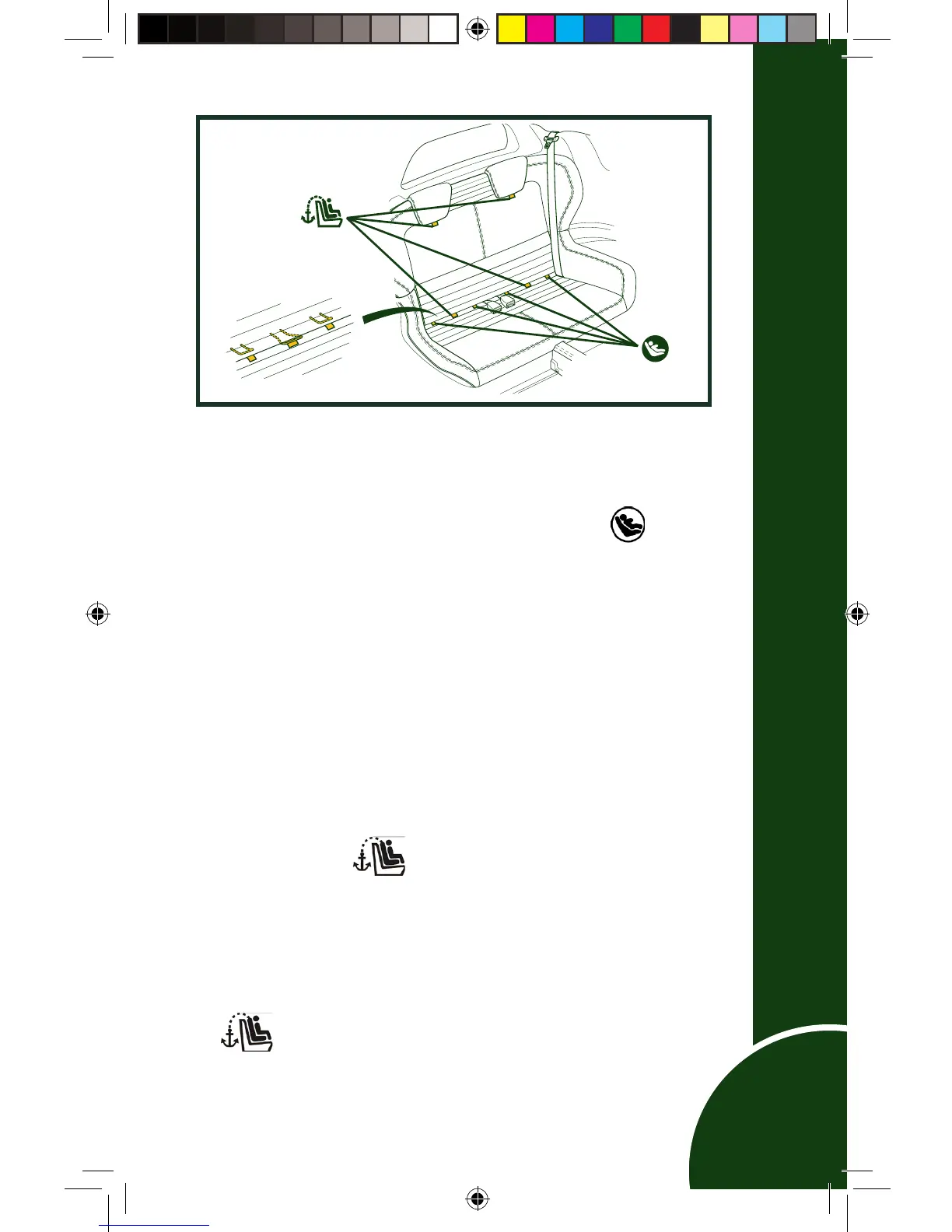

Two latch brackets are provided at each rear seat position to
allow the fitment of latch type child seats in the rear. The position
of the latch brackets is indicated by the pictogram
.
Some child seats require a top tether to secure the seat. In
such cases, the tether should be fitted in the following man-
ner:
To Fit Top Tether
1. Remove the right hand rear headrest from the rear seat by
pushing upwards to release the spring clips. If the child seat is
to be installed in the left hand rear seat, the left hand headrest
must also be removed, and the top of the backrest released
by removing the single fixing in each headrest aperture.
2. The 1 inch (25 mm) diameter steel tube running across the
bulkhead is the top tether routing device as indicated by an
adjacent symbol
. Feed the tether around the tube using
the recess available at the right hand side, and if necessary,
ease the backrest forwards to allow the tether to be slid across
to the left hand side. Refit the backrest top fixings.
3. Then feed the tether through the loop at the base of the seat
backrest. Note that this loop is also indicated by the symbol:
.
