Lowrance HOOK2 X series User Manual

Basic operation

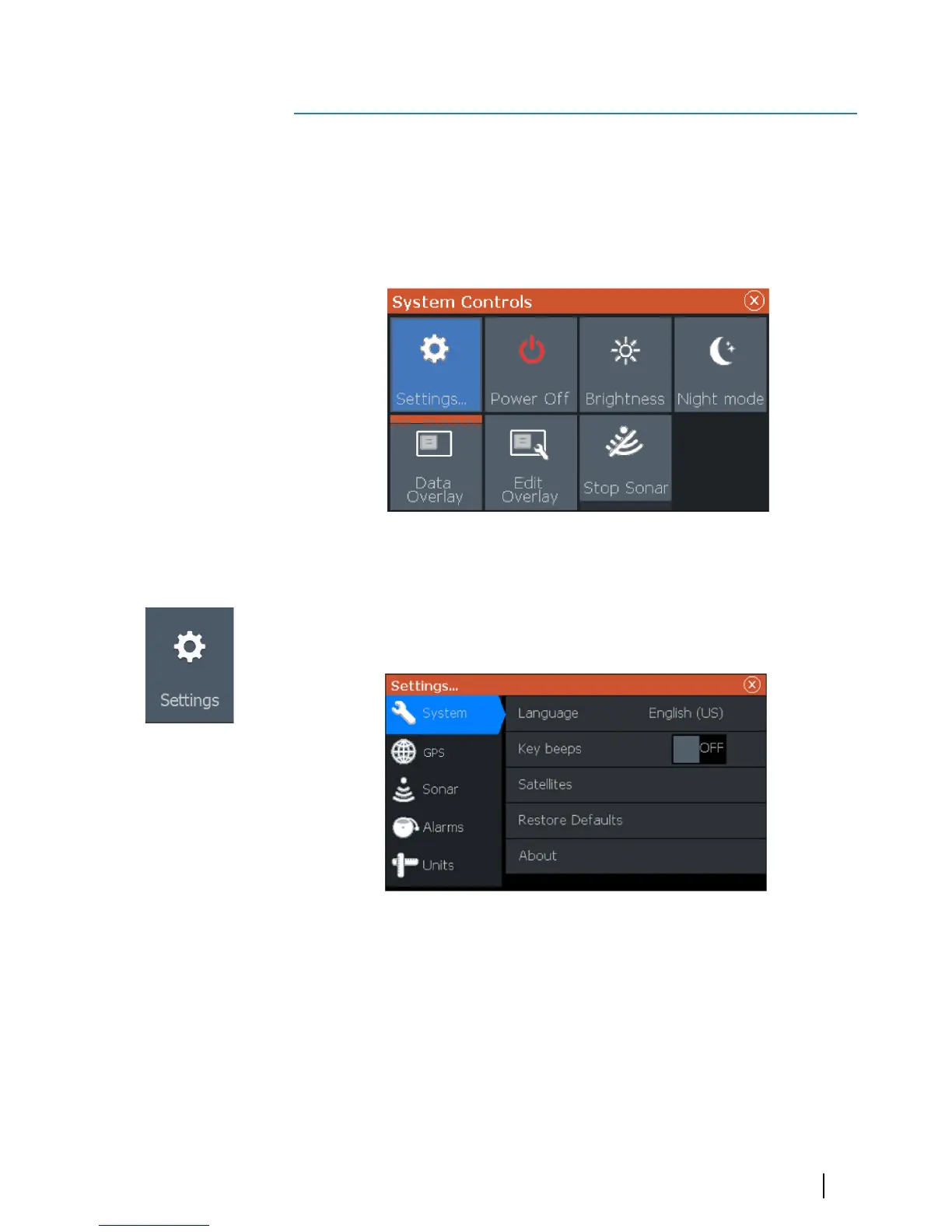

System Controls dialog
The System Controls dialog provides quick access to basic system
settings. You display the dialog by making a short press on the
Power key.
Settings
Provides access to application and system settings.
The system settings dialog available on models with GPS.
The system settings dialog available on the 4x Sonar only models.
2
Basic operation | Hook² X Series Operator Manual
11

Lowrance HOOK2 X series Specifications

General

Waterproof Rating	IPX7
Water Resistance	IPX7
Operating Temperature	-15°C to 55°C (5°F to 131°F)
Wi-Fi	No
Bluetooth	No
Display Resolution	480 x 272 pixels
Sonar Frequency	200 kHz
Power Output	200W RMS
Depth Capability	500 ft (152 m)
Storage Temperature	-20°C to +60°C
Transducer	Included
Display Size	4" or 5" or 7" (depending on model)
Sonar	Broadband Sonar
DownScan Imaging	Available on some models
GPS	Yes (on select models)
