Lowrance HOOK2 X series User Manual

GPS plotter
Ú
Note: The GPS plotter page is not available on 4x Sonar only
models.
The GPS plotter page displays your vessel’s position. On the GPS
plotter page you can plan and navigate routes, see your vessel's
trail, and place waypoints.

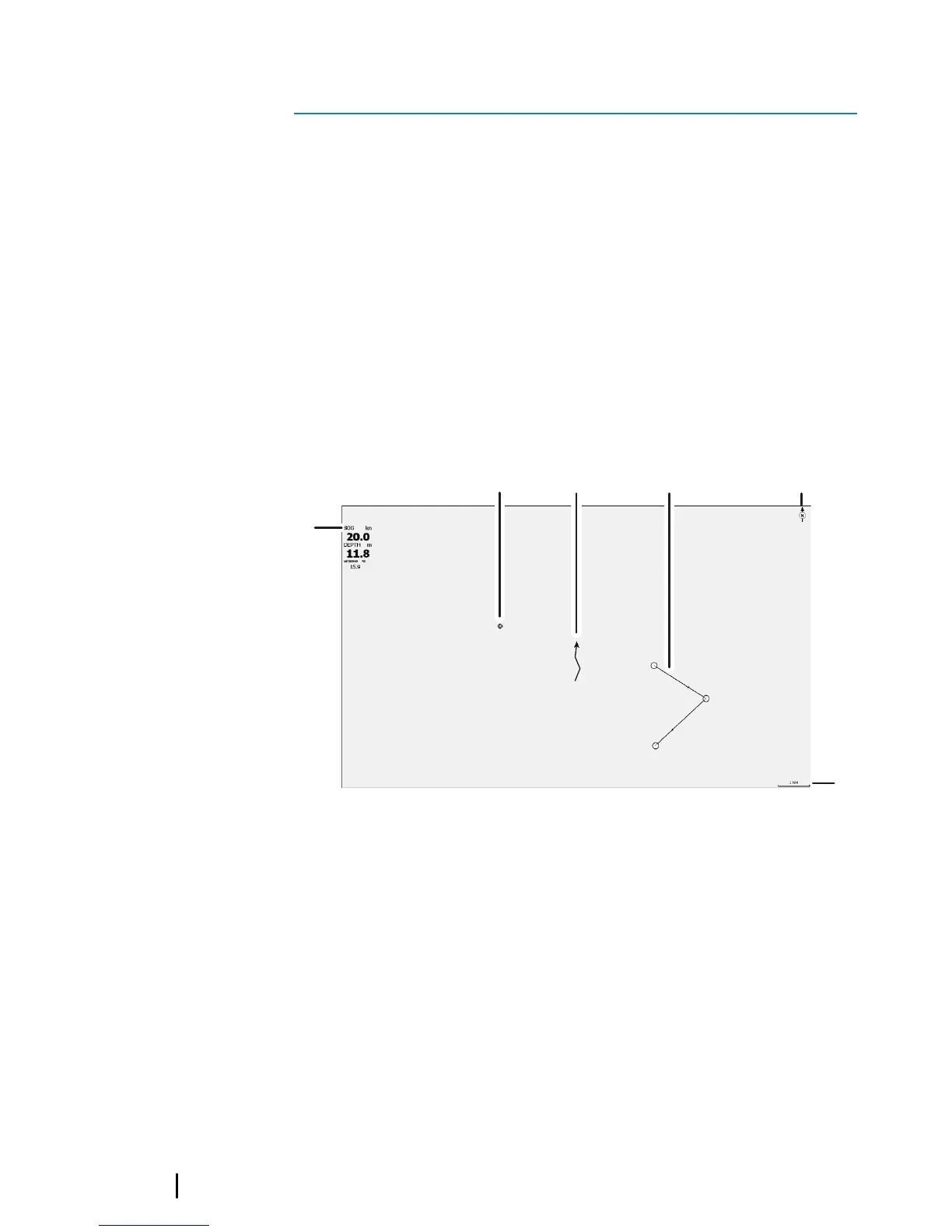

GPS plotter page
• Zoom the image by using the Zoom keys
• Pan the image in any direction by using the Arrow keys
• Display item information by positioning the cursor on an item
then selecting the Info option in the menu
1
2
3
6
4 5
1 Data overlay (Can be edited, moved or removed. Refer to
"Data Overlay" on page 12).
2 Waypoint*
3 Vessel with trail (displaying the trail is optional*)
4 Route*
5 North indicator
6 Range scale
3
14
GPS plotter | Hook² X Series Operator Manual

Lowrance HOOK2 X series Specifications

General

Waterproof Rating	IPX7
Water Resistance	IPX7
Operating Temperature	-15°C to 55°C (5°F to 131°F)
Wi-Fi	No
Bluetooth	No
Display Resolution	480 x 272 pixels
Sonar Frequency	200 kHz
Power Output	200W RMS
Depth Capability	500 ft (152 m)
Storage Temperature	-20°C to +60°C
Transducer	Included
Display Size	4" or 5" or 7" (depending on model)
Sonar	Broadband Sonar
DownScan Imaging	Available on some models
GPS	Yes (on select models)
