Lowrance HOOK2 X series User Manual

Introduction

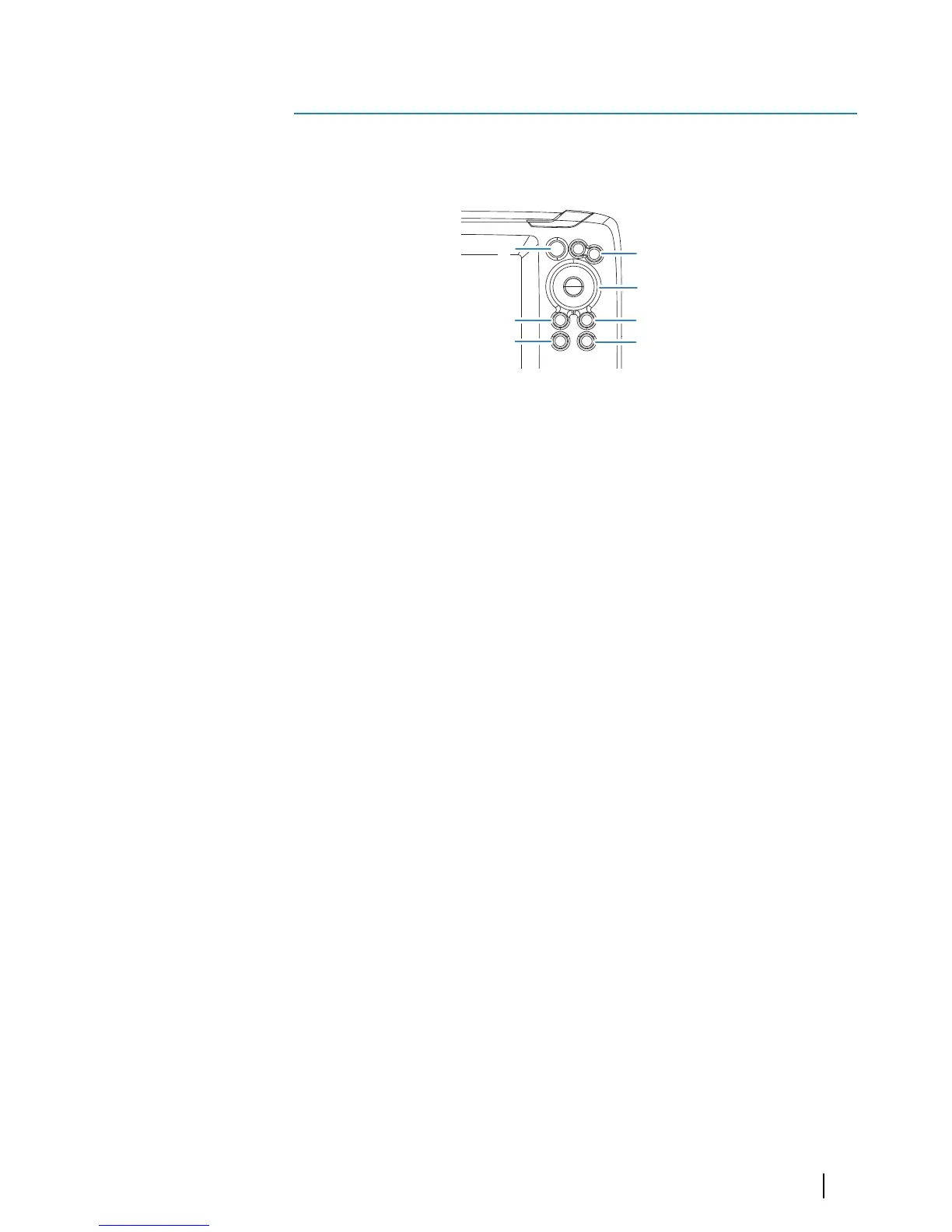

Front controls
2
3
5
4
6
7
1
1 Pages - Press to toggle between available pages.
2 Zoom in/out - Press to zoom the image.
Press both keys simultaneous to create a MOB (Man Over
Board) waypoint at the vessel's position.
Ú
Note: Creating a MOB waypoint is not available on 4x
Sonar only models.
3 Arrows - Press to pan the image in any direction.
On the GPS Plotter page: press to position the cursor on the
image.
Ú
Note: The GPS Plotter page is not available on 4x Sonar
only models.
In menus and dialogs: press to highlight an option.
4 Exit (X) - In menus and dialogs: press to return to previous
menu level and to exit a dialog.
5 Menu/Enter - With no menu or dialog active: press to
display the menu.
In menus and dialogs: press to confirm a selection.
6 Cursor/Waypoint - On the GPS Plotter page: Press to
activate/deactivate the cursor.
On any page: press and hold to save a waypoint.
Ú
Note: On 4x Sonar only models this is a Fish ID toggle
key. Press to toggle between fish arches and fish
symbols on the sonar image.
7 Power - Press to display the System Controls dialog.
Press and hold to power the unit on/off.
1
Introduction | Hook² X Series Operator Manual
9

Lowrance HOOK2 X series Specifications

General

Waterproof Rating	IPX7
Water Resistance	IPX7
Operating Temperature	-15°C to 55°C (5°F to 131°F)
Wi-Fi	No
Bluetooth	No
Display Resolution	480 x 272 pixels
Sonar Frequency	200 kHz
Power Output	200W RMS
Depth Capability	500 ft (152 m)
Storage Temperature	-20°C to +60°C
Transducer	Included
Display Size	4" or 5" or 7" (depending on model)
Sonar	Broadband Sonar
DownScan Imaging	Available on some models
GPS	Yes (on select models)
