The 3D Image

The 3D view is displayed when the 3D checkbox is selected.

Note: When switching from 2D view to 3D view the 2D

view option has to be set to Left, Right or Left + Right. If

Down is selected, the 3D checkbox is unavailable.

In 3D view, the sea floor image is built up in real-time directly under

the vessel as the boat moves. If you are not moving the image will

remain stagnant. You can also see other underwater objects and

clusters of fish. The 3D view shows both the left and right channels

of data.

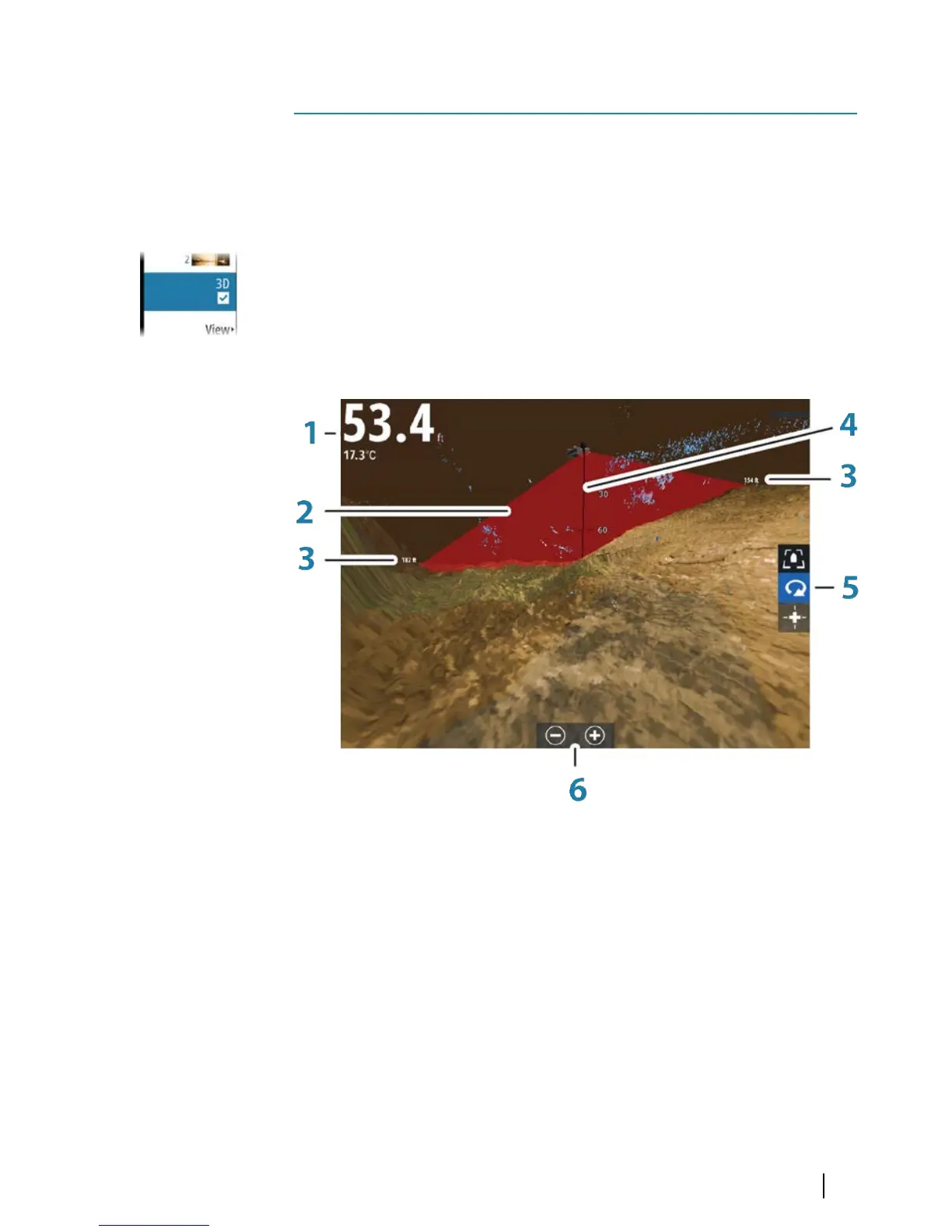

1 Depth and temperature

2 Transducer beam

3 Range

4 Depth indication line

5 3D panel buttons

6 Zoom panel buttons

Note: If a page includes more than one StructureScan

panel, only one of them can have the 3D view at one time.

The 3D Image | StructureScan 3D User Guide
