About StructureScan 3D
StructureScan 3D is a multi-beam sonar technology that allows
anglers to see underwater structure and bottom contours in
customizable, three-dimensional views.
The StructureScan 3D module supports both 2D and 3D views:
• 2D Sidescan views and 3D view provide a 182 m (600 ft) wide
coverage image to the left and right side of your vessel - 365 m
(1200 ft) in total
• 2D Downscan view provides an image directly below your
vessel, down to 60 m (200 ft)
You must have a compatible software version on your display to use
the StructureScan 3D features. Refer to your display’s website for
information about which software version that supports the
StructureScan 3D.

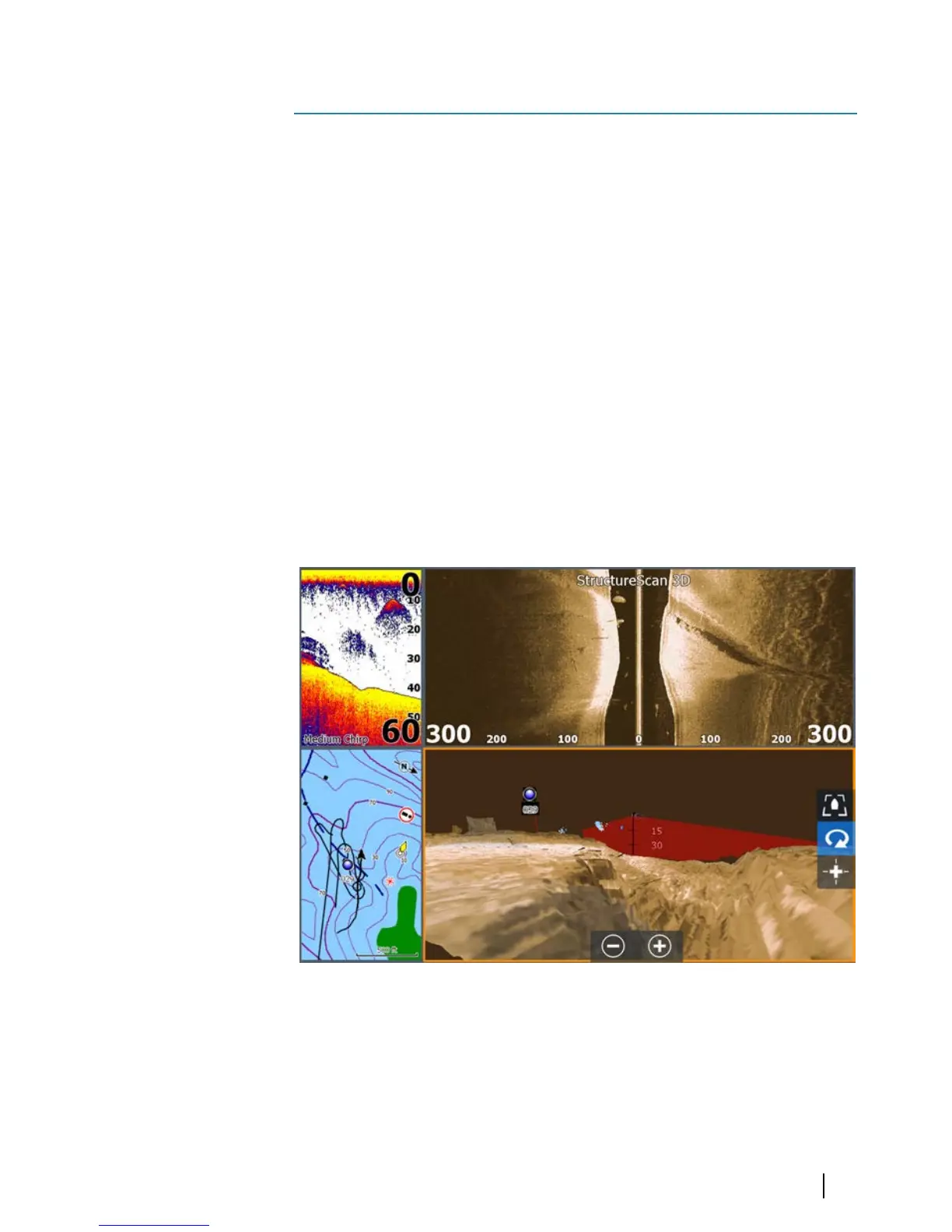

The StructureScan 3D page is accessed by the StructureScan page
icon on the Home page. A StructureScan panel can also be part of a
multi-panel page as shown in the example.
Separate Installation manuals are delivered for the StructureScan 3D
module and for the StructureScan 3D transducer. Refer to these
documents for installation instructions.
The Operator manual delivered with your MFD (Multi-Function
Display: HDS Gen3, NSS/NSO evo2) describes general operation of
1
About StructureScan 3D | StructureScan 3D User Guide
