Lowrance StructureScan User Manual

10
Structure Options
To make adjustments to StructureScan display
settings, highlight Structure Options on the
StructureScan menu and press ENTER.
Structure Surface Clarity
Adjusts sensitivity near the surface of the water to reduce or eliminate onscreen
clutter caused by wave action, boat wakes, temperature inversion, etc.
To adjust Surface Clarity:
Select 1. Structure Surface Clarity from the Structure Options menu
and press ENTER.
Use the keypad to select the desired setting and press 2. ENTER.
Structure Noise Rejection
Reduces onscreen clutter caused by bilge pumps, engine vibration, air bubbles or
other transducers on your boat.
To turn Structure Noise Rejection On/Off,
highlight Structure Noise Rejection on the
Structure Options menu and press ENTER.
Flip Left/Right
Controls the orientation of the sidescan/downscan onscreen display.
If the transducer is installed with the cabled end pointing away from the back of
your boat or pointing away from the front of your trolling motor, you must turn on
Flip Left/Right.

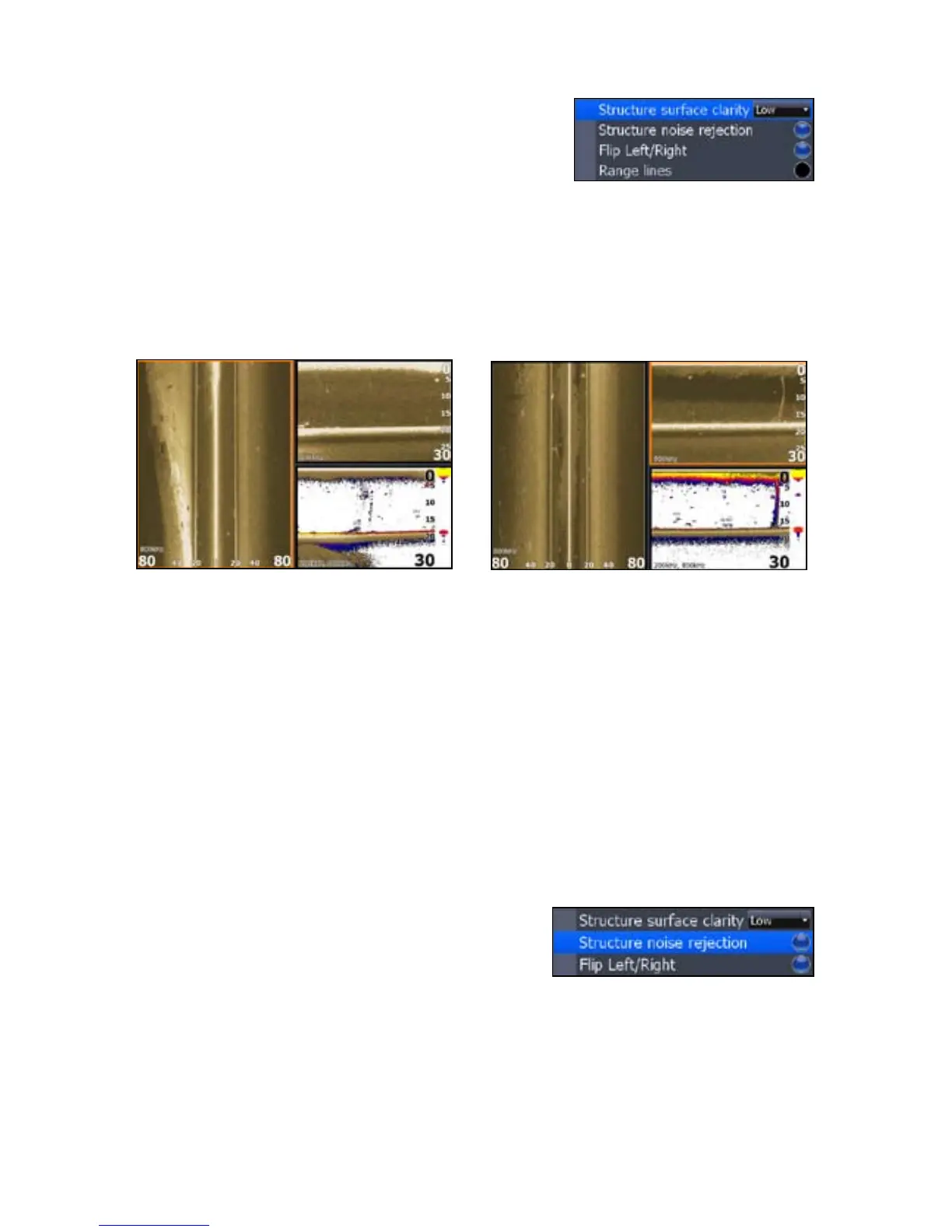

Structure Surface Clarity turned off.
Structure Surface Clarity on High.
Structure Options menu

Lowrance StructureScan Specifications

General

Temperature Sensor	Yes
Frequency	455 kHz / 800 kHz
Cable Length	20 ft
Compatibility	Lowrance HDS Gen2, Gen3, Carbon, Elite Ti, Hook2
Mounting Type	Transom Mount
