Displaying Sidescan and Downscan
Sidescan and Downscan can be shown on the display individually or together in
different split screen congurations.
To display Sidescan:
Press the 1. PAGES key.
Use the keypad to rotate the 2.
carousel menu until Structure is
selected.
Press 3. ENTER.
To display Downscan:
From the Sidescan onscreen display, press 1. MENU.
Select 2. Structure Options and press ENTER.
Highlight 3. View and press ENTER.
Select 4. Down and press ENTER.
Screen Congurations
StructureScan can be shown with other pages in various screen congurations
including: splitscreen, tri-screen (HDS-8/10 only) and quad screen (HDS-8/10
only).
NOTE: To access the StructureScan menu, press MENU from a
StructureScan page or from an active StructureScan panel.

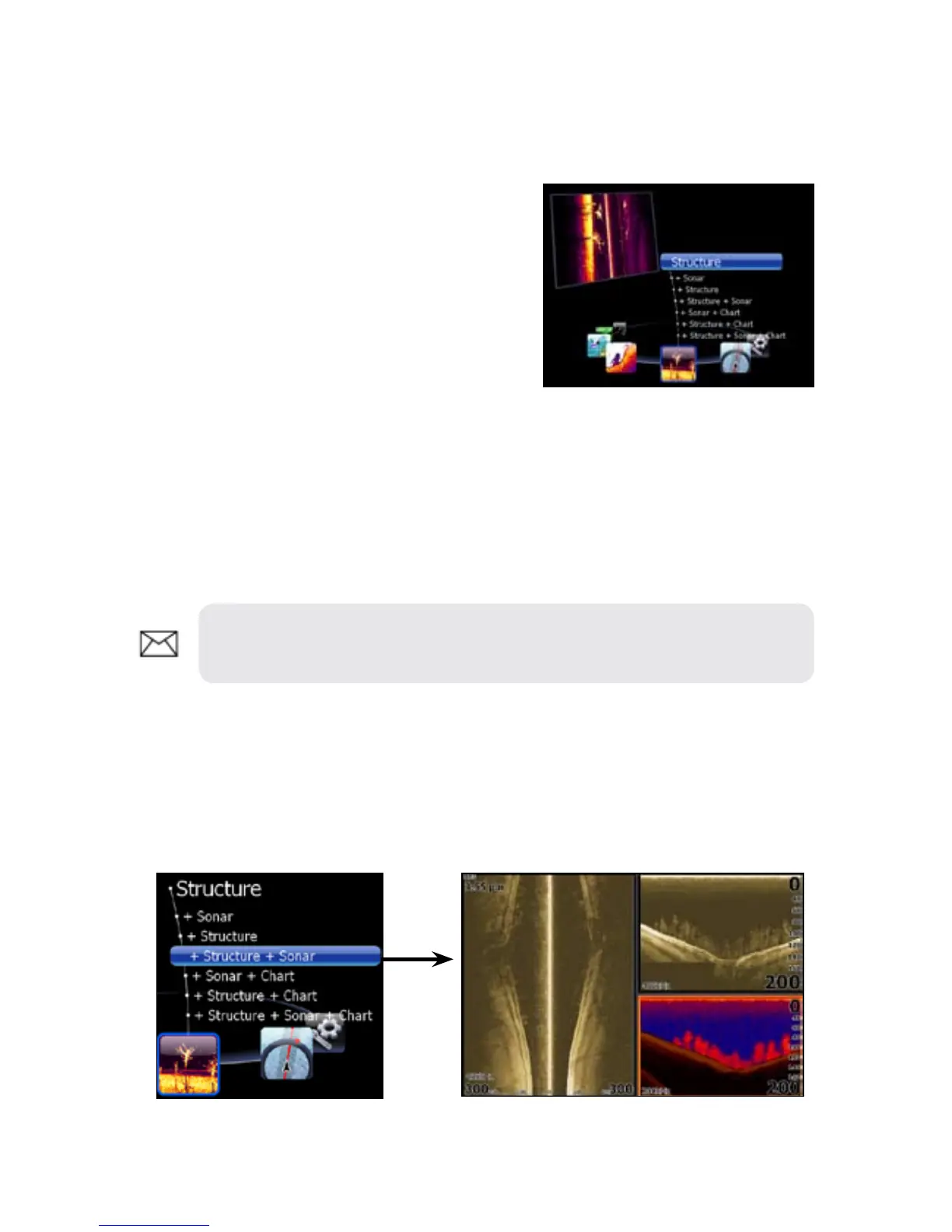

Selecting Structure + Sonar from the Structure menu displays a tri-screen
with two StructureScan panels and a sonar panel.

Lowrance StructureScan Specifications

General

Temperature Sensor	Yes
Frequency	455 kHz / 800 kHz
Cable Length	20 ft
Compatibility	Lowrance HDS Gen2, Gen3, Carbon, Elite Ti, Hook2
Mounting Type	Transom Mount
