Lowrance StructureScan User Manual

7

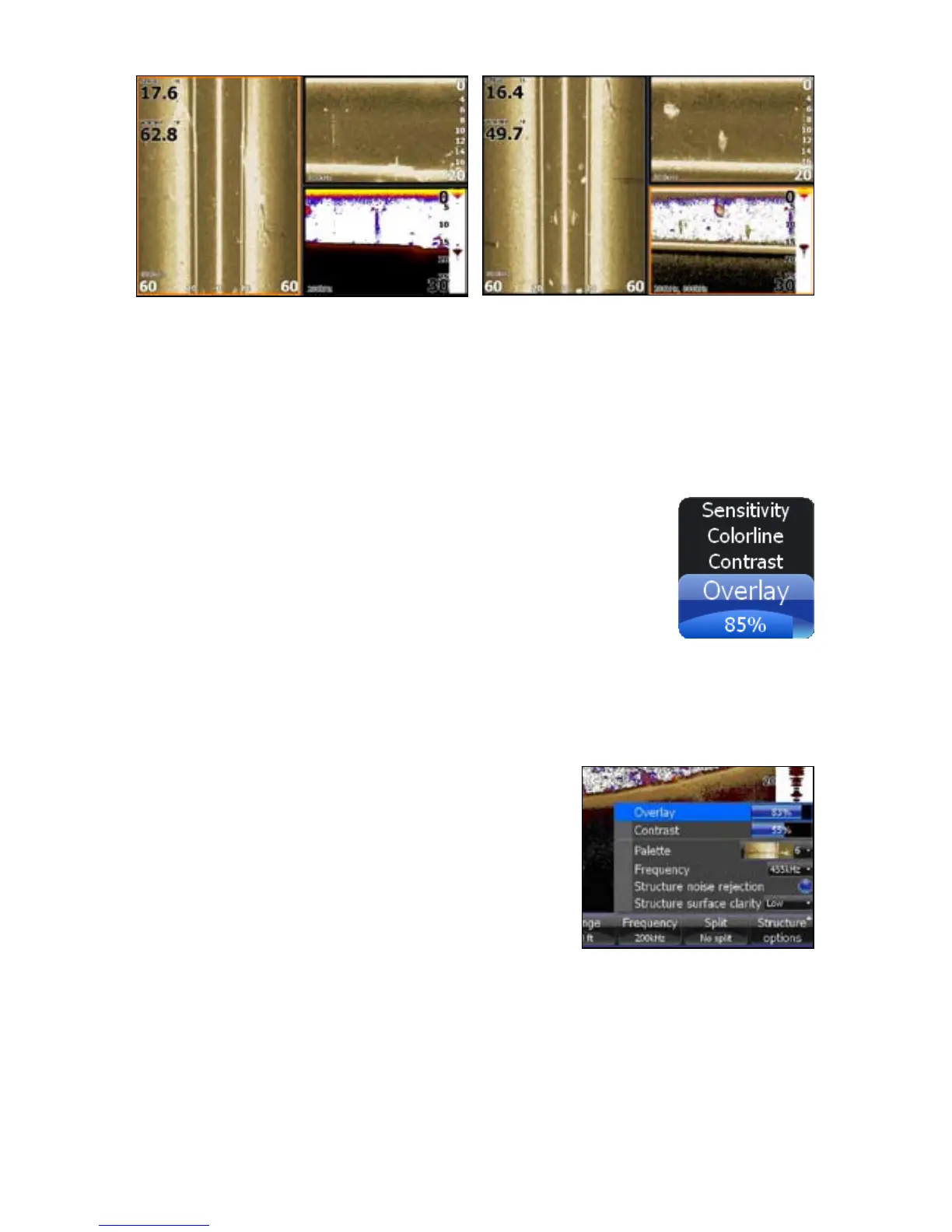

Overlay Transparency
Controls the transparency of Downscan overlay on the sonar page, allowing you to
select an overlay level best suited for current water conditions.
To make adjustments to Overlay:
Make sure the sonar panel is the active panel. 1.
Press MENU.
Select 2. Adjust and press ENTER.
Use the keypad to highlight 3. Overlay.
Press the keypad left/right to decrease/increase 4.
overlay transparency.
StructureScan Options Softkey
If you have an HDS-8 or HDS-10, you will notice
the Stop Sonar softkey is replaced with the Structure
Options softkey when Overlay Downscan is turned
on.
That gives you one-touch access to StructureScan
display options and settings, including the Overlay
adjustment scrollbar.
Downscan overlay set to 0%.
Downscan overlay set to 85%

Lowrance StructureScan Specifications

General

Temperature Sensor	Yes
Frequency	455 kHz / 800 kHz
Cable Length	20 ft
Compatibility	Lowrance HDS Gen2, Gen3, Carbon, Elite Ti, Hook2
Mounting Type	Transom Mount
