Lowrance StructureScan User Manual

11
That will ensure that what is on the left or right side of
your boat underwater, will be shown on the corresponding
side of the screen on your display unit.
To turn on/off Flip Left/Right, highlight Flip Left/Right
on the Structure Options menu and press ENTER.
Range Lines
Onscreen lines that make it easier to estimate
depth of sonar targets (Downscan) or distance
from sonar targets (Sidescan).
To turn on/off Range Lines, select Range
Lines on the Structure Options menu and press
ENTER.
Measure Distance
Measures the size of underwater objects and the distance from one object/location
to another object/location.
To Measure Distance:
Press 1. MENU from a Sonar or StructureScan page.
Highlight 2. Measure Distance and press ENTER.
Use the keypad to move the cursor into the desired position.3.
To measure the distance from the selected location to another object 4.
or location press ENTER and move the cursor.
Press 5. EXIT to return to normal operation.

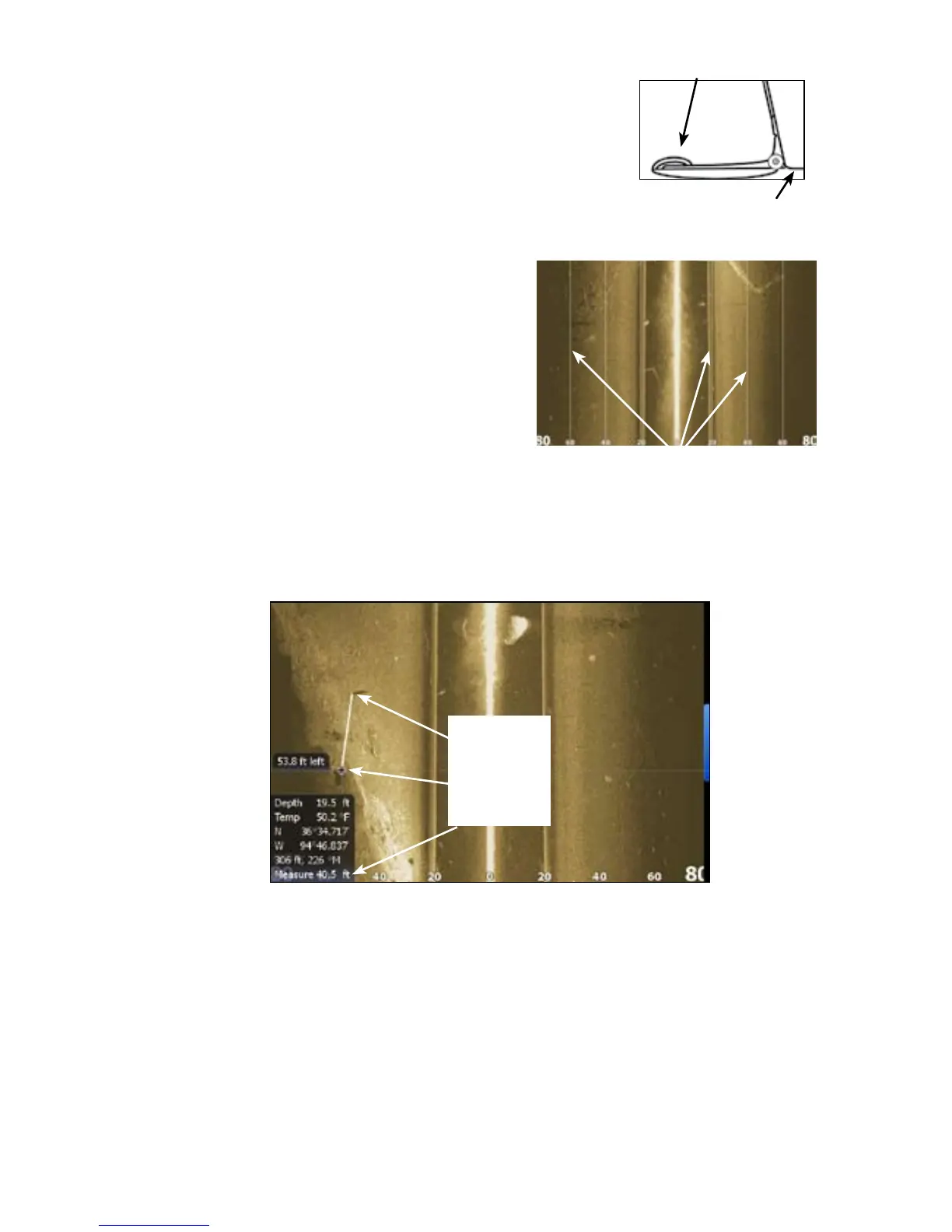

Cabled end of transducer
Back of the boat
Range Lines shown in Sidescan
view.
The
selected
locations
are 40.5 feet
apart.

Lowrance StructureScan Specifications

General

Temperature Sensor	Yes
Frequency	455 kHz / 800 kHz
Cable Length	20 ft
Compatibility	Lowrance HDS Gen2, Gen3, Carbon, Elite Ti, Hook2
Mounting Type	Transom Mount
