L-STAT User Manual 10 LOYTEC
Version 1.0 LOYTEC electronics GmbH

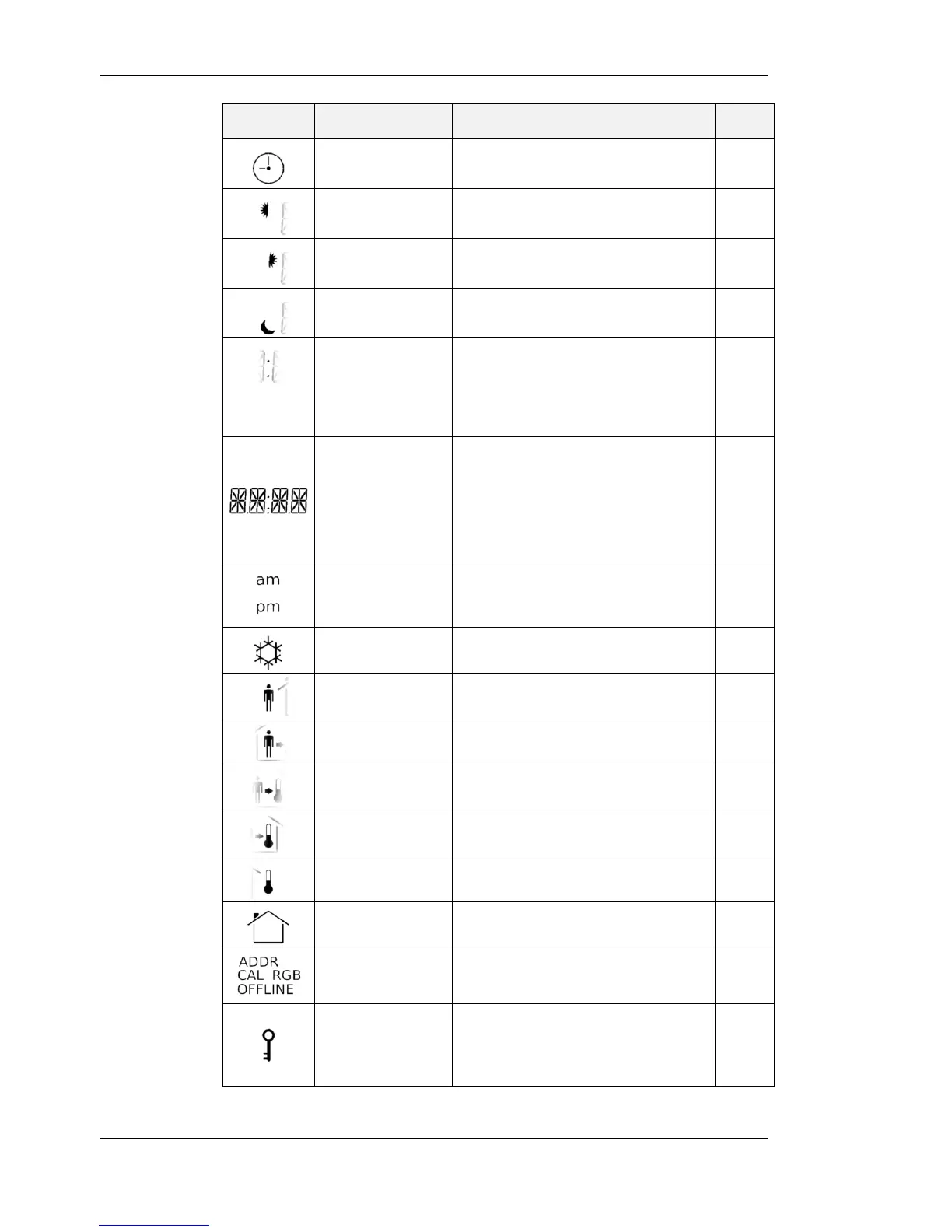

Segment
Name
Description
Direct
Access
clock
Clock symbol

sun_left
Left half of sun symbol

sun_right
Right half of sun symbol

moon
Moon symbol

colon
Colon of the secondary display
It will only be accessible if the
secondary_display_direct_access_enabled
flag at the config_flags register at address
192 (Table 22 at Page 33) is set.

secondary_display
The secondary display is used to show
time, date and/or a short text depending
on the semantic meaning of a display
value or set point. It can also be directly
accessed via the Modbus register:
sec_display_direct_access_string
(see Table 23 on Page 34).

am_pm_symbols
These symbols are not directly accessible
but are shown along with the time when
12h time format has been selected.
-
cool
Cooling symbol

man_out
Man outside the house (no occupancy)

man_in
Man inside the house (occupancy)

arrow
Arrow symbol (to represent a set point)

temp_in
Temperature inside

temp_out
Tempareture outside

house
House symbol

text_symbols
The text symbols are not accessible via
Modbus but are shown at certain modes
or events.
-
key
The key symbol is primarily used to show
that a set point is pincode protected but it
can also be accessed via the symbol direct
access registers.

