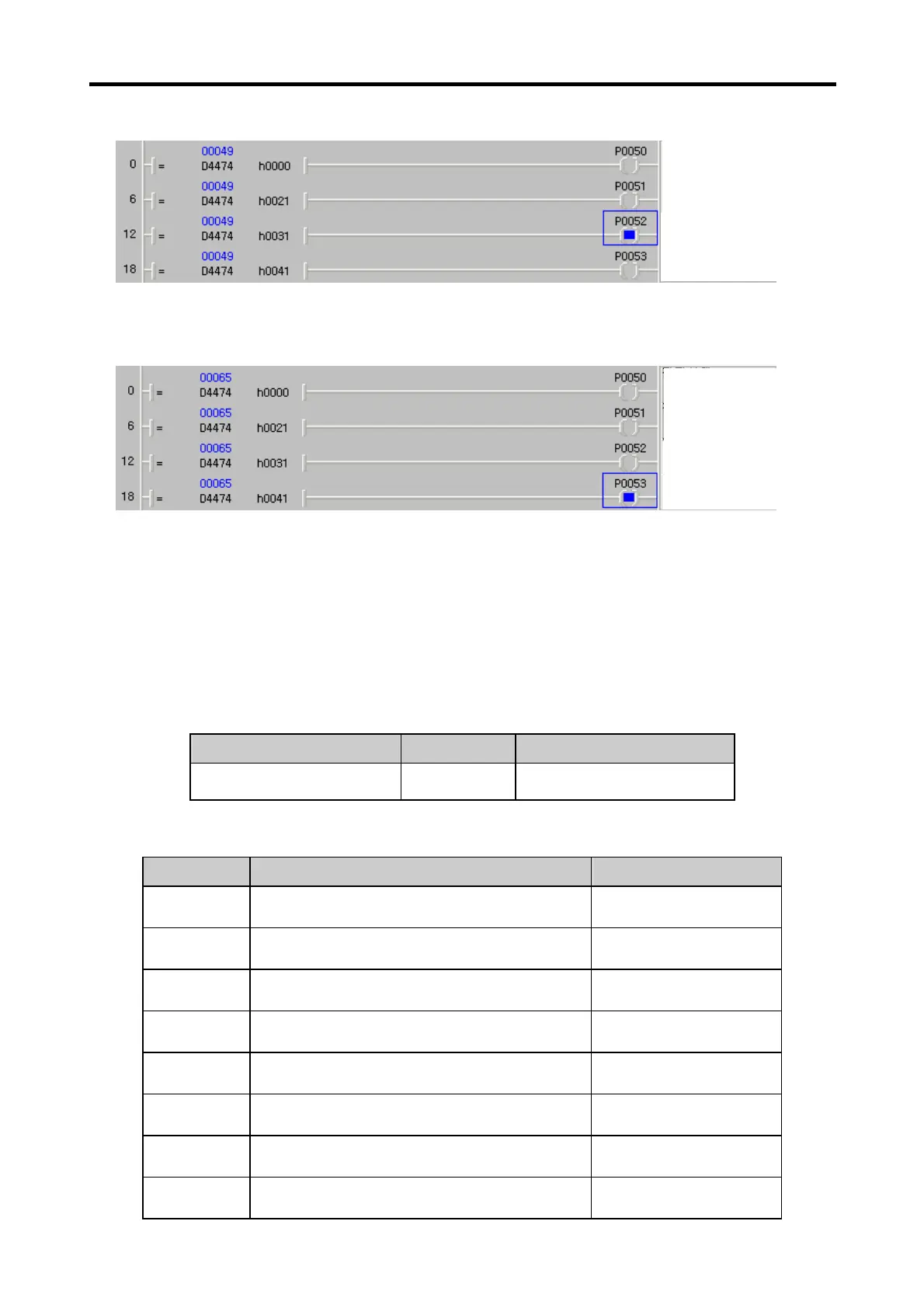

6) During forward constant speed, the D4474 is h0031 (see common area of inverter)
7) With the digital loader of the inverter, change DRV01 (Cmd Frequency) to 5.00 Hz for forward
deceleration. During forward deceleration, the D4474 is h0041 (see common area of inverter)
(3) Monitoring the current output frequency of inverter
It is possible to monitor the current output frequency of iS7 inverter, and make out a ladder program for the
sequence suitable for the operation frequency in PLC option card.
▶ Common area of inverter
Referring to the parameters (exclusively for monitoring) of inverter common area in the “App. 4-1, page 4,
Appendix,” the addresses of the common area of the inverter’s current output frequencies are as follows.
Common Area Address Function Detailed Description
0x0311
Output
Frequency
Current Output Frequency
Monitoring
▶ Special D registers of PLC for inverter status monitoring corresponding to APO76 ~ 83
Register Use of the Register Remark
D4474
Data of common area parameter address is
saved set up by APO76 (PLC Rd Data1).
Inverter → PLC option
(Monitoring)
D4475
Data of common area parameter address is
saved set up by APO77 (PLC Rd Data2).
Inverter → PLC option
(Monitoring)
D4476
Data of common area parameter address is
saved set up by APO78 (PLC Rd Data3).
Inverter → PLC option
(Monitoring)
D4477
Data of common area parameter address is
saved set up by APO79 (PLC Rd Data4).
Inverter → PLC option
(Monitoring)
D4478
Data of common area parameter address is
saved set up by APO80 (PLC Rd Data5).
Inverter → PLC option
(Monitoring)
D4479
Data of common area parameter address is
saved set up by APO81 (PLC Rd Data6).
Inverter → PLC option
(Monitoring)
D4480
Data of common area parameter address is
saved set up by APO82 (PLC Rd Data7).
Inverter → PLC option
(Monitoring)
D4481
Data of common area parameter address is
saved set up by APO83 (PLC Rd Data8).
Inverter → PLC option
(Monitoring)
Stop Status
Forward Accelerating
Forward Decelerating
Constant Speed for
Forward
Stop Status
Forward Accelerating
Forward Decelerating
Constant Speed for
Forward
