Installing Your Ultra320 SCSI Host Adapter 2-3
Version 2.3 Copyright © 2002–2004, 2006 by LSI Logic Corporation. All rights reserved.
2.1.2 Inserting the Host Adapter
Follow these steps to install your Ultra320 SCSI host adapter in the
PC mainboard.
Step 1. Remove the blank bracket panel on the back of the computer that
is aligned with the PCI/PCI-X/PCI Express slot you have selected.
Save the bracket screw.
Step 2. Carefully insert the edge connector into the PCI Express slot.
Caution
: Apply even pressure to both top corners of the board while
inserting it, as shown in Figure 2.2.
Caution
: Do not apply pressure to the center of the board, or to any
add-on cards that are connected to the host bus adapter.

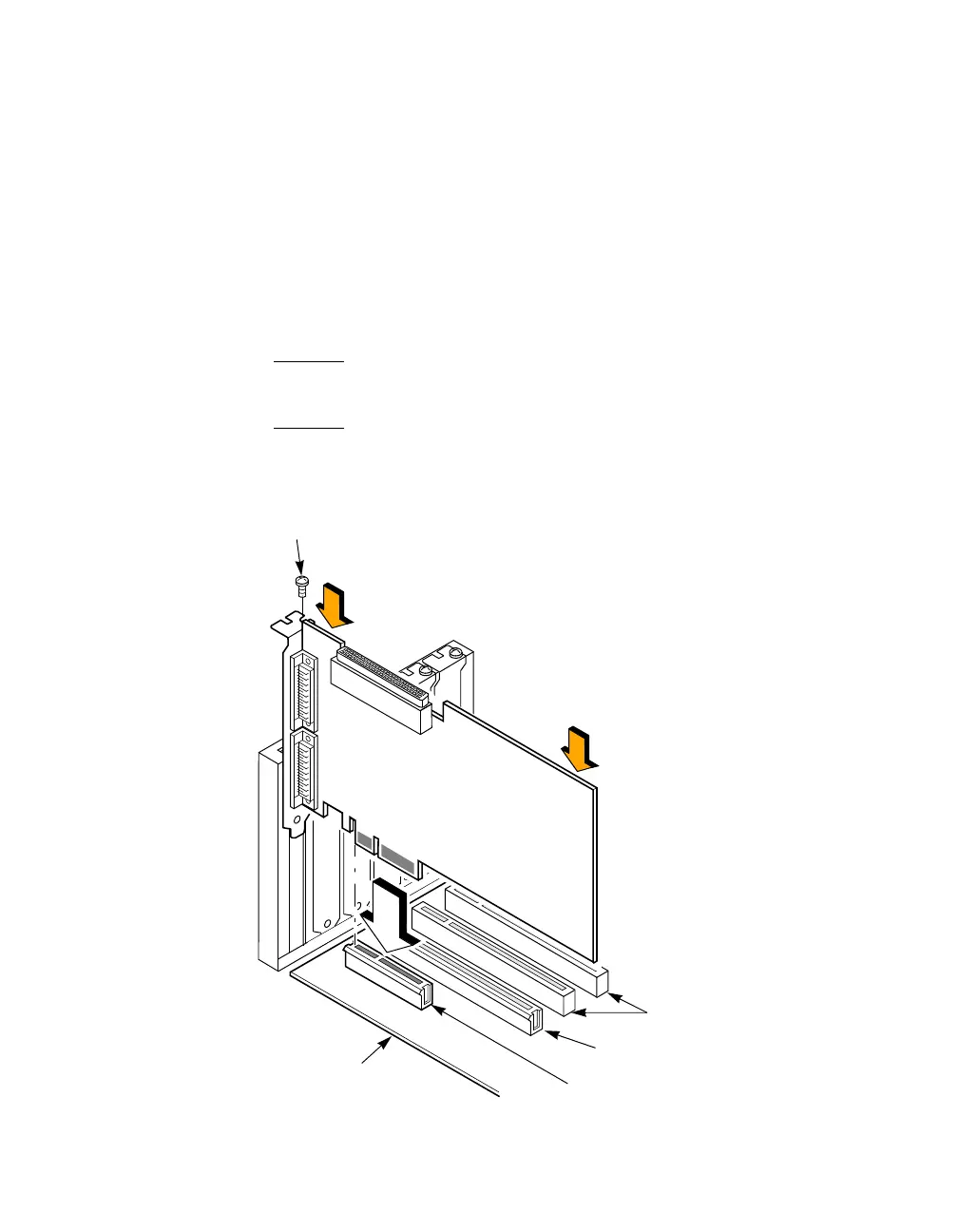

Figure 2.2 Inserting the Host Adapter
PCI Connectors
Edge of
Motherboard
Bracket
crew
PCI Express
Connector x16
PCI Express
Connector x4
Press Here
Press Here
To Next Page
