Connecting SCSI Devices 2-9
Version 2.3 Copyright © 2002–2004, 2006 by LSI Logic Corporation. All rights reserved.
2.3.3 Connecting External SCSI Devices
This section provides step-by-step instructions for connecting external
SCSI devices. Refer to Section 2.2.2, “External SCSI Cable,” on page 2-5
for examples of external cables.
Step 1. Plug the 68-pin connector on one end of a shielded external
SCSI cable into the host adapter’s external SCSI connector.
This connector is exposed on the back panel of your computer.
Step 2. Plug the 68-pin connector on the other end of the shielded
external SCSI cable into the SCSI connector on the first
external SCSI device.
Figure 2.11 shows how to connect a single external SCSI device.
If you have the correct cable, it matches the external connector.

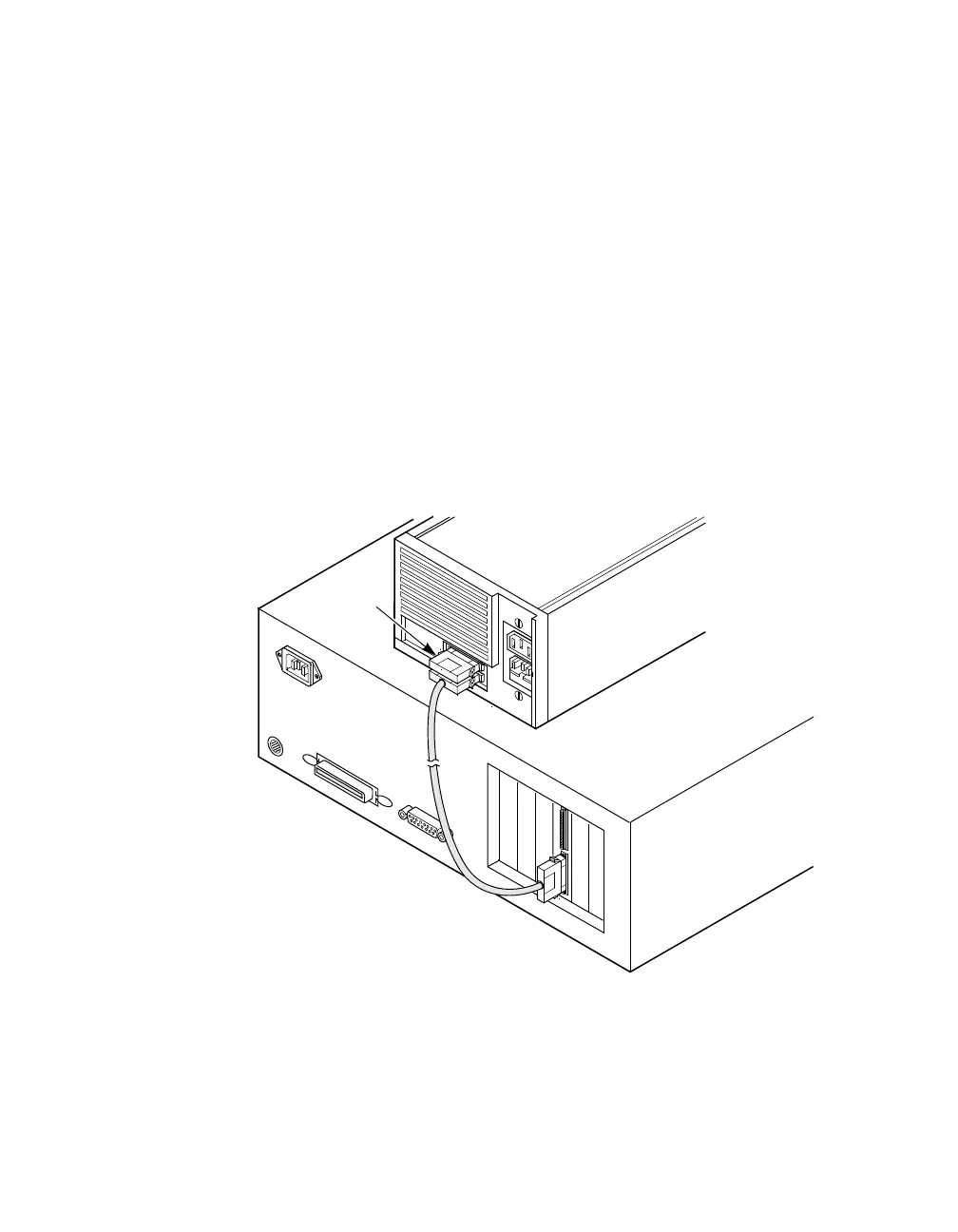

Figure 2.11 Connecting One External SCSI Device
Terminator
To Next Page
