Figure 3.5 illustrates the LSI22320 series of host adapter, and Figure 3.6
illustrates the LSI22320T host adapter.

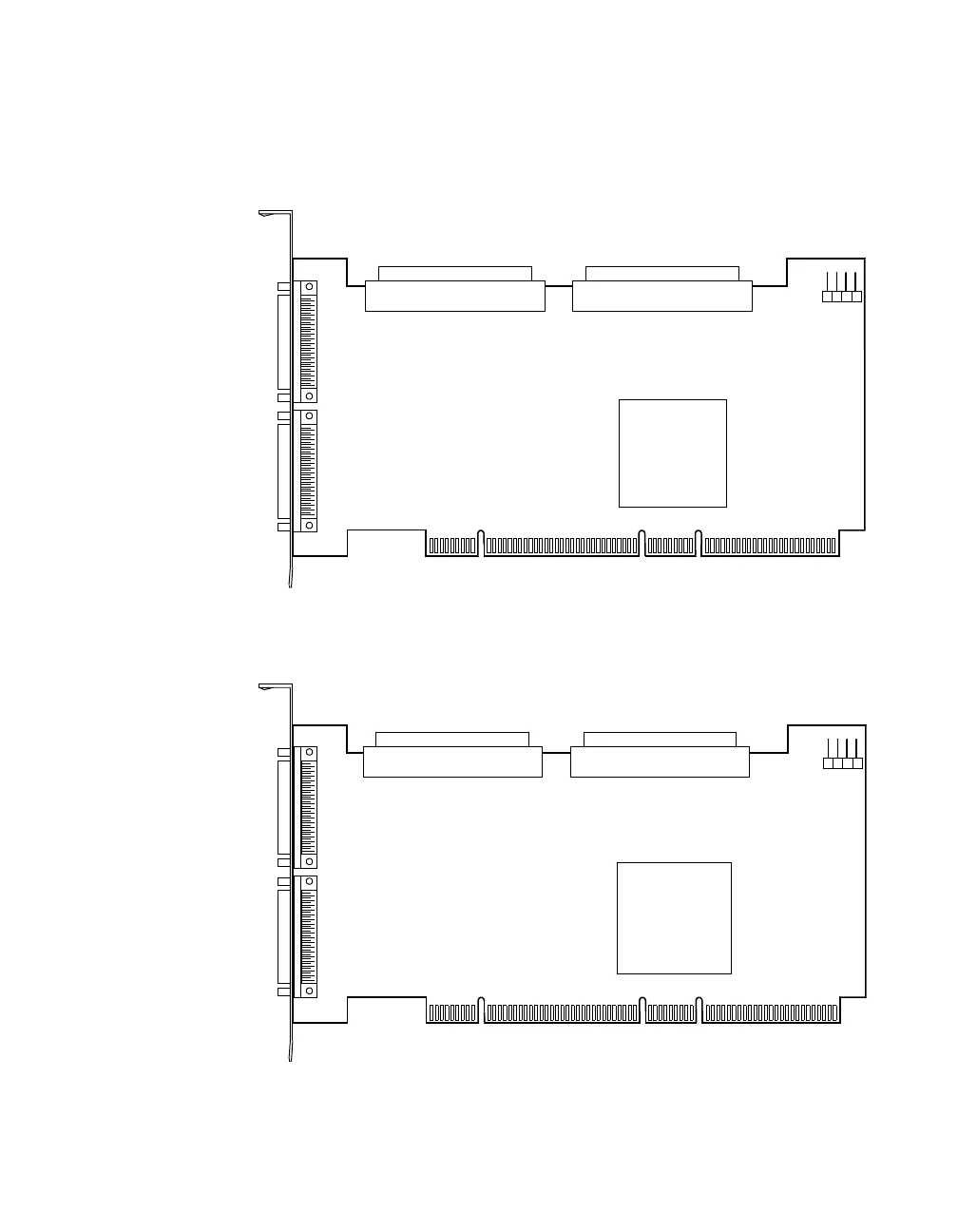

Figure 3.5 LSI22320 and LSI22320-R Host Adapter Drawing
Figure 3.6 LSI22320T Host Adapter Drawing
J1 – PCI and PCI-X
Channel B
Channel A
J5
J6
J3
LSI53C1030
J4
Ultra320 SCSI LVD/SE
J2
Ultra320 SCSI LVD/SE
Channel A
Channel B
Ultra320 SCSI LVD/SE
Ultra320 SCSI LVD/SE
J1 – PCI and PCI-X
Channel B
Channel A
J5
J6
J3
LSI53C1030T
J4
Ultra320 SCSI LVD/SE
J2
Ultra320 SCSI LVD/SE
Channel A
Channel B
Ultra320 SCSI LVD/SE
Ultra320 SCSI LVD/SE
