2.2.2 External SCSI Cable
You must connect all external SCSI devices to the host adapter with
shielded cables. Figures 2.5 to 2.7 are examples of external SCSI cables.
Select the correct 68-pin cable for your devices.

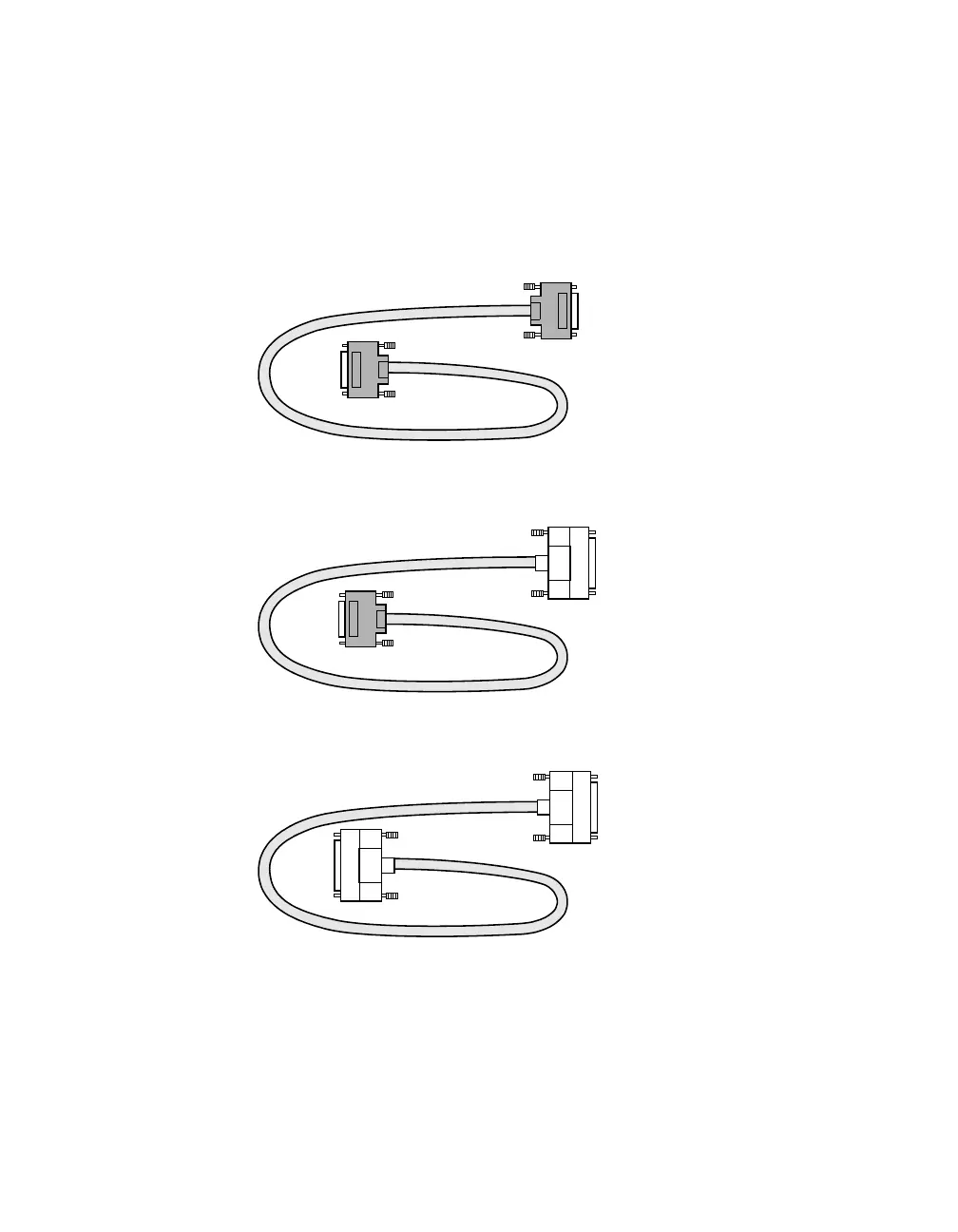

Figure 2.5 SCSI Cable – 68-Pin VHDCI to 68-Pin VHDCI
Figure 2.6 SCSI Cable – 68-Pin VHDCI to 68-Pin HD
Figure 2.7 SCSI Cable – 68-Pin HD to 68-Pin HD
