2-10 Detailed Host Adapter Installation
Version 2.3 Copyright © 2002–2004, 2006 by LSI Logic Corporation. All rights reserved.
Step 3. Connect any additional SCSI devices to one another with
shielded external SCSI cables. You need a separate SCSI
cable for each additional device.

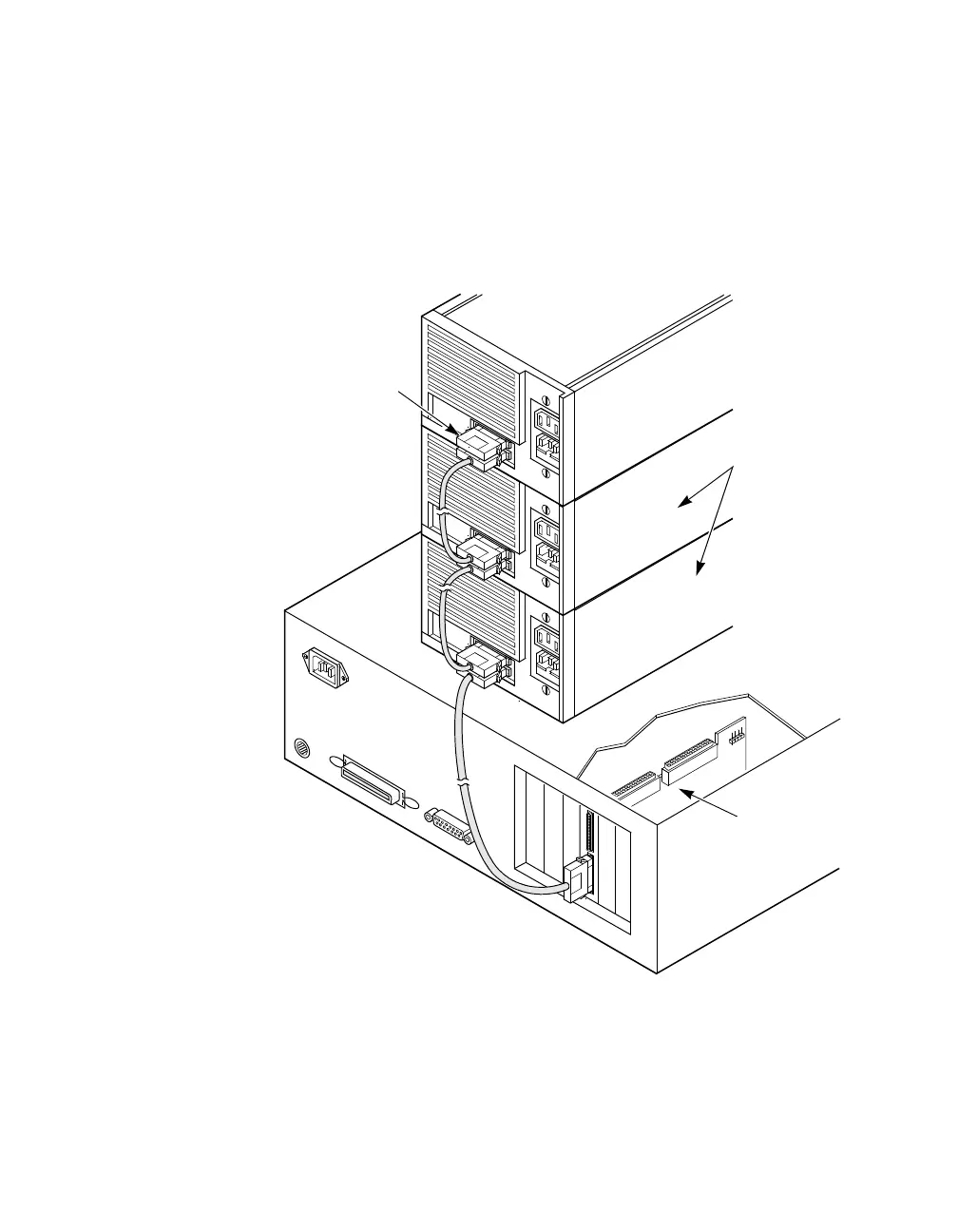

Figure 2.12 shows how to connect multiple external SCSI
devices.
Figure 2.12 Connecting Multiple External SCSI Devices
Step 4. Be sure that termination is enabled only on the last external
SCSI device, as Figure 2.12 shows. Refer to Section 2.4,
“Terminating the SCSI Bus,” on page 2-11 for details on SCSI
bus termination.
Host Adapter
Automatically
Terminated
Enable termination
on the device at the
end of the bus.
Disable
termination on all
devices not at the
end of the bus.
