S100 PROFInet Option Manual
5

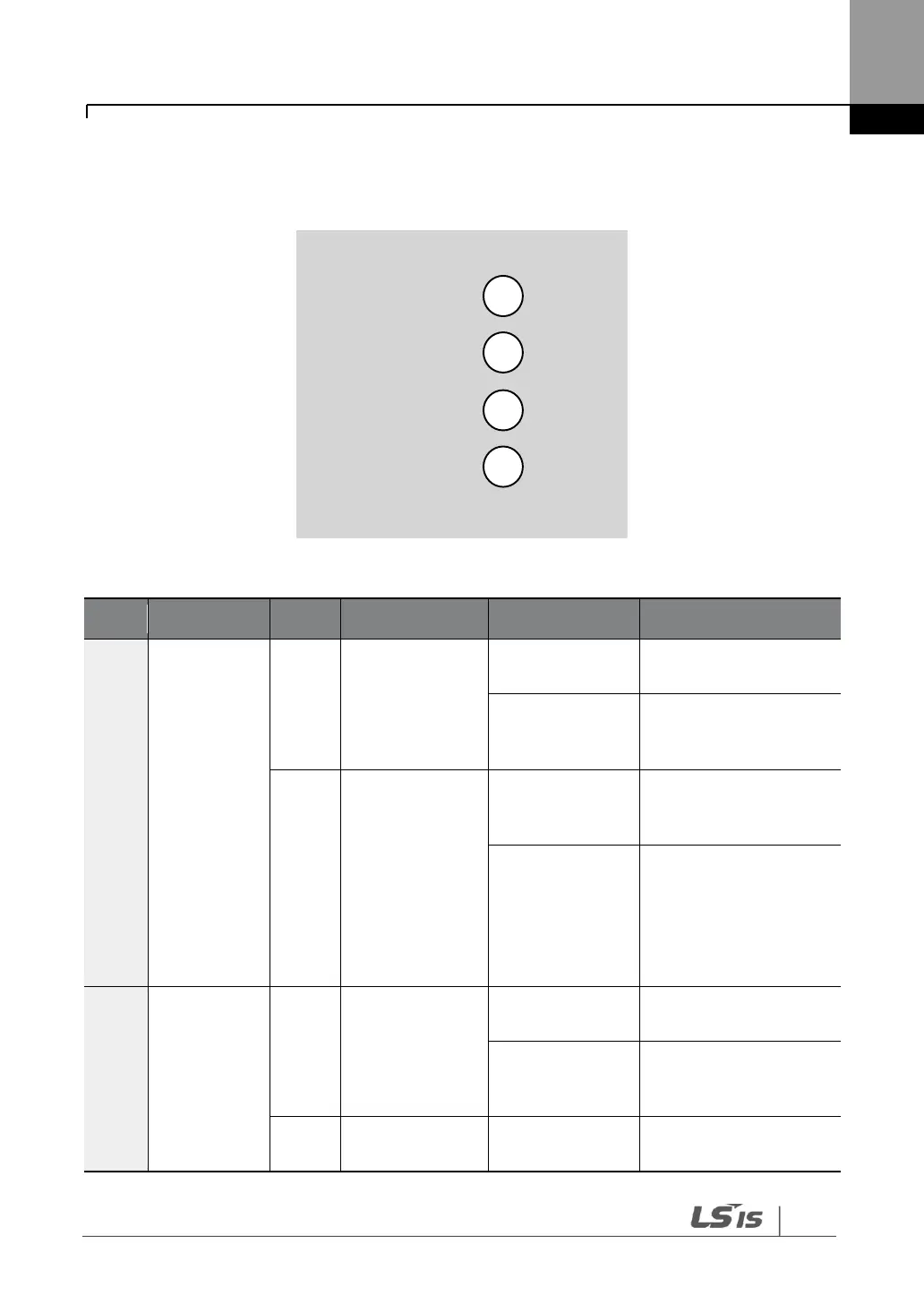

2.3 PROFInet Communication Module Front Panel
Indicator
Color
Description
Status
Remarks
LED0
LINK1/ACT1
Green
Normal
operation
ON
LINK1 is connected
to a network.
OFF
LINK1 is not
connected to a
network
Yellow
Normal
operation
OFF
Network LINK1 is not
transmitting/receiving
data
Flashing
Data transmission
between the Master
unit and the
communication
module is in progress
at network LINK1.
LED1
LINK2/ACT2
Green
Normal
operation
ON
LINK2 is connected
to a network.
OFF
LINK2 is not
connected to a
network
Yellow
Normal
operation
OFF
Network LINK1 is not
transmitting/receiving
RUN
ERROR
LINK1
LINK2
