S100 PROFInet Option Manual
7
3 Network Connections
3.1 Network Cable Contacts
Pin No.
Signal
Description
Cable Color
1
TX+
Data Transmission (+)
White/Yellow
2
TX-
Data Transmission (-)
Yellow
3
RX+
Data Reception (+)
White/Green
4
NONE
Not Used
Blue
5
NONE
Not Used
White/Blue
6
RX-
Data Reception (-)
Green
7
NONE
Not Used
White/Brown
8
NONE
Not Used
Brown

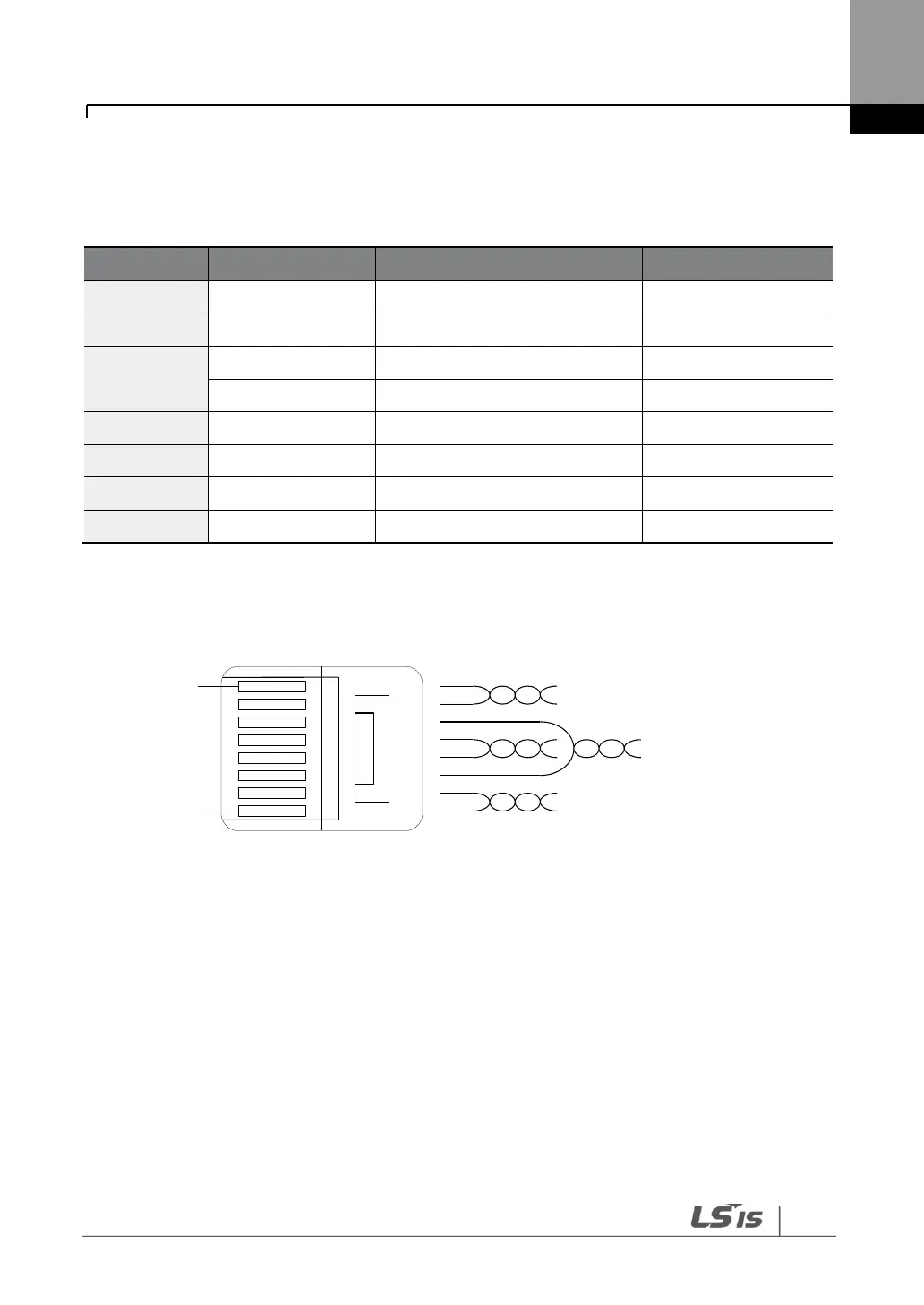

3.2 Communication Cable Connector
** Wires connected to pin #1 and pin #2 must be twisted.
** Wires connected to pin #3 and pin #6 must be twisted.
3.3 Network Cable Specification
PROFInet network communication requires STP (category 6a, or higher) network
cables.
1
8
1
2
3
4
5
6
7
8
