1-1
CHAPTER 1 - BASIC INFORMATION & PRECAUTIONS
1.1Important precautions
Unpacking and
inspection

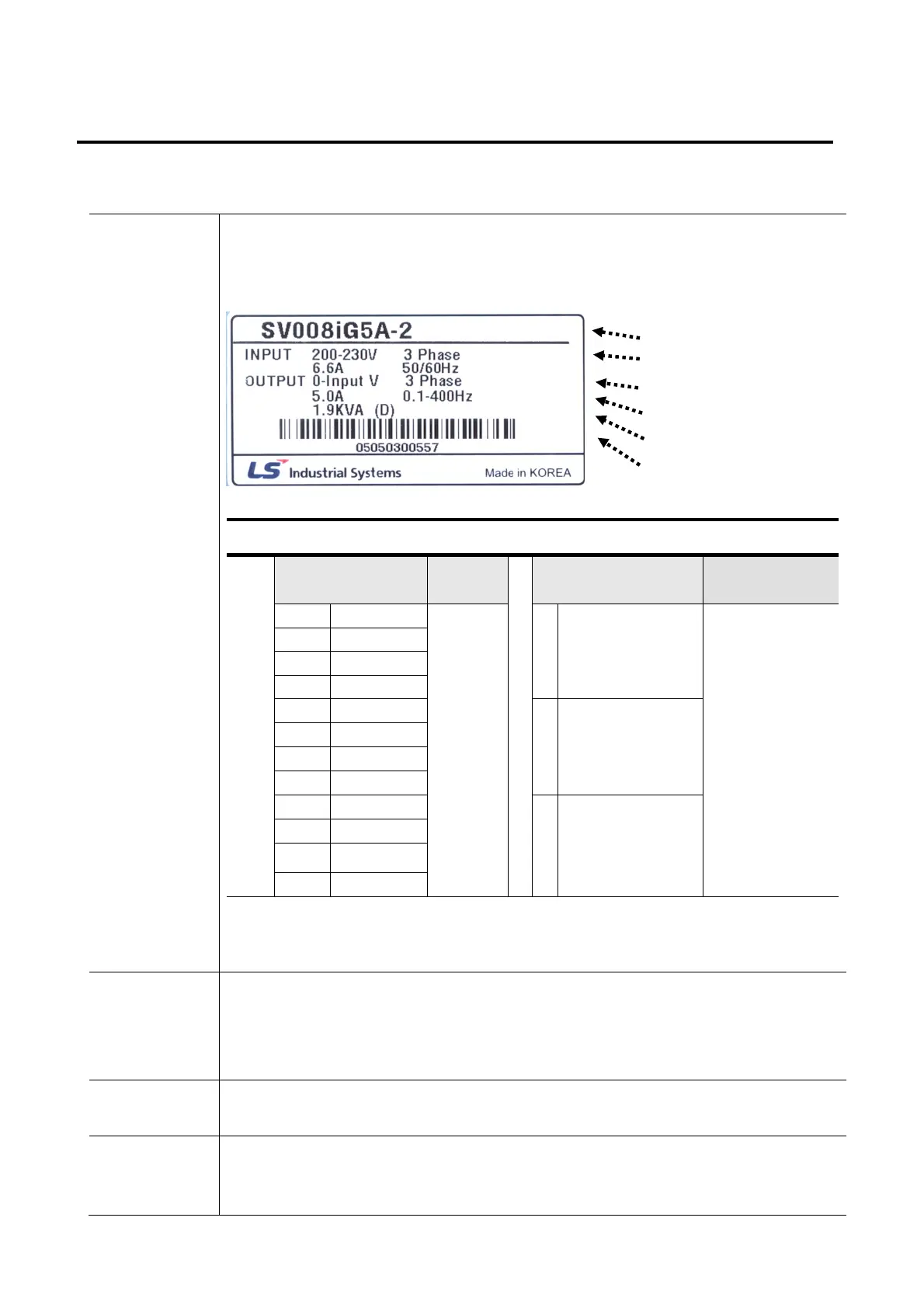

z Inspect the inverter for any damage that may have occurred during shipping.
To verify the inverter unit is the correct one for the application you need,
check the inverter type, output ratings on the nameplate and the inverter is
intact.
SV 075 iG5A - 2 (N)
LS Inverter
Motor rating
Series
Name
Input power Keypad
004 0.4 [kW]
iG5A
1
Single Phase
200~230[V]
NON loader I/O
Products
008 0.75 [kW]
015 1.5 [kW]
022 2.2 [kW]
037 3.7 [kW]
2
Three Phase
200~230[V]
040 4.0 [kW]
055 5.5 [kW]
075 7.5 [kW]
110 11.0[kW]
4
Three Phase
380~480[V]
150 15.0[kW]
185 18.5[kW]
220 22.0[kW]
z Accessories
If you have found any discrepancy, damage, etc., contact your sales
representative.
Preparations
of instruments
and parts
required for
operation
Instruments and parts to be prepared depend on how the inverter is operated.
Prepare equipment and parts as necessary.
Installation
To operate the inverter with high performance for a long time, install the inverter
in a proper place in the correct direction and with proper clearances
Wiring
Connect the power supply, motor and operation signals (control signals) to the
terminal block. Note that incorrect connection may damage the inverter and
peripheral devices
Input power rating
Inverter Type
Out
ut Power Ratin
Rated output current, frequency
Inverter Ca
acit
kVA
Bar Code and Serial Number
