4.3 Moving to other groups
z There are 4 different parameter groups in SV- iG5A series as shown below.
Drive group Basic parameters necessary for the inverter to run. Parameters
such as Target frequency, Accel/Decel time settable.
Function group 1 Basic function parameters to adjust output frequency and
voltage.
Function group 2 Advanced function parameters to set parameters for such as
PID Operation and second motor operation.
I/O (Input/Output)
group
Parameters necessary to make up a sequence using Multi-
function input/output terminal.

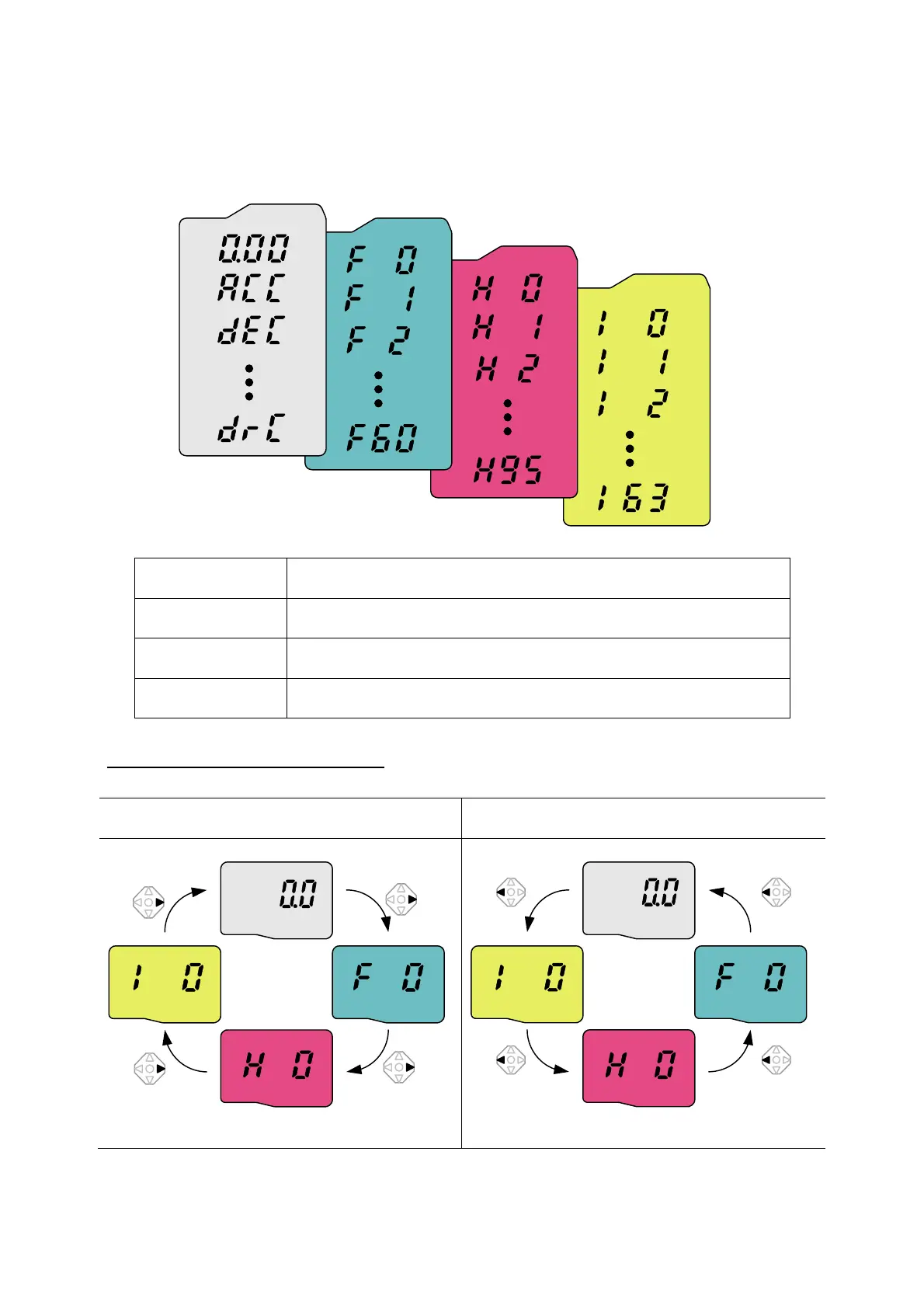

z Moving to other parameter groups
is only available in the first code of each group as the
figure shown below.
Moving to other groups using the Right (X)
key
Moving to other groups using the Left (W) key
Function
group 1
Function
group 2
I/O group
Drive group
*
Function
group 1
Function
group 2
I/O group
Drive group
*
* Target frequency can be set at 0.0 (the 1
st
code of drive group). Even though the preset value is 0.0, it is
user-settable. The changed frequency will be displayed after it is changed.
