4.5 Parameter setting
z Changing parameter values in Drive Group

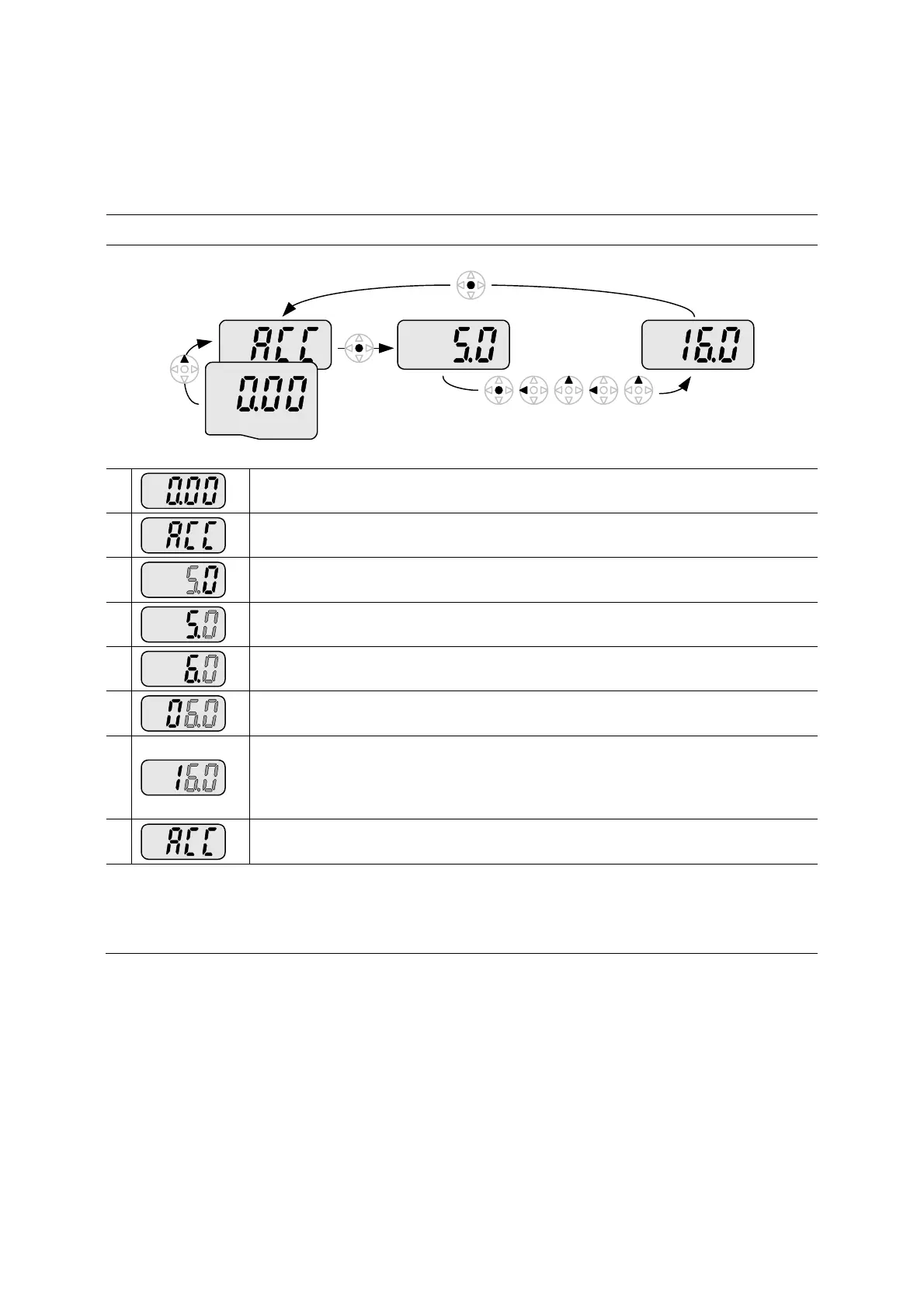

When changing ACC time from 5.0 sec to 16.0 sec
Drive group
1
-. In the first code “0.00”, press the Up (S) key once to go to the second
code.
2
-. ACC [Accel time] is displayed.
-. Press the Ent key (z) once.
3
-. Preset value is 5.0, and the cursor is in the digit 0.
-. Press the Left (W) key once to move the cursor to the left.
4
-. The digit 5 in 5.0 is active. Then press the Up (S) key once.
5
-. The value is increased to 6.0
-. Press the Left (W) key to move the cursor to the left.
6
-. 0.60 is displayed. The first 0 in 0.60 is active.
-. Press the Up (S) key once.
7
-. 16.0 is set.
-. Press the Ent (z) key once.
-. 16.0 is blinking.
-. Press the Ent (z) key once again to return to the parameter name.
8
-. ACC is displayed. Accel time is changed from 5.0 to 16.0 sec.
♣ In step 7, pressing the Left (W) or Right (X) key while 16.0 is blinking will disable the
setting.
Note 1) Pressing the Left (W)/ Right (X) /Up (S) /Down (T) key while cursor is blinking will cancel
the parameter value change. Pressing the Enter key (z) in this status will enter the value into
memory.
