Chapter 6 CPU Functions

6- 18

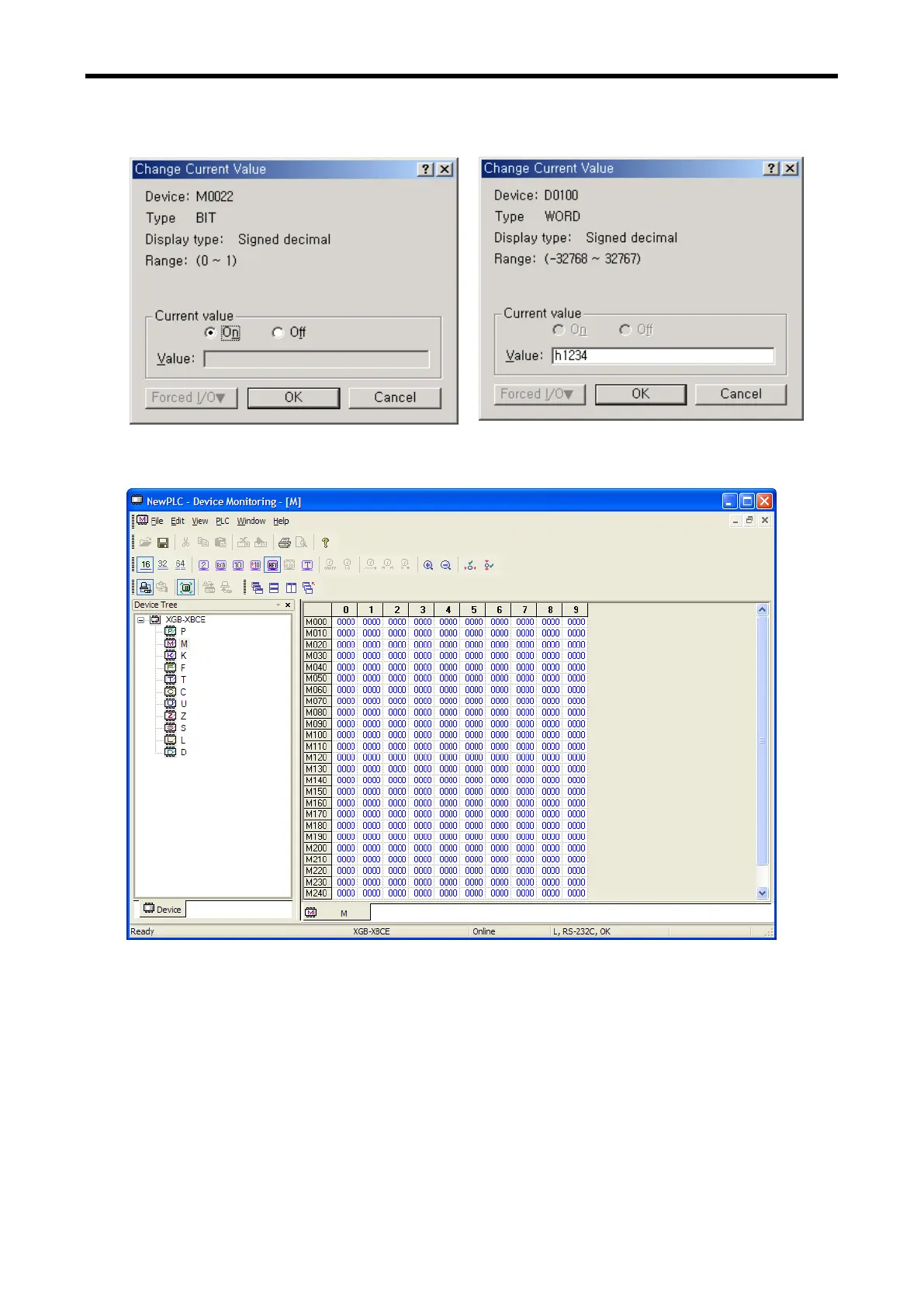

(a) Change current value

▪It changes the current value of each device selected in the current program window.

(b) Device monitoring

▪It monitors by device (type).
