Chapter 7 Input/Output Specifications
7-70

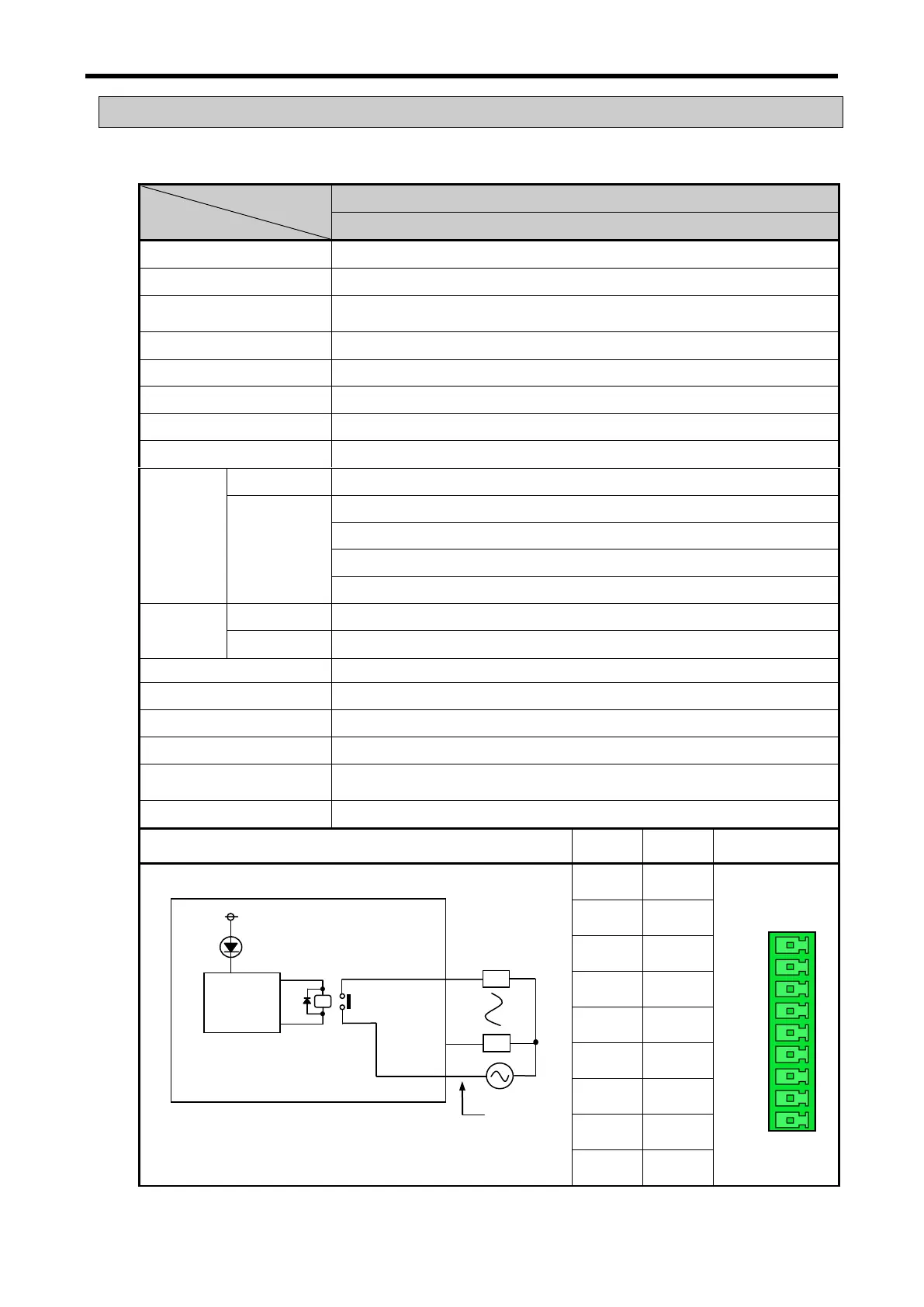

7.7 Combined Digital I/O module Output Specification
7.7.1 8 point relay output
Model
Specification
Relay output module
XBE-DR16A
Output point
8 point
Insulation method
Relay insulation
Rated load
voltage / Current
DC24V 2A(Resistive load) / AC220V 2A(COS = 1), 5A/COM
Min. load voltage/Current
DC5V / 1 ㎃
Max. load voltage
AC250V, DC125V
Off leakage current
0.1 ㎃ (AC220V, 60 ㎐)
Max. On/Off frequency
3,600 times/hr
Surge absorber
None
Service
life
Mechanical
20 millions times or more
Electrical
Rated load voltage / current 100,000 times or more
AC200V / 1.5A, AC240V / 1A (COS = 0.7) 100,000 times or more
AC200V / 1A, AC240V / 0.5A (COS = 0.35) 100,000 times or more
DC24V / 1A, DC100V / 0.1A (L / R = 7 ㎳) 100,000 times or more
Response
time
Off  On
10 ㎳ or less
On  Off
12 ㎳ or less
Common method
8 point / COM
Proper cable size
Stranded cable 0.3~0.75 ㎟ (external diameter 2.8 ㎜ or less)
Current consumption
280 ㎃ (When all inputs and outputs are on)
Operation indicator
LED on when output on
External connection
method
9 pin terminal block connector
Weight
81g
Circuit configuration
No.
Contact
Type
TB1
0
TB2
1
TB3
2
TB4
3
TB5
4
TB6
5
TB7
6
TB8
7
TB9
COM
TB1
TB2
TB3
TB4
TB5
TB6
TB7
TB8
TB9
DC5V
RY
Internal
circuit
L
Terminal
block no.
LED
TB1
TB9
L
TB8
